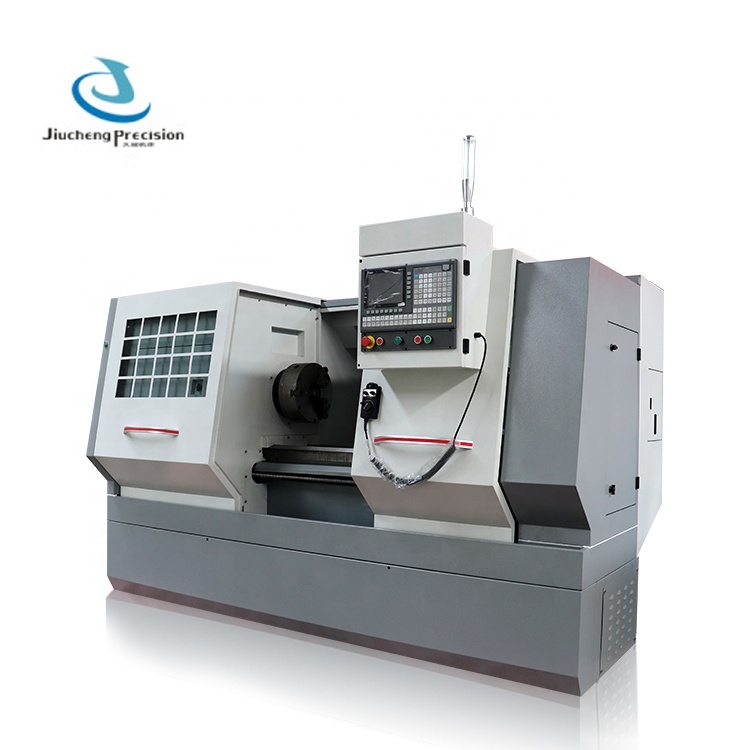

6150 cnc turning lathe machine
stars, based on 0reviews
This series of machine tools can realize the inner and outer surfaces of shafts and disks, taper surfaces, arcs, threads, boring holes, reaming, and non-circular curve processing. According to the needs of users, different CNC systems and accessories can be selected.
| SPECIFICATIONS | UNIT | CK6150B | CK6163 |
| Maximum swing over bed | mm | 500 | 630 |
| Maximum swing over cross slide | mm | 300 | 420 |
| Maximum workpiece length | mm | 1000/1500/2000 | 850/1350/1850/2850 |
| Width of bed guide rail | mm | 390 | 550 |
| X axis travel | mm | 260 | 320 |
| Z axis travel | mm | 850 | 1000/1500/2000/3000 |
| Spindle bore | mm | 82 | 105/130 |
| Spindle speed | rmp | 0~1600 | 10~100/40~400/100~850 |
| Spindle nose |
- |
D8 | A2-11 |
| Spindle motor | KW | 7.5 | 11 |
| Tailstock quill taper |
|
MT5 | MT6 |
| Tailstock quill dia. | mm | 75 | 100 |
| Tailstock quill traverse | mm | 165 | 250 |
| Positioning accuracy | mm | 0.01 | 0.02 |
| Repeatable positioning accuracy | mm | ±0.005 | 0.01 |
| Tool Post Stations |
- |
4/6 | 4/6/8/12 |
| Cutting tool shape size | mm | 25×25 | 32×32/40×40 |
| Voltage |
- |
50Hz 380V | 50Hz 380V |
| Net weight (about) | T | 2.9 | 4.7/5.2/5.7/6.5 |
| Machine dimension (L*W*H) | m | 2.59×1.4×1.8 | 3.5×2.2×2.3/ 4×2.2×2.3/ 4.5×2.2×2.3/ 5.5×2.2×2.3 |
Description of the main technical features of CNC lathe CK6150
1.1 This machine tool is a mature product designed by our company with reference to foreign advanced technology. The machine tool adopts a 45° inclined integral casting bed and a simple riveted and fully protected integrated layout. The whole machine has a compact structure, beautiful appearance, stable and reliable performance, excellent rigidity and shock absorption, which can ensure high-precision cutting, smooth chip removal, convenient loading and unloading, and easy operation.
1.2 The machine tool can complete the processing of straight lines, arcs, metric and inch threads, and multi-start threads. It can be used for turning disk and shaft parts with complex shapes and high precision requirements.
1.3 The X-axis and Z-axis guide rails of the machine tool adopt hard sliding guide rails. The machine tool is suitable for heavy turning and has good machining accuracy retention.

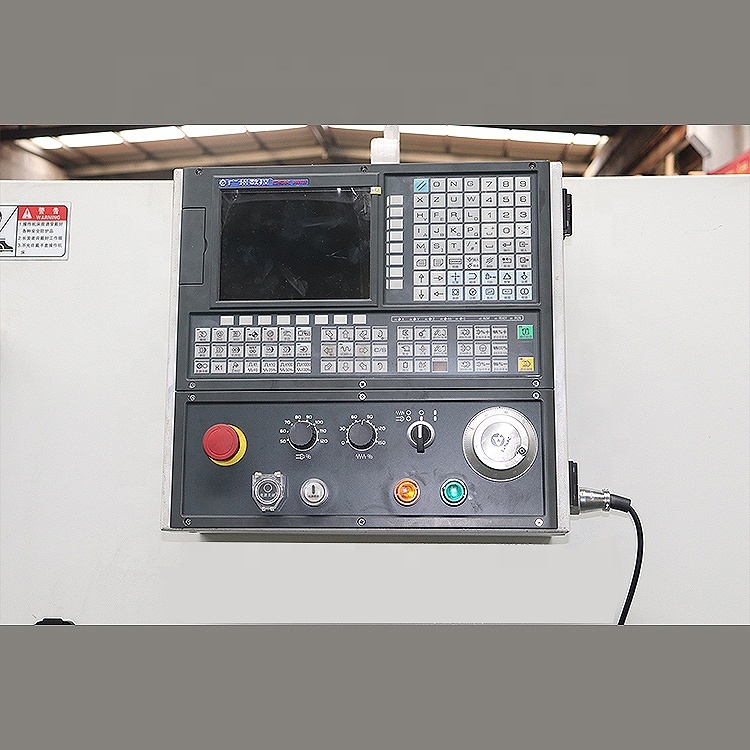

1.4 CNC system Guangshu control system + servo drive, and the spindle adopts variable frequency spindle.

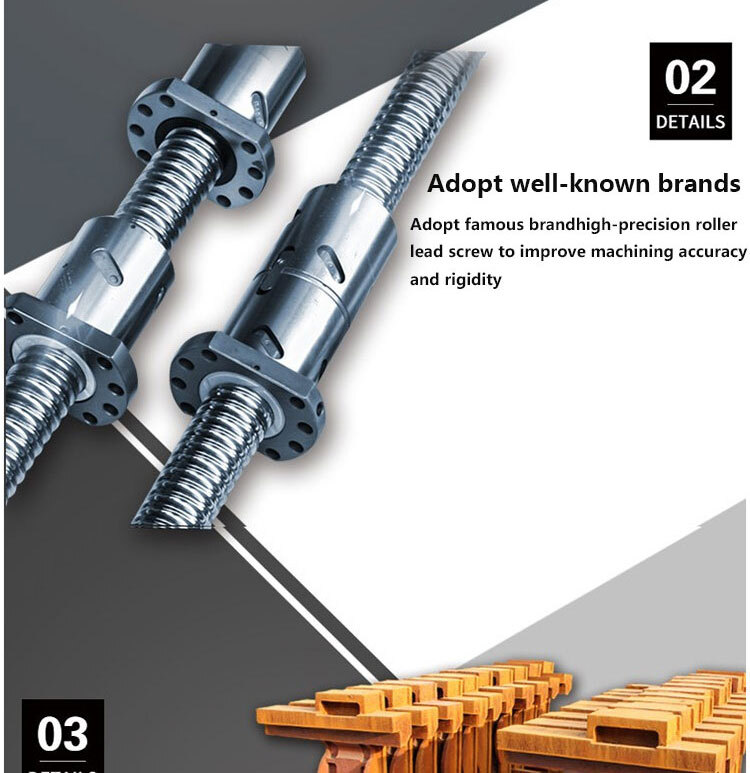

1.5 It adopts domestic famous ball screws and Japanese NSK screw bearings.
1.6 The spindle unit adopts the Japanese NSK spindle bearing group, and after precision assembly and dynamic balancing test, it ensures high spindle precision, low noise, strong rigidity, and can achieve stepless speed regulation and constant speed cutting, and start and stop quickly.
1.7 Each lubrication point adopts a forced automatic lubrication device for fixed-point quantitative lubrication. When there is an abnormal state or insufficient oil, a warning signal is automatically generated.
1.8 The machine tool adopts a four-station rotary tool holder, which can rotate forward and reverse to change the tool in a short path. The tool change speed is fast, the positioning rigidity is good, and the repeated positioning accuracy is high.
1.9 A fully enclosed protective device is used to prevent coolant and iron chips from splashing out of the machine tool.
1.10 Chip removal device is convenient for cleaning iron chips.
Precautions for danger during the operation of CK6150 CNC lathe:
l When operating the machine tool, long hair should be tied up and a work hat must be worn before working.
l The workpiece must be clamped firmly.
l The coolant nozzle must be adjusted in the shutdown state.
l Do not touch the rotating workpiece and spindle with your hands or in other ways.
l Do not open the machine tool protective door during automatic processing.
l When performing heavy-load processing, prevent the accumulation of chips, because hot chips may cause fire.
Warning:
l Do not wear gloves when operating the switch, otherwise it is likely to cause malfunctions, etc.
l The workpiece is allowed to be unloaded from the machine tool only after the tool holder and spindle stop moving.
l Do not clean the chips during turning.
l Do not open the machine tool protective door when operating the machine tool.
Note:
l When heavy workpieces need to be moved, two or more people must work together to avoid danger.
l Personnel operating forklifts, cranes or similar equipment and hooks must be trained and approved.
l Lifting cables, lifting rings, and hooks must have sufficient strength to meet the requirements of the lifting load and be strictly limited to safety regulations.
l Chips on the tool head should be cleaned with a brush, not with bare hands.
l The installation or removal of the tool should be carried out in the parking state.
l When processing magnesium alloy, the operator should wear a gas mask.
1. Preparation before installation and trial run
You need to read the instruction manual carefully. Before the trial run, the machine tool should be cleaned with a towel and cleaning oil, and then all the exterior surfaces of the machine tool should be lubricated according to regulations.
2. Installation and trial run operation
After the CNC lathe is installed, you must be very cautious before entering the trial run. The trial run time is about 1 hour, and a large load test run should not be used during the entire trial run. Run the machine tool from low speed to high speed, and check the movement of each component of the CNC lathe. If there is no abnormality, it can be put into normal operation. 1. CNC lathe quality standard
1. Take strict implementation of relevant industry standards as the quality bottom line, establish enterprise standards that are higher than the standards, and each product is accepted by the company's quality inspection department and the machine tool purchasing customer files are archived and preserved.
2. Fully implement ISO9001:2000 and ISO14001:2004 quality management system and environmental management system to ensure product quality and ensure that the product acceptance rate is 100% under normal transportation conditions.
3. Achieve quality commitments, let customers feel at ease and satisfied using our company's products, and strive to achieve customer satisfaction of more than 99%.
2. Product after-sales guarantee
1. Product quality is strictly in accordance with JB/T8324.1-1996 "National Standard Machine Tool Precision Inspection"; JB/T8324.2-1996 "Industry Standard Technical Inspection". And conscientiously perform according to the terms of the contract;
2. The products provided by our company have a warranty period of 1 year, and quality problems during the warranty period will be repaired free of charge. Repairs beyond the warranty period will only charge material costs, and lifelong maintenance.
3. All products are accompanied by labels and certificates;
4. All provinces and cities have established professional pre-sales and after-sales services to provide users with professional technical advice and professional after-sales guarantees at any time;
5. During the installation and commissioning of products or accessories, if there is a problem, we will deal with the problem first and then divide the responsibility.
III. Product delivery guidelines
1. Strictly follow the contract provisions, fulfill the delivery time limit, ensure the integrity of the equipment provided, and ensure that customers install and use it as scheduled;
2. Strictly follow the contract provisions, specify the delivery location and delivery method, and ensure the safety of the goods;
3. Regardless of the order quantity, our company promises to complete the supply task with quality and quantity;
IV. Customer service guidelines
1. Provide customers with free product installation guidance and personnel training;
2. Establish customer files and regularly visit customers who use the products;
3. Establish a complete pre-sales, in-sales, and after-sales service network and implement fast services. Solve the technical difficulties or other problems encountered by users during the use of products, so that customers do not have to worry about the use of equipment;
Standard configurations:
GSK CNC controller
4-station turret/tool post
Manual chuck
Manual tailstock
Lighting system
Cooling system
Automatic lubrication system
Optional configurations:
Siemens, FANUC, KND, Syntec, Mitsubishi CNC controller
6/8 station turret/tool post

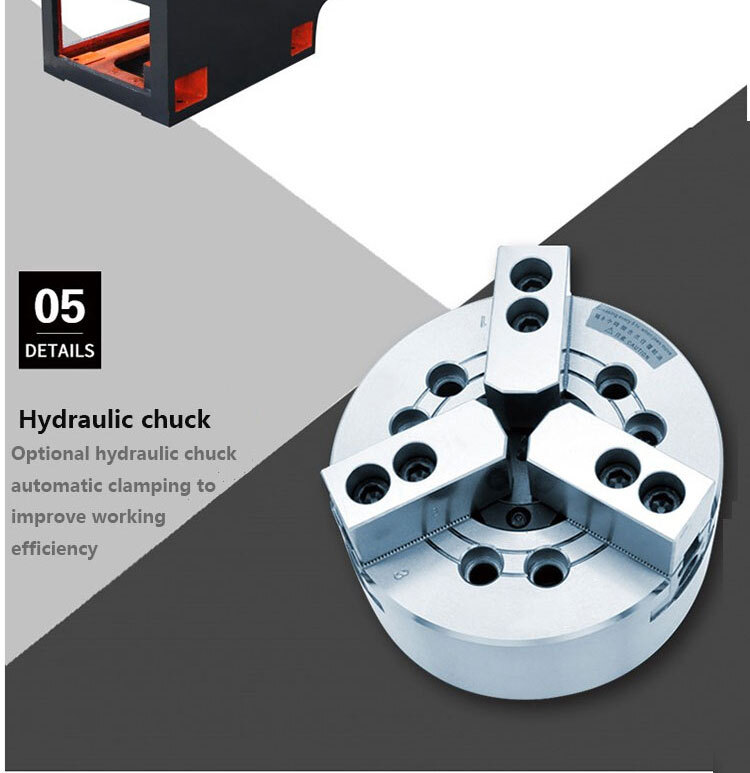

Hydraulic tailstock or pneumatic tailstock
Hydraulic chuck or pneumatic chuck
Chip conveyor
Bar auto-feeding
Q: What is the minimum order quantity (MOQ)? A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines? A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms? A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss. Q: Where is your factory located? A: Our factory is located in Tengzhou, Shandong province, China. Q: What's the main products of your company? A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage? A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service. Q: What is the package? Is it suitable for shipment? A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
