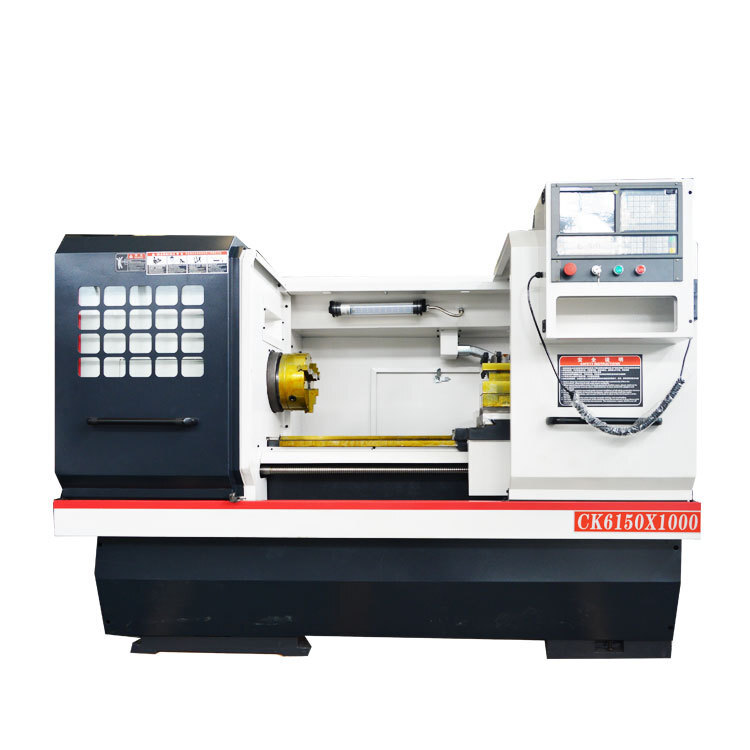

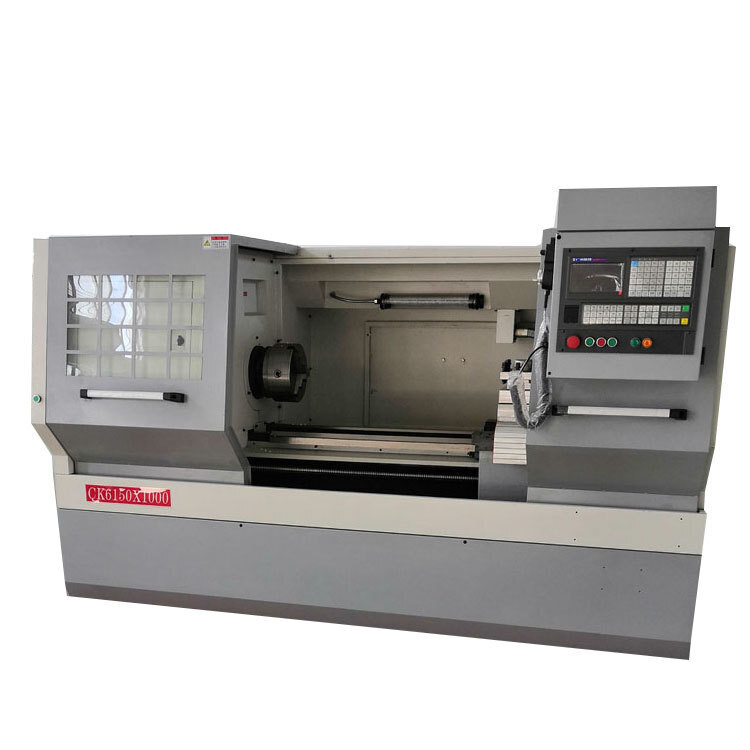

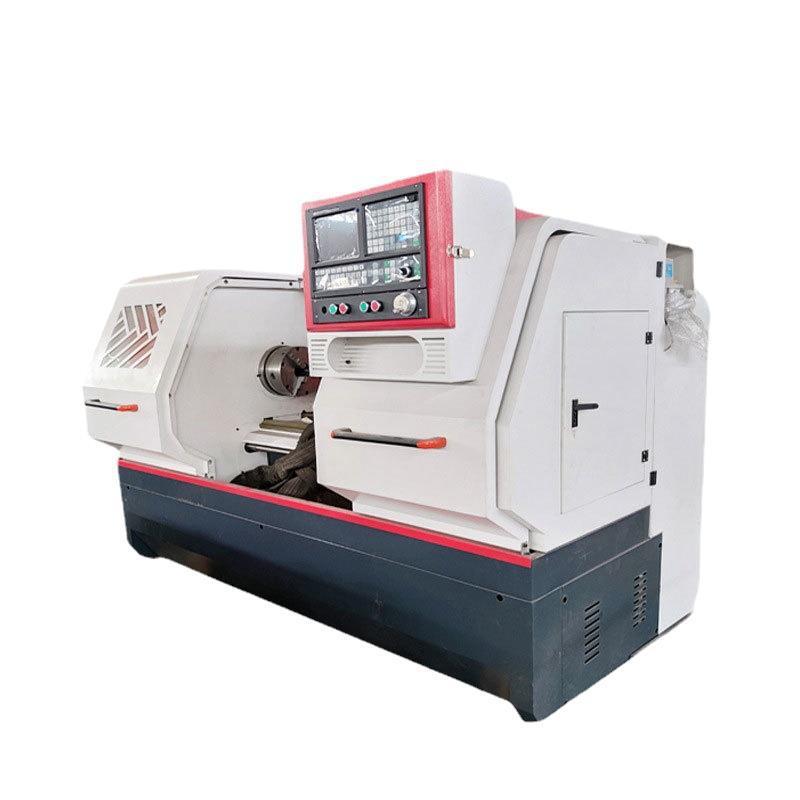

6150 cnc turning lathe machine
stars, based on 0reviews
6150 cnc turning lathe machine Technical parameters
| SPECIFICATIONS | UNIT | CK6150B |
| Maximum swing over bed | mm | 500 |
| Maximum swing over cross slide | mm | 300 |
| Maximum workpiece length | mm | 1000/1500/2000 |
| Width of bed guide rail | mm | 390 |
| X axis travel | mm | 260 |
| Z axis travel | mm | 850 |
| Spindle bore | mm | 82 |
| Spindle speed | rmp | 0~1600 |
| Spindle nose |
- |
D8 |
| Spindle motor | KW | 7.5 |
| Tailstock quill taper |
|
MT5 |
| Tailstock quill dia. | mm | 75 |
| Tailstock quill traverse | mm | 165 |
| Positioning accuracy | mm | 0.01 |
| Repeatable positioning accuracy | mm | ±0.005 |
| Tool Post Stations |
- |
4/6 |
| Cutting tool shape size | mm | 25×25 |
| Voltage |
- |
50Hz 380V |
| Net weight (about) | T | 2.9 |
| Machine dimension (L*W*H) | m | 2.59×1.4×1.8 |

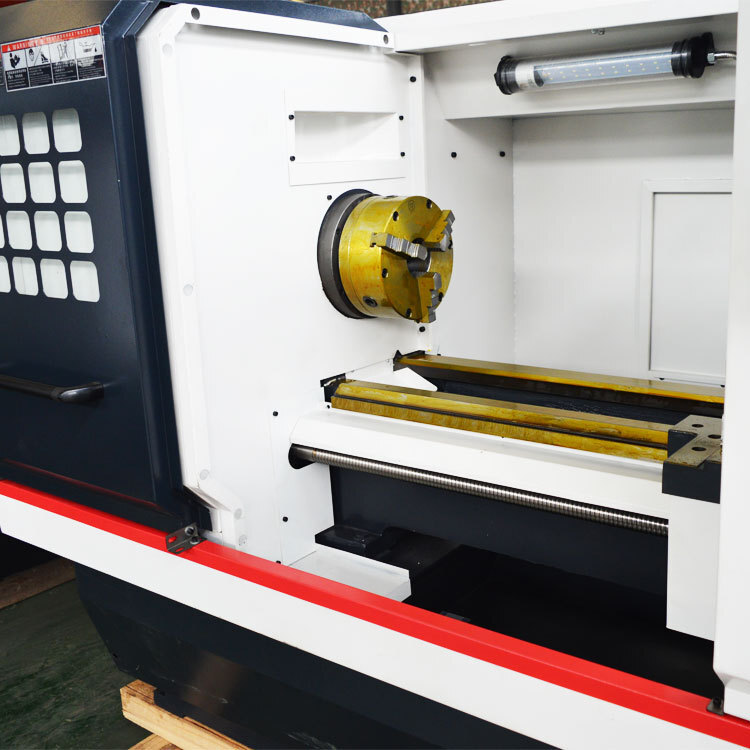

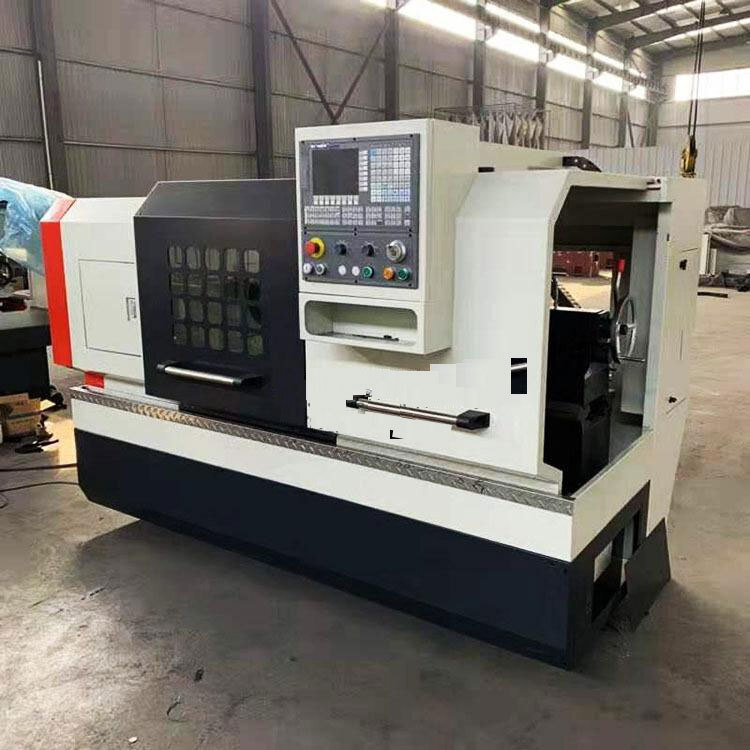

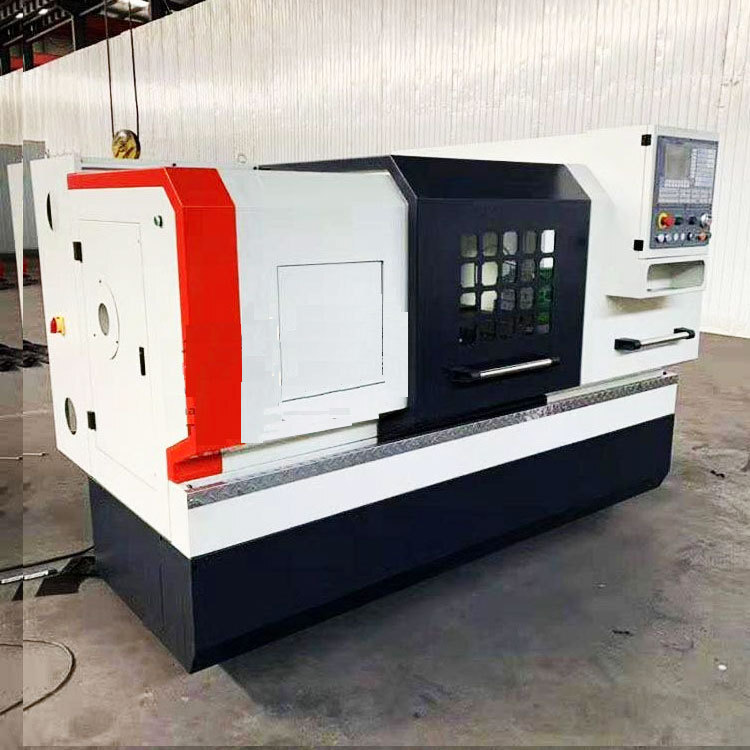

6150 cnc turning lathe machine Detailed introduction
The 6150 cnc turning lathe machine adopts the traditional horizontal lathe layout, overall design, good sealing, and meets safety standards. The main basic parts such as the bed and bed legs are all made of resin sand casting, artificial aging treatment, and the stability of the whole machine is excellent.
CNC lathe with microcomputer control and servo motor drive. It has the characteristics of easy operation, compact structure, beautiful appearance, stable performance, high precision and low noise.
The longitudinal and transverse motion axes of the machine tool adopt a semi-closed loop control system driven by a servo motor, precision ball screw pair, high-rigidity precision composite bearing transmission, and pulse encoder position detection feedback. The guide rail pair adopts the internationally popular high-frequency quenching (hard rail) plus "plastic pasting" process, and each motion axis has fast response, high precision and long life.
The appearance protection design of the machine tool follows the international trend, with a novel and unique shape, waterproof, anti-chip, and easy maintenance; it reflects the characteristics of the times.
The machine tool operating system follows the principle of ergonomics, and the control box is independently and rotatably set, which can be moved to any position, which is convenient for the operator to set the tool nearby, which is the embodiment of humanized design.
The joint surface of the bed saddle and the slide rail is treated with "plastic coating", and the moving parts can achieve micro-feeding to prevent creeping.

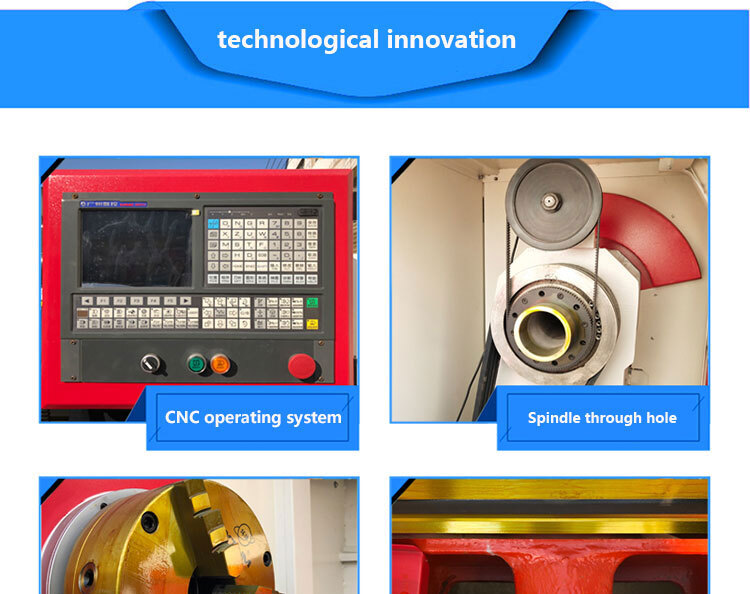

The machine tool adopts a high-performance HNC-21T CNC system, which controls the servo motor, the spindle of the lathe, the brake and the indexing tool holder by sending and receiving signals.
The independent spindle controls the speed of the variable frequency motor through the inverter to achieve stepless speed change, and the feed speed can be set arbitrarily, thereby realizing automatic processing controlled by a microcomputer.
The machine tool can be operated in automatic and manual modes, with semi-automatic tool setting, tool compensation and clearance compensation functions, and is equipped with hardware and software limit functions.

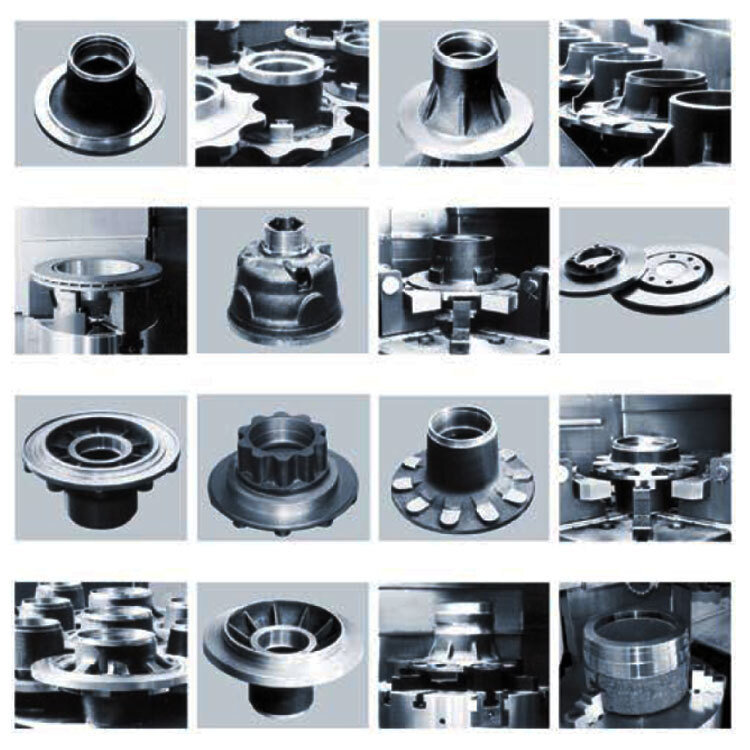

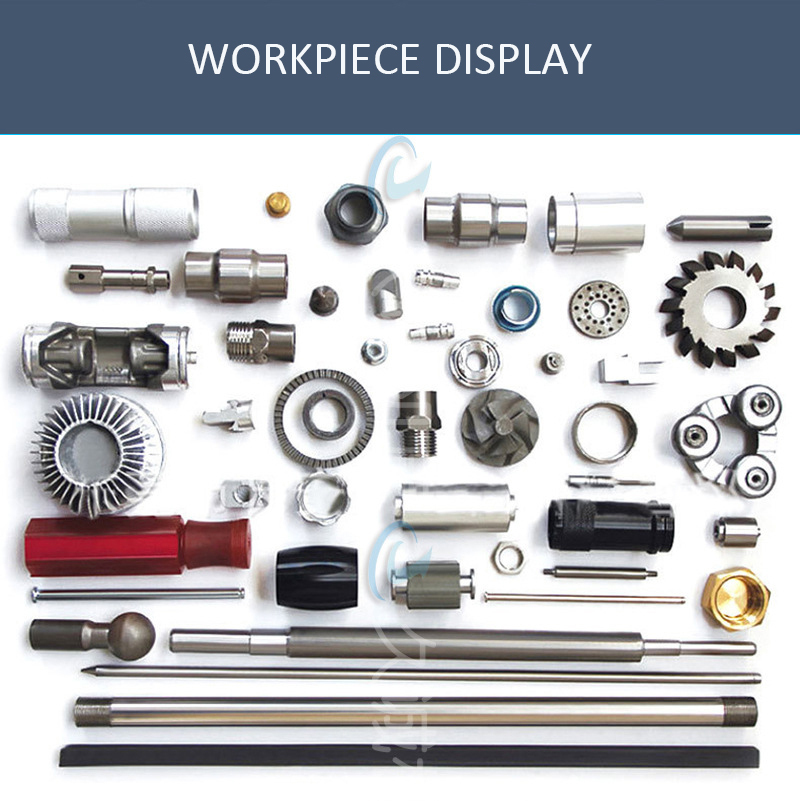

The machine tool can process internal and external cylindrical surfaces, conical surfaces, arc surfaces, grooving, cutting, and can also process British straight threads, tapered threads, etc. The lathe can be equipped with hydraulic chucks, hydraulic tailstocks, etc. according to user requirements, and other CNC systems can also be selected according to user requirements. The machine tool is configured with fully enclosed protection
1. Preparation before installation and trial run
It is necessary to read the instruction manual carefully. Before the test run, the machine tool should be cleaned with a towel and cleaning oil, and then all the exterior surfaces of the machine tool should be lubricated according to regulations.
2. Installation and test run operation
After the CNC lathe is installed, you must be very cautious before entering the test run. The test run time is about 1 hour, and a large load test run should not be used during the entire test run. Run the machine tool from low speed to high speed, and check the movement of each component of the CNC lathe. If there is no abnormality, it can be put into normal operation.
Our company is a professional CNC lathe manufacturer. The company's quotation is a unified quotation. Relevant supporting manufacturers, such as bearings, gears, spindles, electrical appliances, motors, etc. are supplied by well-known domestic manufacturers, which ensures the quality of the products. The cost is also relatively high. Our company's products are of high quality and price, with high cost performance, and no false price components! The quotation includes the price of commissioning training and one-year warranty!

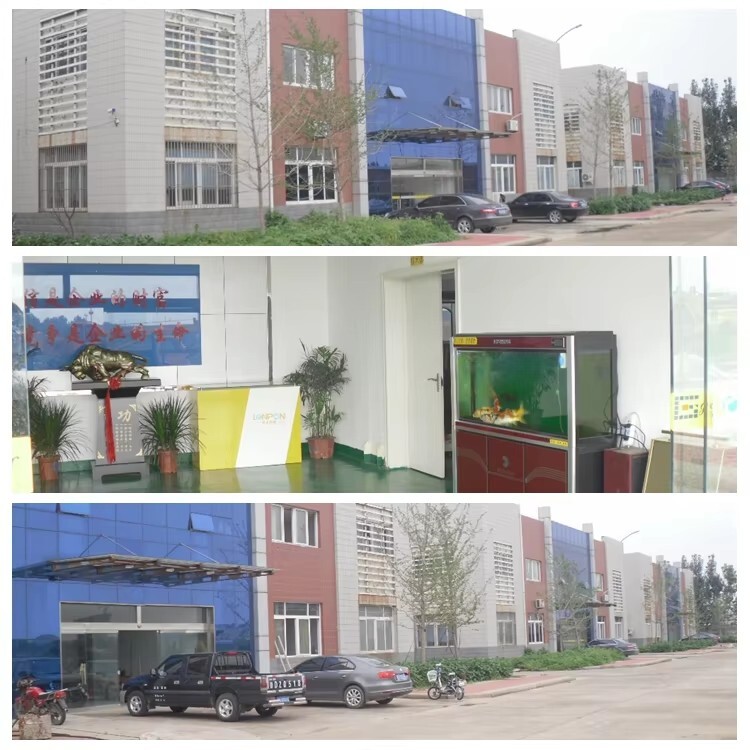

Q: What is the minimum order quantity (MOQ)? A: MOQ is one set. (Only some low cost machines will be more than 1 set) Q: How can I choose the most suitable machines? A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions. Q: What's the Payment Terms? A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss. Q: Where is your factory located? A: Our factory is located in Tengzhou, Shandong province, China. Q: What's the main products of your company? A: We specialized in many kinds of machines, such as Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, CNC Milling Machine, CNC Vertical Machining center and so on. Q: What is your market advantage? A: We provide not only machine tools, but one-stop solutions for machine tools. Q: What is the package? Is it suitable for shipment? A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
- Type:
- Horizontal
- Max. Length of Workpiece (mm):
- 1000
- Structure:
- Flat Bed Lathe
- Machining Capacity:
- Medium Duty
- Max. Weight of Workpiece(kg):
- 200
- Width of bed (mm):
- 400 mm
- No. of Spindles:
- Single
- Number of Axes:
- 2
- Travel (X Axis)(mm):
- 300 mm
- Travel (Z Axis)(mm):
- 1000 mm
- Positioning Accuracy (mm):
- ±0.001
- Repeatability (X/Y/Z) (mm):
- ±0.001
- Place of Origin:
- China
- Dimension(L*W*H):
- 2400*1500*1650
- Brand Name:
- jiucheng
- Model Number:
- CK6150
- Voltage:
- 380
- CNC Control System:
- GSK
- Tool Post Stations:
- 4
- Weight (KG):
- 2000
- Warranty:
- 4 years
- Key Selling Points:
- Multifunctional
- Machinery Test Report:
- Not Available
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- Range of Spindle Speed(r.p.m):
- 40 - 1600 r.p.m
- Cutting torque:
- 40 N.m
- Item No.:
- 6150b
- Use:
- Metal cutting
- Control System:
- GSK
- Control mode:
- Semi-closed loop control
- movement mode:
- Point position linear control
- Spindle speed range:
- 1800
- Processing size range:
- 1000
- Number of tools:
- 4
- Layout form:
- horizontal
- Classification of CNC machine tools:
- CNC lathe
