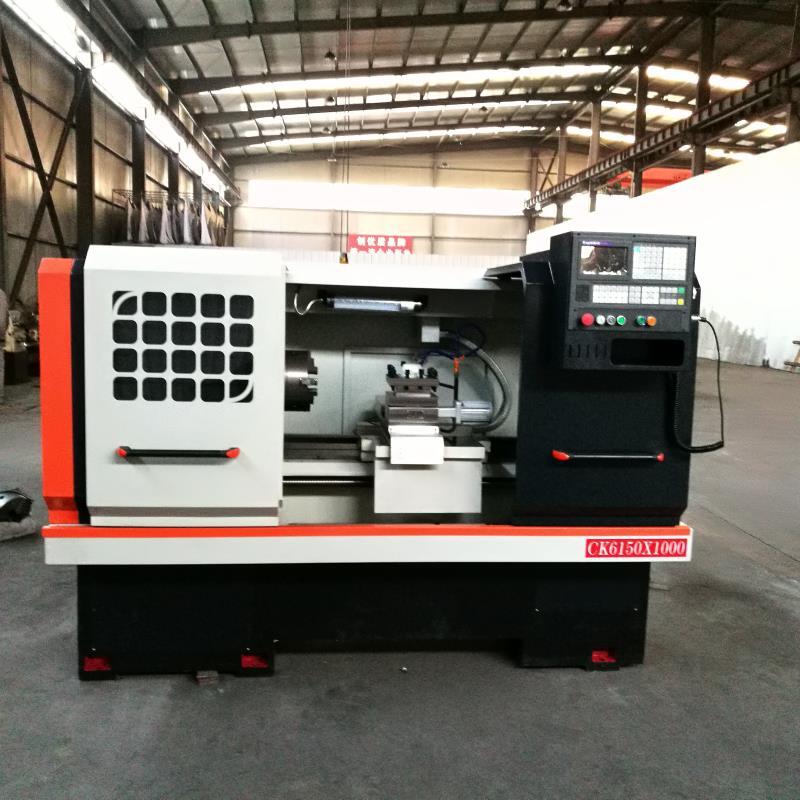

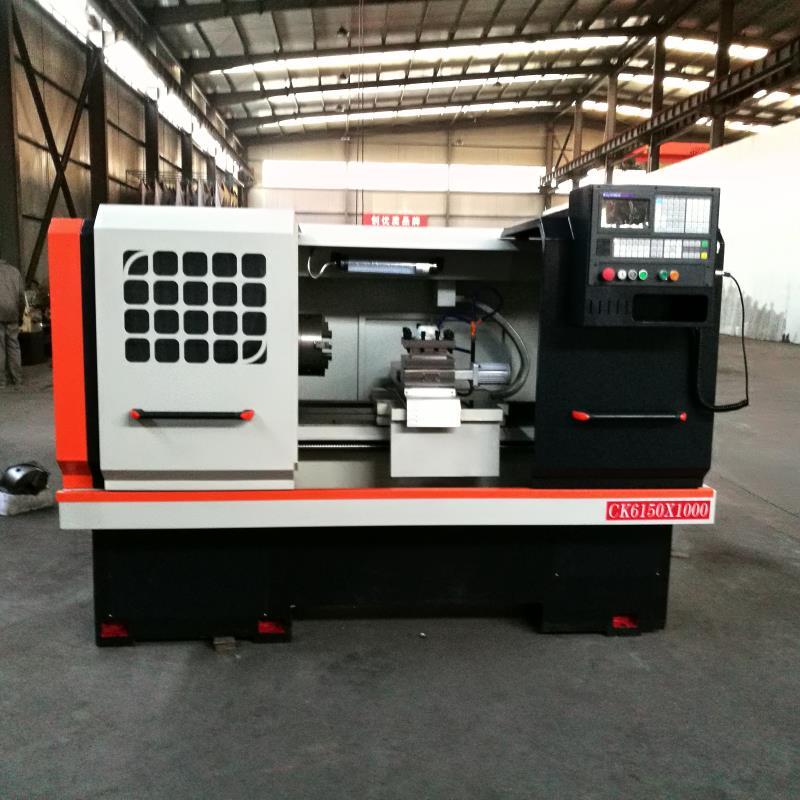

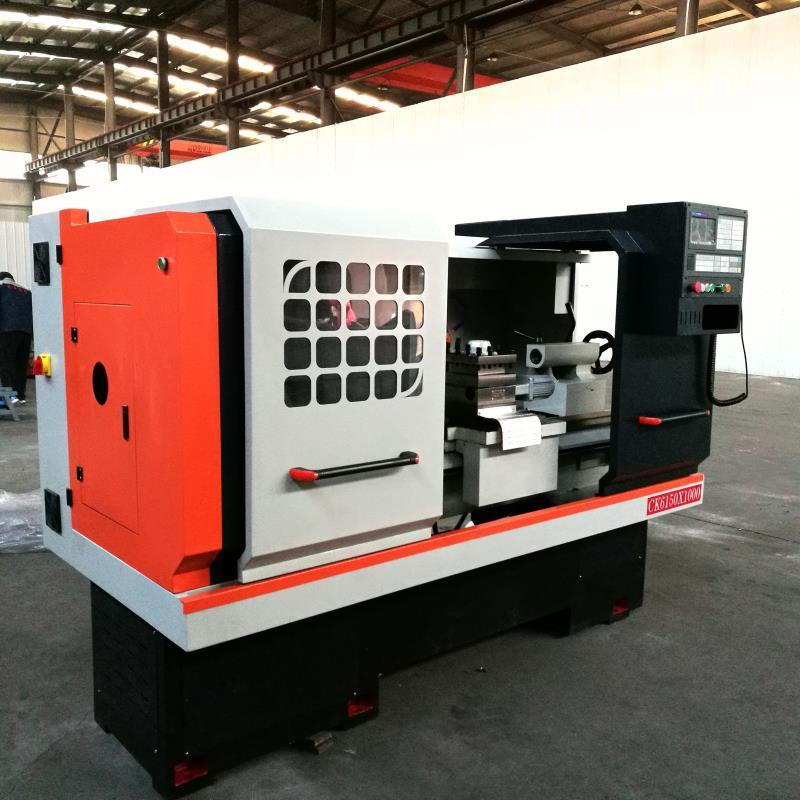

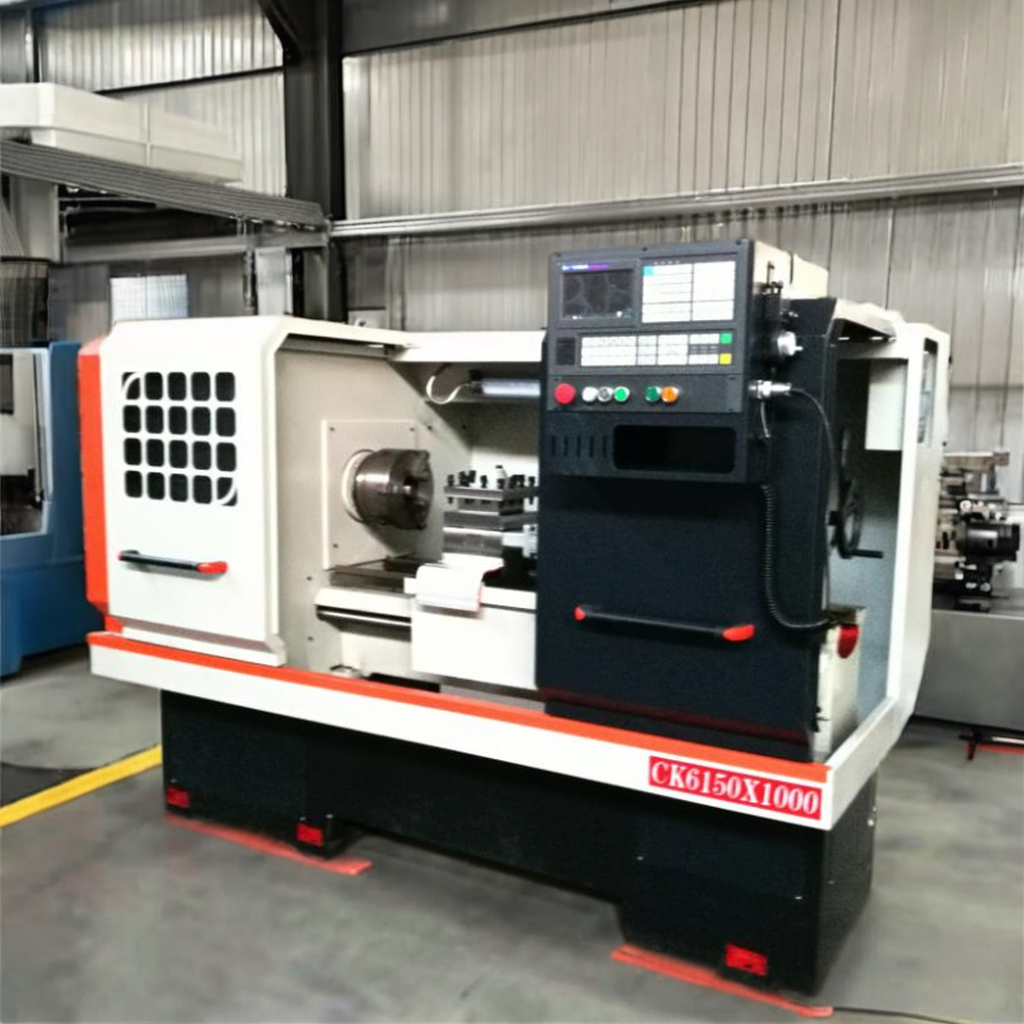

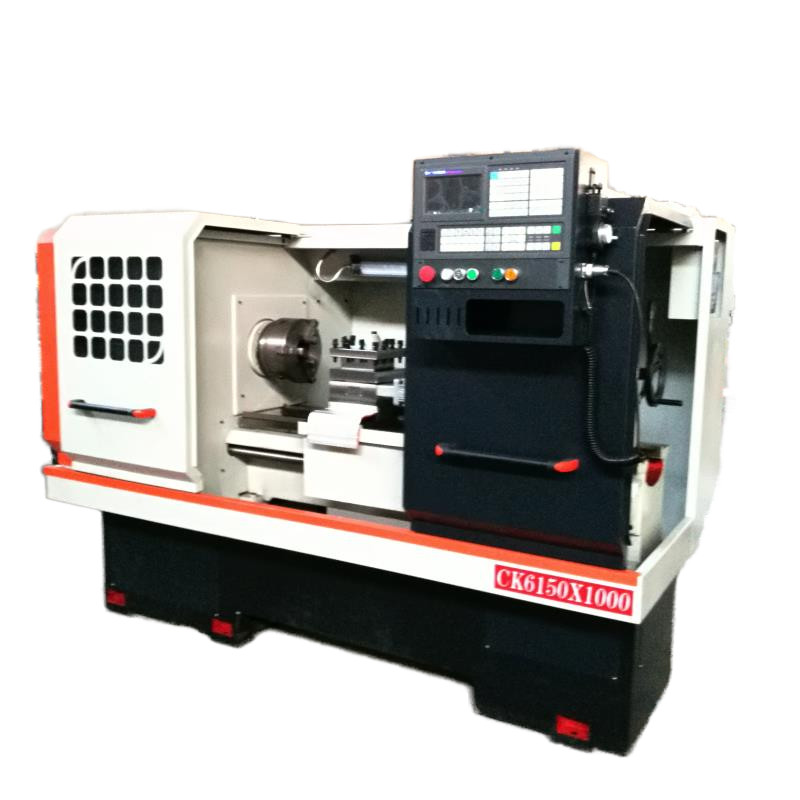

CAK6150 cnc torno machine

stars, based on 0reviews

Max. Swing Diameter (mm)

Spindle Motor Power(kW)

Product Tag:

CAK6150 cnc torno machine Technical parameters

Item	CK6140	CK6150A
Max. swing dia. over bed	Φ400mm	Φ500mm
Max. swing dia. over cross slide	Φ245mm	Φ280mm
Processing length	750/1000mm	750mm/1000mm/1500mm
Width of the bed	330mm	400mm
Diameter of spindle bore	Φ60mm	Φ82mm
Spindle taper	MT6	1:20/Φ90
Spindle nose	A2-6	Type of spindle head D-8
Spindle speed	200-2500rpm	150-2000rpm
Chuck size	250mm	250mm
Tool holder	4 station	4 station
Tool bar section	25X25mm	25X25mm
Main motor power	5.5KW	7.5KW
X/Z axis position accuracy	0.02/0.025mm	0.02/0.025mm
X/Z axis repeatability	0.01/0.012mm	0.01/0.012mm
X/Z axis torque	5/7.5N.M	6/10N.M
X/Z axis fast feeding speed	6/8 M/MIN	8/10 M/MIN
Tailstock sleeve travel	120mm	150mm
Tailstock taper	MT4	MT5
Dimension	2320/257014001700mm	2410/2660/316015601730mm
Weight	1800/2000KG	2800/3200/3500KG

CAK6150 cnc torno machine Detailed introduction

CK6150-750 CNC flat lathe is a domestically advanced product manufactured with foreign technology, meeting the needs of centering and CNC lathes. The strength, dynamic and static stiffness, mechanical structure, protection, cooling, etc. of the whole machine are designed according to the turning center. It is a full-function CNC machine tool with high rigidity, high precision, excellent precision retention, high production efficiency, good operation convenience, beautiful appearance, and ideal anti-three-leakage effect. The machine tool adopts a high-strength cast iron bed base structure, inclined guide rails, and a high-precision through-hole spindle structure with good seismic resistance. The machine tool is equipped with a multi-station turret tool holder for tool change nearby. The machine tool is equipped with a GSK CNC system to realize two-axis control of the machine tool. It can turn various internal and external cylindrical surfaces, conical surfaces, arc surfaces, various threads, and perform drilling, expansion, reaming, rolling and boring processing, etc.

1. Structural form and technical features of key and important components

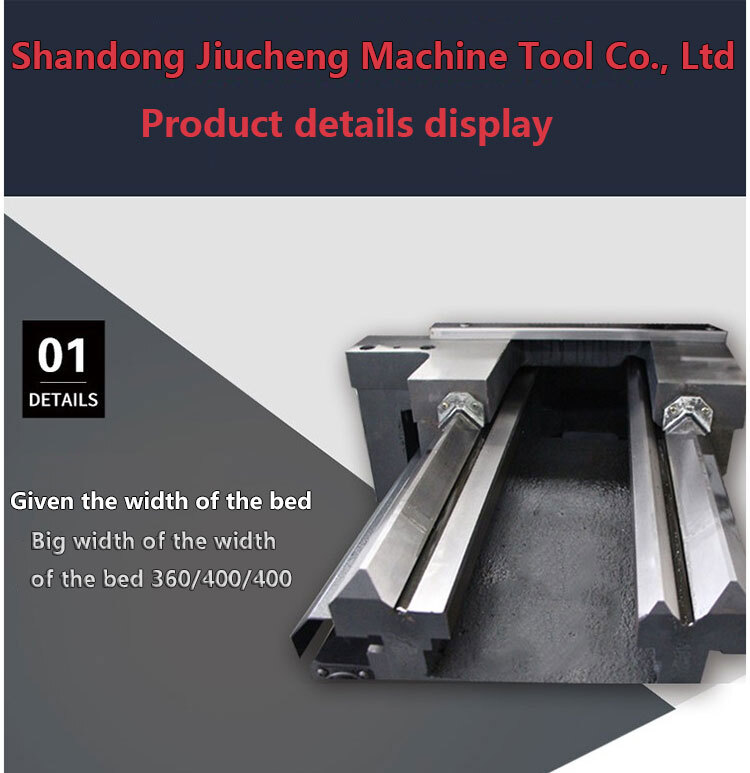

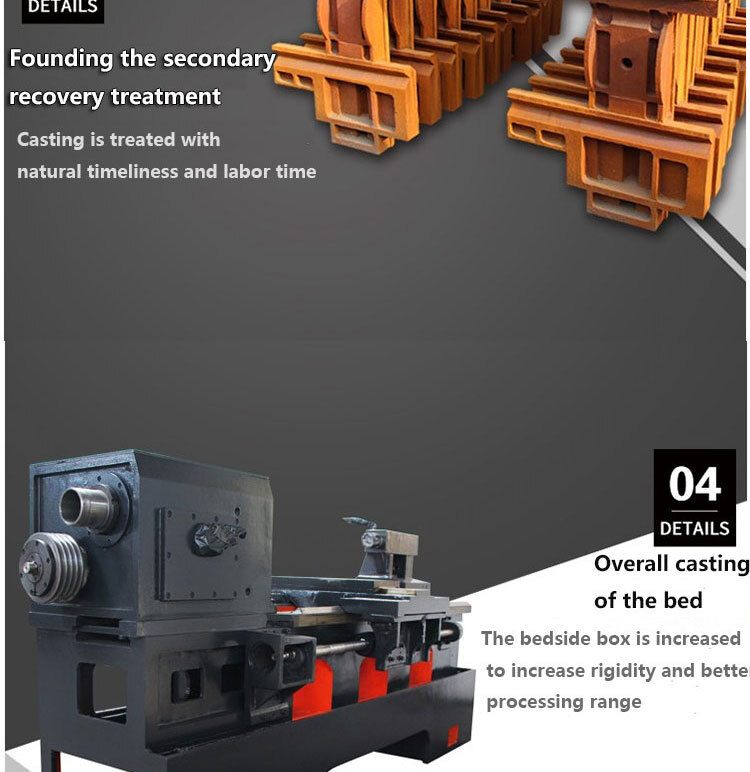

1. The bed and base are integrally structured, high-strength cast iron casting, wide bed and foot, inclined bed layout, with high stability and rigidity; the guide rails are imported roller linear guides to ensure the stability of the machine tool for long-term use

2. The bed saddle and slide plate are high-strength cast iron castings, and the guide rail pair is imported linear guide rails, with low dynamic and static friction, and fast movement can reach 20m/min in the X direction and 24m/min in the Z direction. The bed saddle and slide plate have a large span, suitable for heavy-duty cutting with large loads.

3. The spindle adopts, or adopts a high-speed spindle unit assembly, which can achieve high-speed and high-precision machining. The spindle can be equipped with a C-axis indexing function, which can switch between position mode and speed mode. The diameter precision angular contact thrust ball bearing and double-row cylindrical roller bearing are arranged in combination, and the 15KW powerful spindle servo motor drives the spindle with a transmission ratio of 1:3, which has excellent rigidity and high torque at low speed.

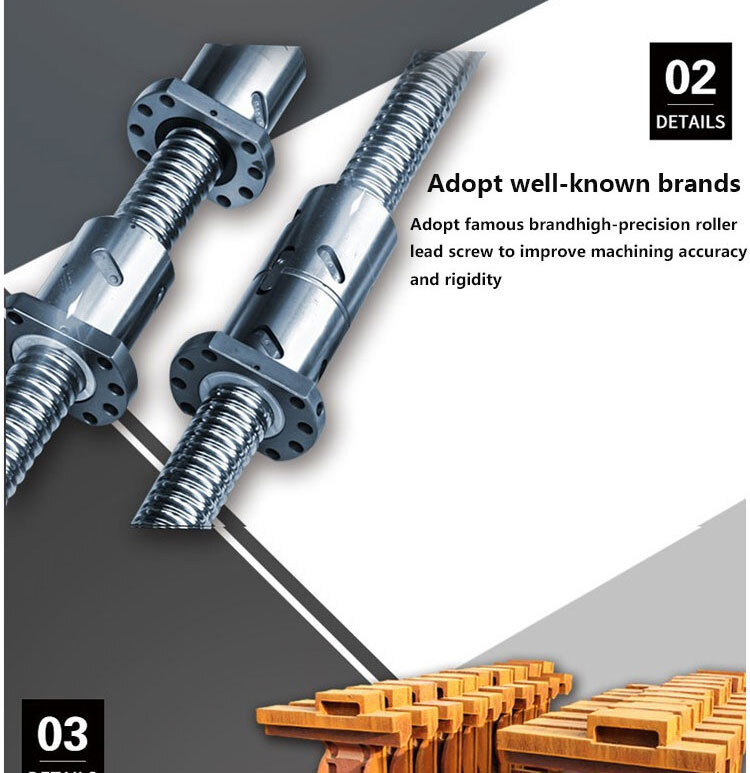

4. The X and Z axis ball screws adopt a pre-stretched internal circulation nut structure, and the screw support bearings use ball bearings with a contact angle of 60° for screws, which can withstand high axial loads and ensure the rigidity and precision of the feed transmission device.

5. The tool holder adopts a 12-station liquid tool turret, which can perform multi-process turning.

6. The machine tool electrical unit cabinet has good sealing performance and is equipped with an electrical cabinet air conditioner to ensure that the CNC system works normally under high temperature and high humidity environments.

7. The machine tool focuses on the design of edge technology and has reliable protection. During strong cutting and high-pressure spraying of coolant, there is no iron filings or coolant splashing outside the machine tool.

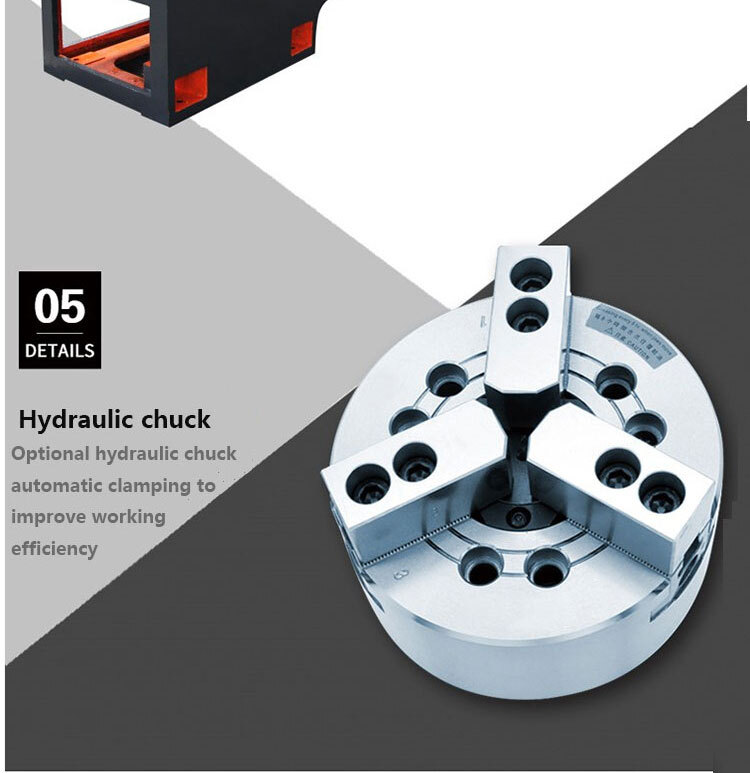

8. The clamping and loosening of the hydraulic chuck can be controlled by foot, which is convenient and fast.

9. The hydraulic pressure adjustment adopts panel-type rotary knob operation, dial display, and safe and convenient adjustment.

10. The machine tool has a novel appearance design and convenient panel operation. Combining its high power, high precision, high performance and other characteristics, this series of machine tools is undoubtedly the most powerful product among similar models.

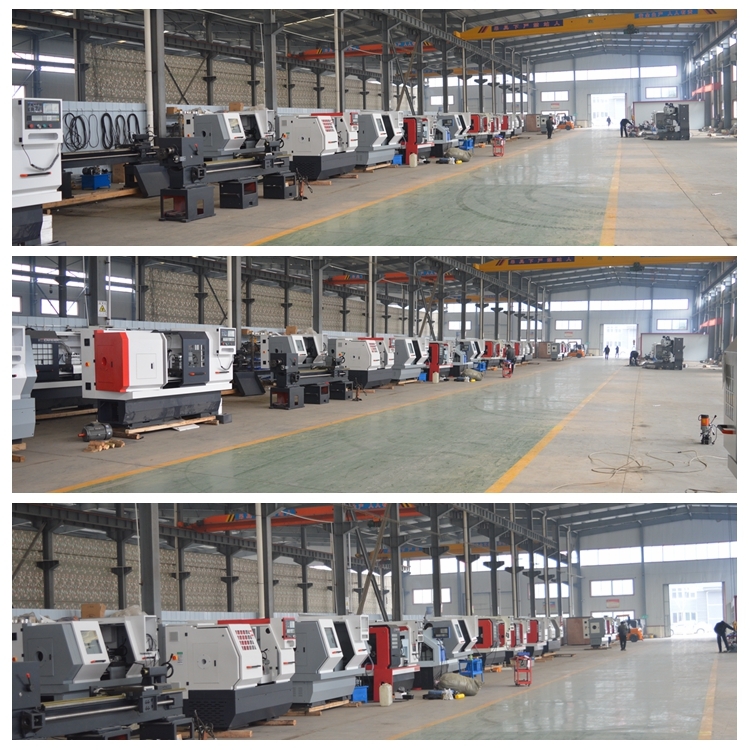

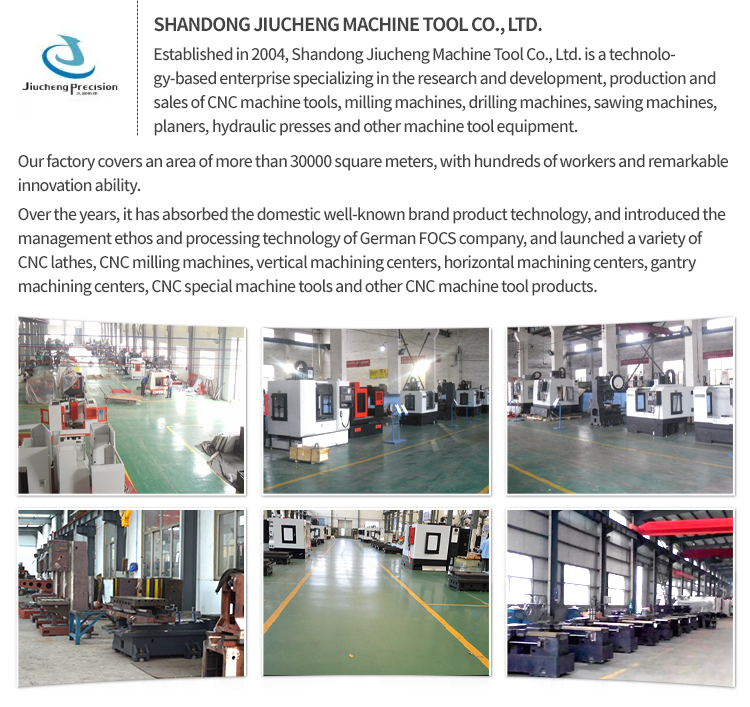

CAK6150 cnc torno machine Workshop scene
