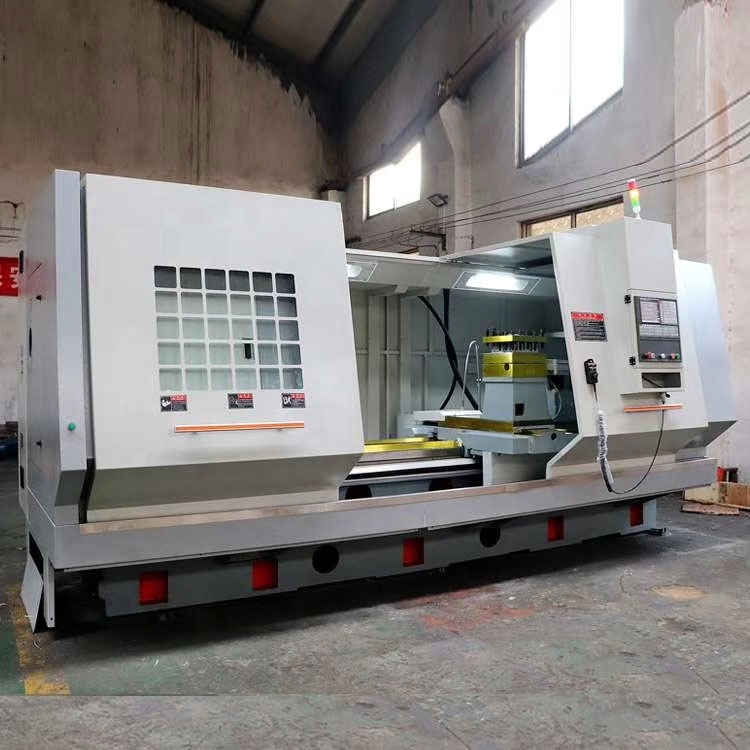

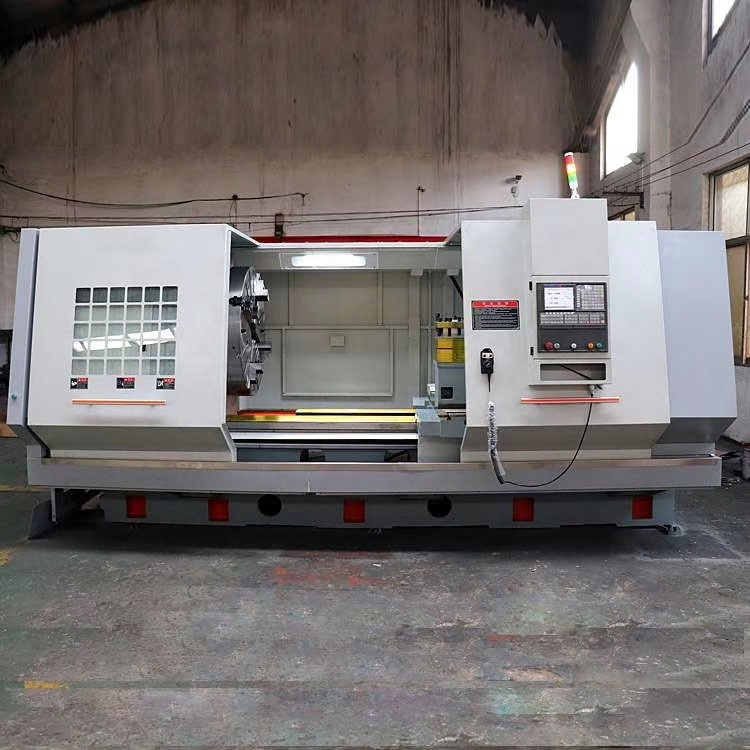

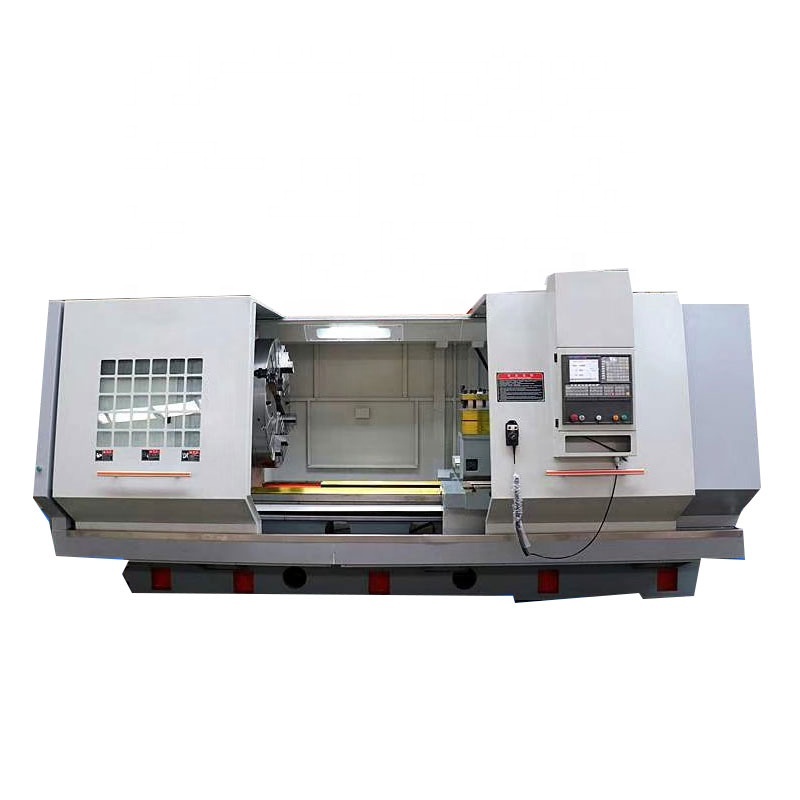

CK6163 cnc turning machine

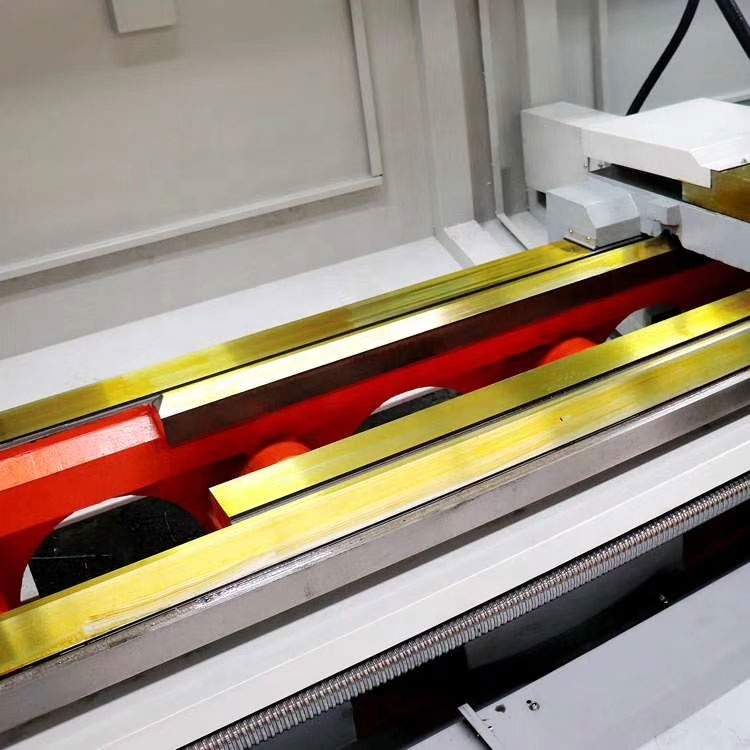

The bed material of CK6163 CNC turning machine is HT300 cast iron, which is artificially aged to eliminate residual stress and stabilize the bed precision. The guide rail is supersonic quenched to improve its wear resistance. After the large slide and workbench are pasted with wear-resistant guide rails, they are scraped and installed to ensure the vertical and horizontal feed accuracy and wear resistance. The manufacturer learned that there are many types of fully automatic CNC lathes, but they are generally composed of bed, CNC device and servo system. In addition to some economical CNC lathes that basically maintain the traditional layout of ordinary lathes, most CNC lathes are actually designed and produced according to special needs.

CK6163 cnc turning machine

1. Spindle The turning accuracy of the spindle of the CNC lathe has a direct impact on the machining accuracy of the parts; its power and speed affect the machining efficiency, and its synchronous operation, automatic speed change and directional accurate stop requirements affect the automation degree of the lathe. The headstock has a step-by-step automatic speed regulation function, and the transmission mechanism inside the headstock is greatly simplified. The mechanism of mechanical transmission speed change and direction change no longer exists, and its headstock has become synonymous with "bearing seat" and "lubrication box". For the modified CNC lathe, its original headstock is basically retained.

2. The guide rail of the CNC lathe is an important part of the feed motion accuracy. When the fully automatic CNC lathe feeds at low speed, it greatly affects the rigidity, accuracy and stability of the lathe, which is one of the important factors affecting the quality of part processing. In addition to some CNC lathes that still use traditional sliding guide rails, plastic guide rails have been widely used in CNC lathes for stereotyped production. This new type of sliding guide rail has a small friction coefficient, good wear resistance, corrosion resistance and shock absorption, and good lubrication.

3. The mechanical transmission mechanism has been greatly simplified on the basis of the original ordinary lathe transmission chain, except for the gear transmission mechanism of the headstock. For example, the speed change gearbox, feed box, carriage box and most of its transmission mechanisms are cancelled, only the spiral transmission mechanism for longitudinal and lateral feed is retained, and a gear pair is added between the drive motor and the lead screw to eliminate its side clearance.

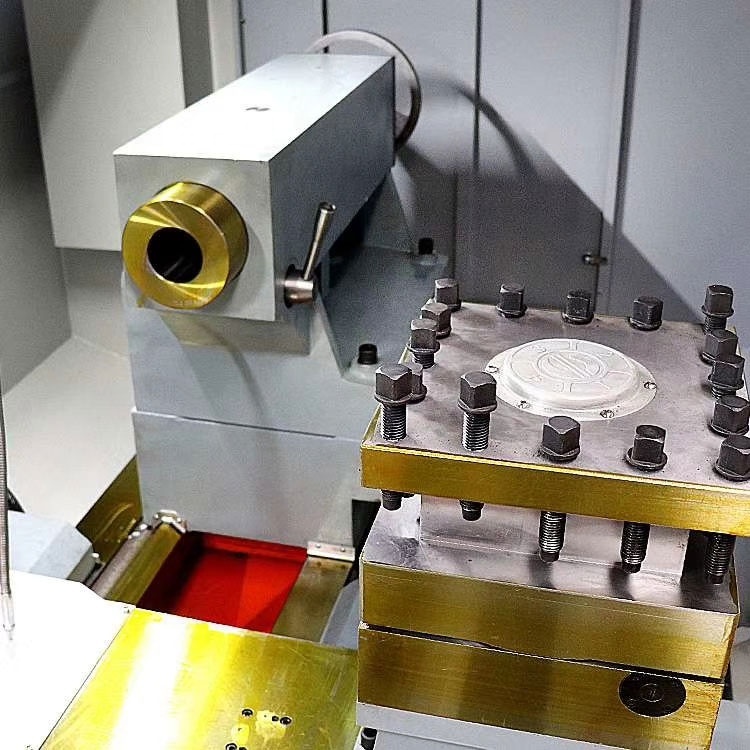

4. Automatic CNC lathes generally have automatic indexing tool holders with fixed tool positions, and some lathes also have various forms of double tool holders.

5. The detection feedback device is an important part of the CNC lathe, and plays an important role in processing accuracy, production efficiency and degree of automation. It includes displacement and workpiece size detection devices.

6. Tool setting device Except for a few special CNC lathes, almost all automatic CNC lathes use various forms of automatic indexing tool holders for multi-tool turning.

This series of machine tools can realize the inner and outer surfaces of shafts and disks, taper surfaces, arcs, threads, boring holes, reaming, and non-circular curve processing. According to the needs of users, different CNC systems and accessories can be selected.

CK6163 cnc turning machine Technical parameters

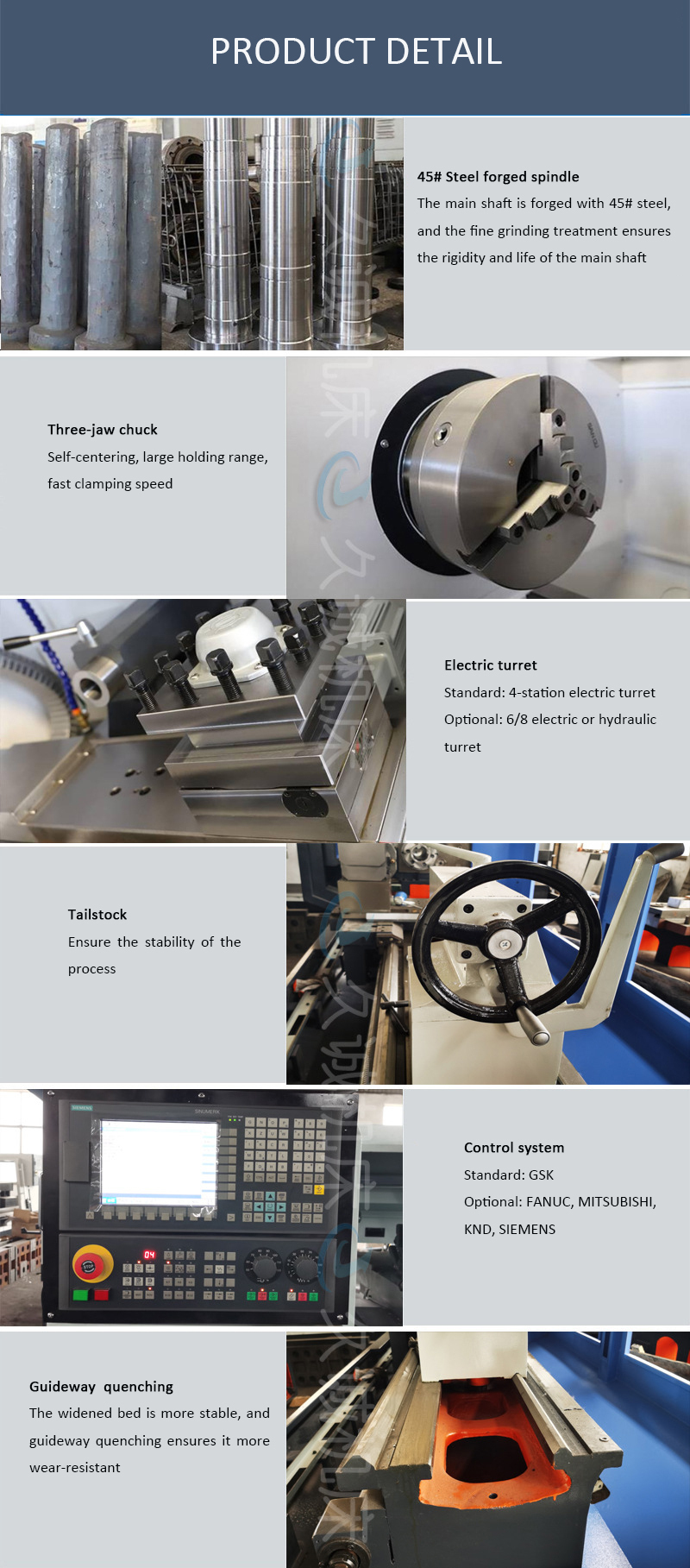

CK6163 cnc turning machine Standard configurations:

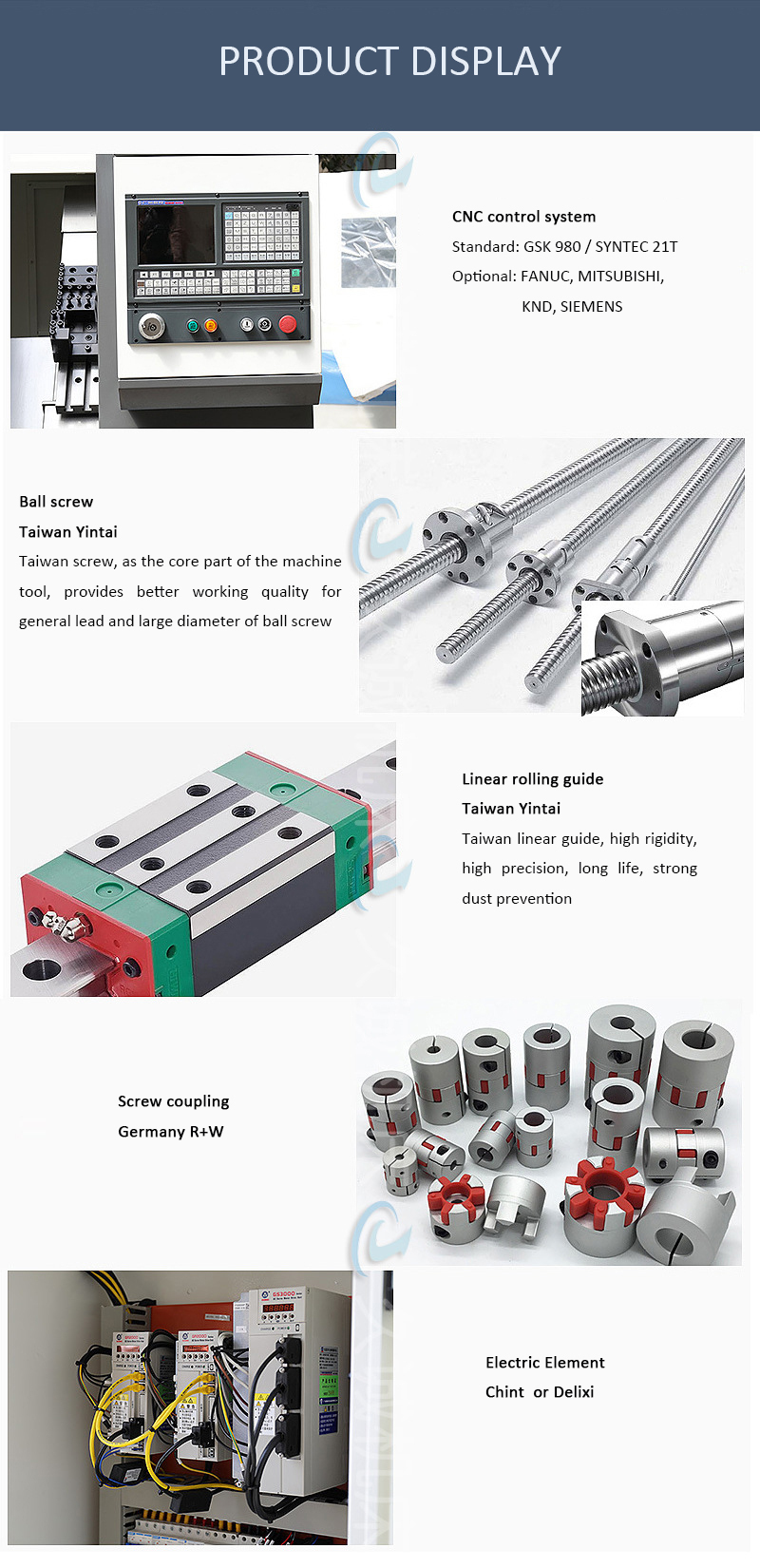

GSK CNC controller

4-station turret/tool post

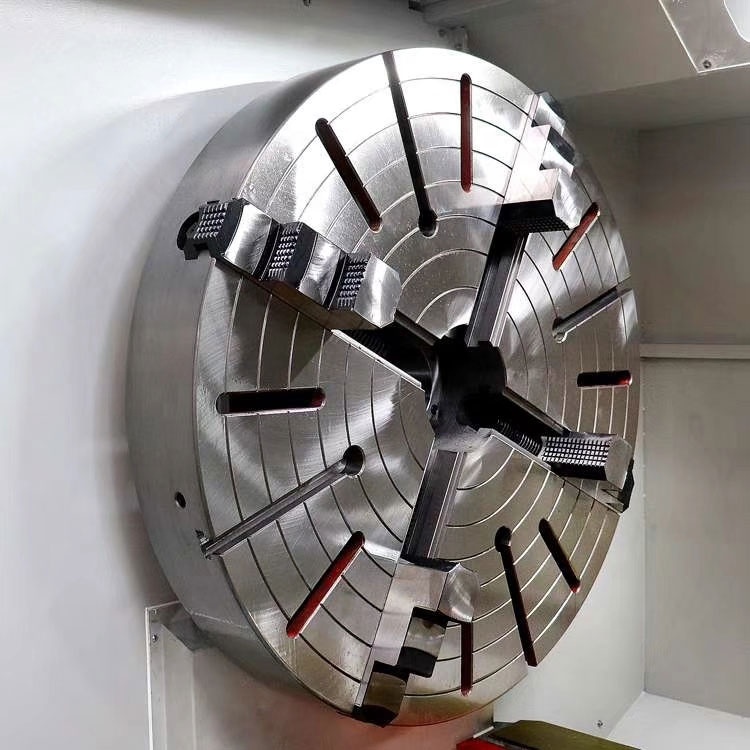

Manual chuck

Manual tailstock

Lighting system

Cooling system

Automatic lubrication system

CK6163 cnc turning machine Optional configuration:

Siemens, FANUC, KND, Syntec, Mitsubishi CNC controller

6/8 station turret/tool post

Hydraulic tailstock or pneumatic tailstock

Hydraulic chuck or pneumatic chuck

Chip conveyor

Bar auto-feeding

Q: What is the minimum order quantity (MOQ)? A: MOQ is one set. (Only some low cost machines will be more than 1 set)

Q: How can I choose the most suitable machines? A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.

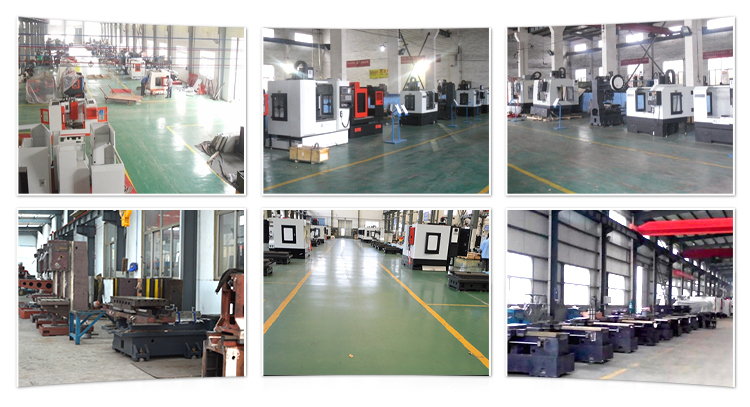

Q: What's the Payment Terms? A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss. Q: Where is your factory located? A: Our factory is located in Tengzhou, Shandong province, China. Q: What's the main products of your company? A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.

Q: What is your market advantage? A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service. Q: What is the package? Is it suitable for shipment? A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
