VMC1370 centro de usinagem
VMC1370 centro de usinagem Technical parameters
| SPECIFICATIONS | UNIT | VMC1370 |
| Worktable size | mm | 1400*700 |
|
X /Y/Z axis travel |
mm | 1300/700/700 |
| Maximum load bearing of worktable | KG | 1200 |
| T Shot | mm | 140-22-5 |
| Spindle face to table distance | mm | 140-860 |
| Distance between spindle center and column guide surface | mm | 780 |
| Spindle taper | - | BT50 |
| Main shaft connection |
- |
Belt |
| Maximum output torque | mm | 143 |
| Range of spindle speed | rpm | 6000 |
| Spindle motor power | KW | 11 |
| ATC capacity | - | 24qty |
| Maximum tool size | mm | Φ120 |
| Maximum tool weight | kg | 8 |
| X/Y/Z guide way type |
- |
Taiwan roller Linear rail |
| X/Y/Z screw type |
- |
Taiwan ball screw |
| Weight | T | 7 |

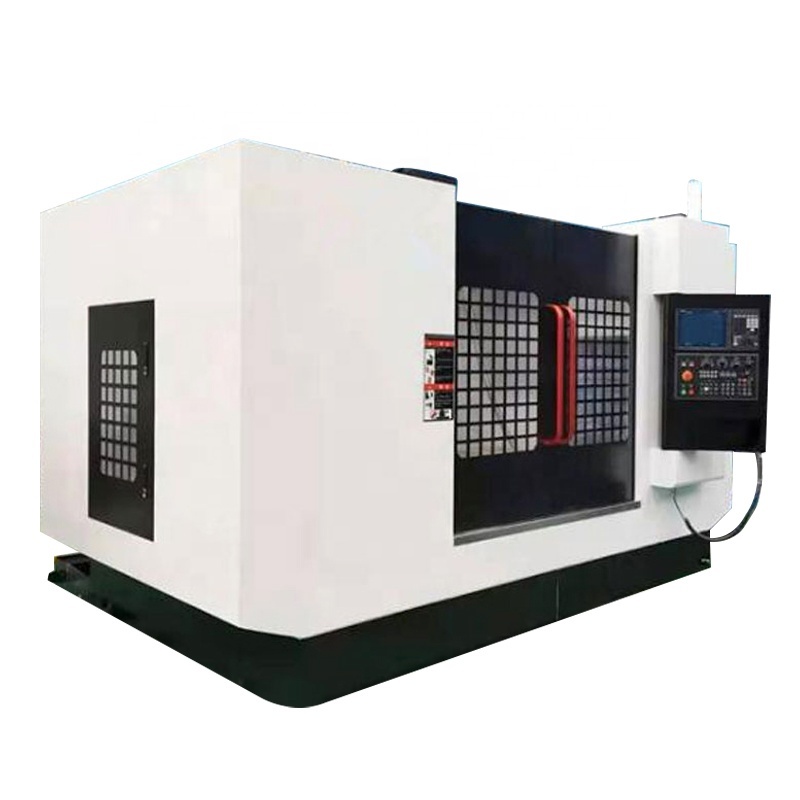

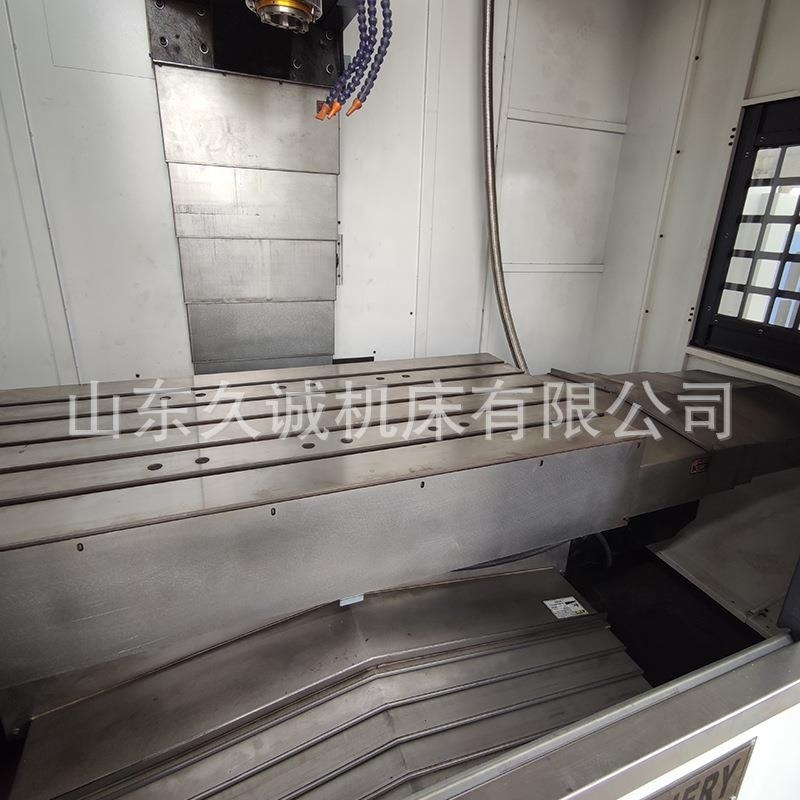

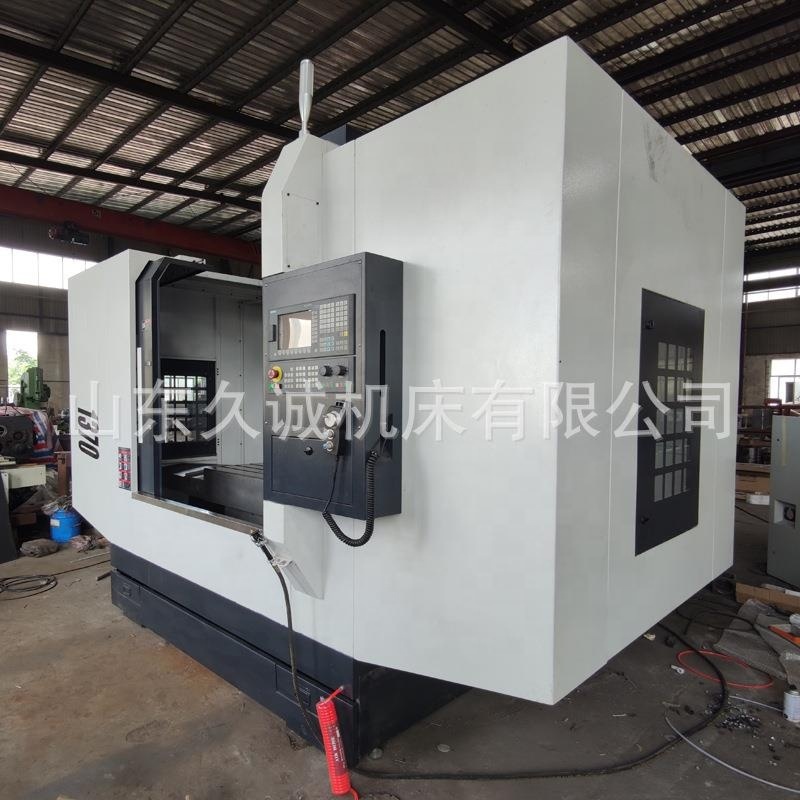

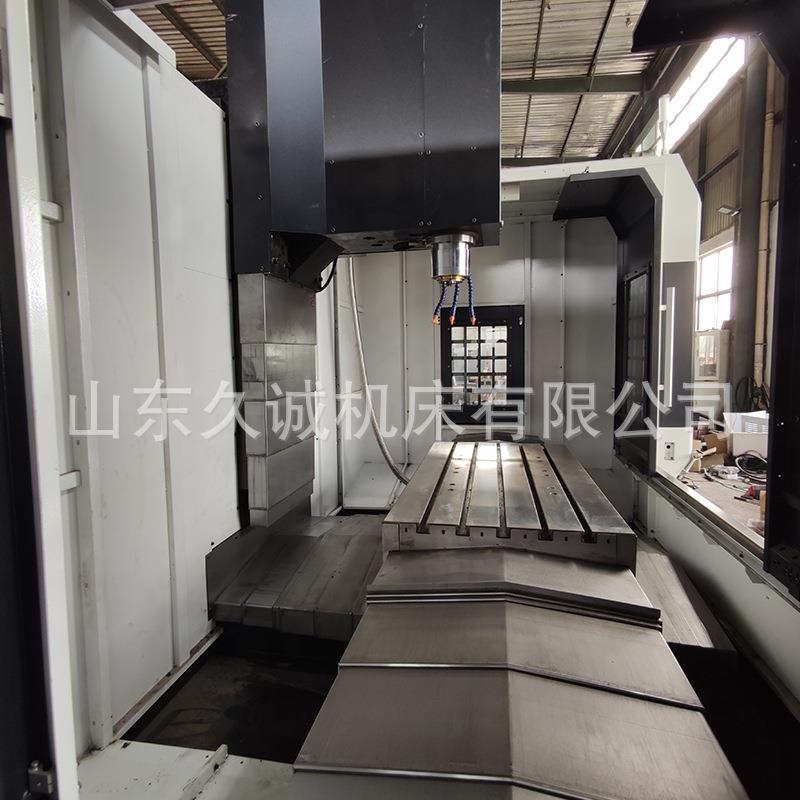

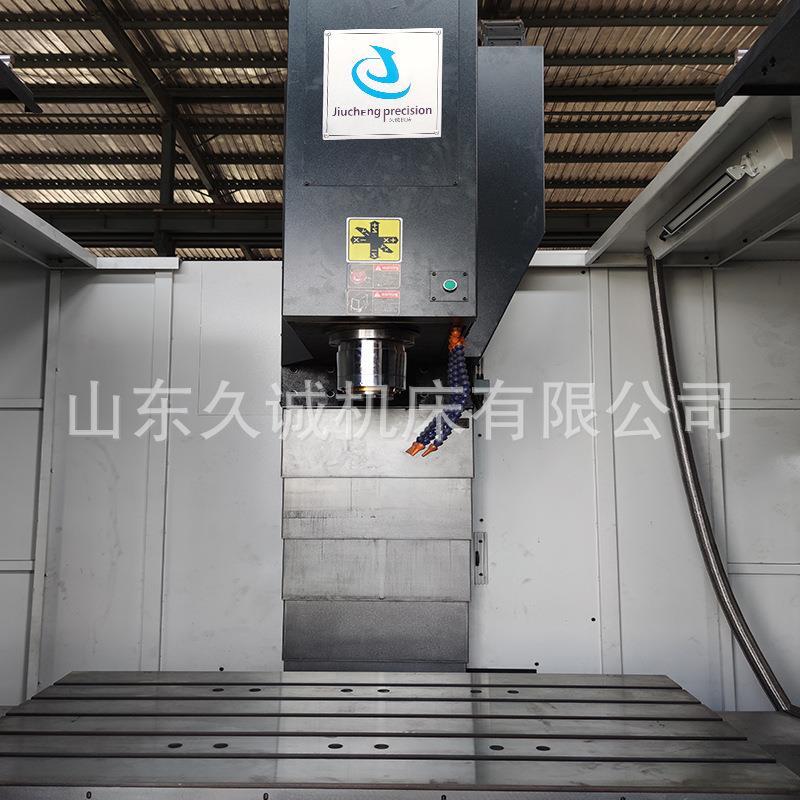

VMC1370 centro de usinagem Photography
VMC1370 centro de usinagem Detailed introduction

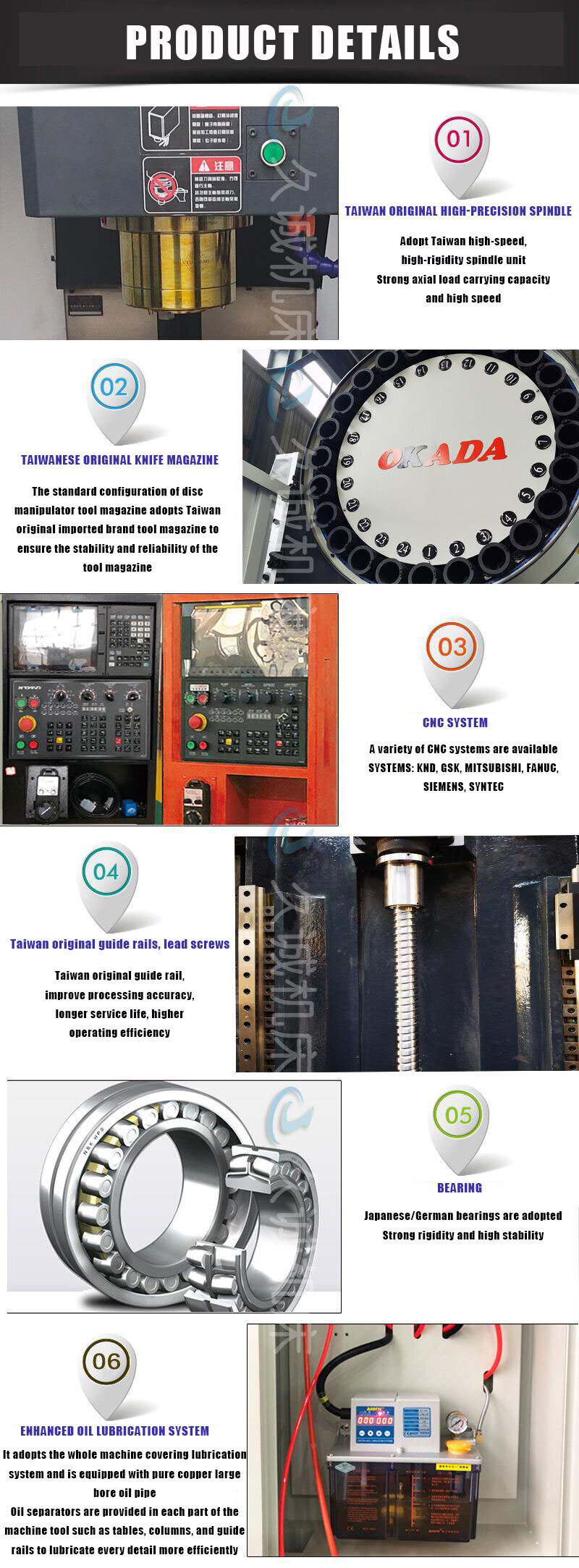

1. The main basic parts such as the base, slide, workbench, column, spindle box are made of high-strength cast iron; the base is a box-type structure, and the compact and reasonable symmetrical rib structure ensures the high rigidity and bending and shock absorption performance of the basic parts; the A-type bridge-span column and internal grid-shaped ribs effectively ensure the rigidity and precision of the Z-axis during strong cutting; the basic parts are made of resin sand molding and aging treatment, which provides a guarantee for the stability of the long-term performance of the machine tool.
2. X, Y, and Z guide rails are all heavy-duty 45#/55# linear roller guide rails, which have the characteristics of fast speed, high rigidity, low friction, low noise, low temperature rise change, etc., and cooperate with automatic forced lubrication to improve the precision and life of the machine tool;
3. The Z direction is balanced with a counterweight block to ensure smooth and stable movement of the spindle box; the Z-direction drive motor has a power-off brake device;
4. The X, Y, and Z directions use high-precision and high-strength internal circulation double-nut preloaded large-lead ball screws with high feed speed; the drive motor is directly connected to the screw through an elastic coupling, and the feed servo motor directly transmits power to the high-precision ball screw, without backlash, to ensure the positioning accuracy and synchronization of the machine tool;
5. Taiwan high-speed, high-precision, and high-rigidity spindle units are used, with strong axial and radial load-bearing capacity, and the maximum speed can reach 8000rpm;
6. The spindle adopts a central air blowing structure, and the central high-pressure gas is quickly used to blow the spindle inner cone when the spindle is loose. Clean, to ensure the accuracy and life of tool clamping;
7. Protective devices are used for the guide rails and lead screws in the three directions of X, Y and Z to ensure the cleanliness of the lead screws and guide rails, and to ensure the transmission and movement accuracy and life of the machine tool;
8. The external protection of the machine tool adopts a full protection structure design, which is easy to operate, safe and reliable;
9. A reliable centralized automatic lubrication device is used to automatically and intermittently lubricate each lubrication point of the machine tool at a fixed time and quantity, and the lubrication time can be adjusted according to the working conditions;
10. The 24-disc tool magazine produced by a professional manufacturer in Taiwan is used, which has accurate tool change, short time and high efficiency. It has been tested for millions of times and meets the reliability requirements; it has a damping structure to reduce the impact during movement and ensure the service life of the tool magazine; it is pneumatically driven, easy to use, and the shortest path tool change;
11. The oil-water separation device is used to separate most of the collected lubricating oil from the coolant to prevent the rapid deterioration of the coolant, which is beneficial to environmental protection;
Q: What is the minimum order quantity (MOQ)? A: MOQ is one set. (Only some low cost machines will be more than 1 set)
Q: How can I choose the most suitable machines? A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.
Q: What's the Payment Terms? A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss. Q: Where is your factory located? A: Our factory is located in Tengzhou, Shandong province, China. Q: What's the main products of your company? A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.
Q: What is your market advantage? A: We provide not only machine tools, but one-stop solutions for machine
tools. If there is any problem with the equipment, we can go abroad for after-sales service. Q: What is the package? Is it suitable for shipment? A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
- Condition:
- New
- Spindle Taper:
- BT40
- No. of Spindles:
- Single
- Type:
- VERTICAL
- Dimension(L*W*H):
- 1400*700
- Weight (T):
- 7 T
- Table Size (mm):
- 1400*700
- CNC Control System:
- GSK, FANUC, MITSUBISHI, KND, Siemens
- Number of Axes:
- 3, 4, 5
- Table Travel (X) (mm):
- 1300
- Table Travel (Y) (mm):
- 700
- Table Travel (Z) (mm):
- 700
- Positioning Accuracy (mm):
- ±0.005
- Repeatability (X/Y/Z) (mm):
- ±0.003
- Range of Spindle Speed(r.p.m):
- 50 - 6000 r.p.m
- Spindle Motor Power(kW):
- 11
- Max. Table Load(kg):
- 1200 kg
- Min. Time of Tool Change(s):
- 3
- Tool Magazine Capacity:
- Other, 24
- Key Selling Points:
- Competitive Price
- Warranty:
- 1 Year
- Place of Origin:
- Shandong, China
- Brand Name:
- JIUCHENG
- Marketing Type:
- Hot Product
- Machinery Test Report:
- Provided
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- CNC or Not:
- CNC Systemn
- Precision:
- High Precision Machining Center
- Control system:
- SIEMENS GSK FANUC (optional)
- Color:
- Custom-made
- After-sales Service Provided:
- Engineers available to service overseas
- Applicable Industries:
- Manufacturing Plant, Other
- Showroom Location:
- Turkey, Indonesia, Russia, UAE
- Core Components:
- Motor
- Feed Speed(mm/min):
- 1 - 8000 mm/min
