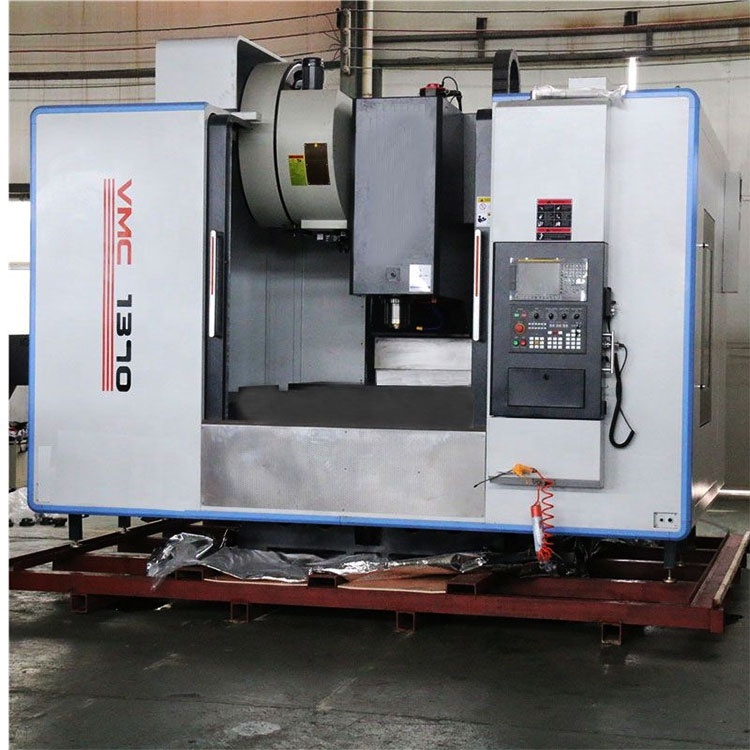

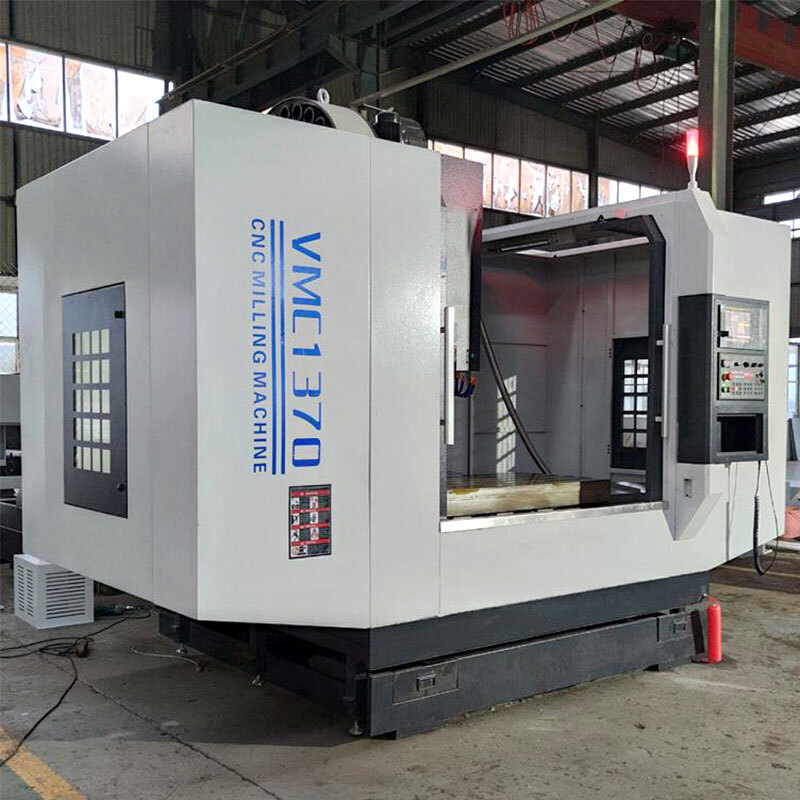

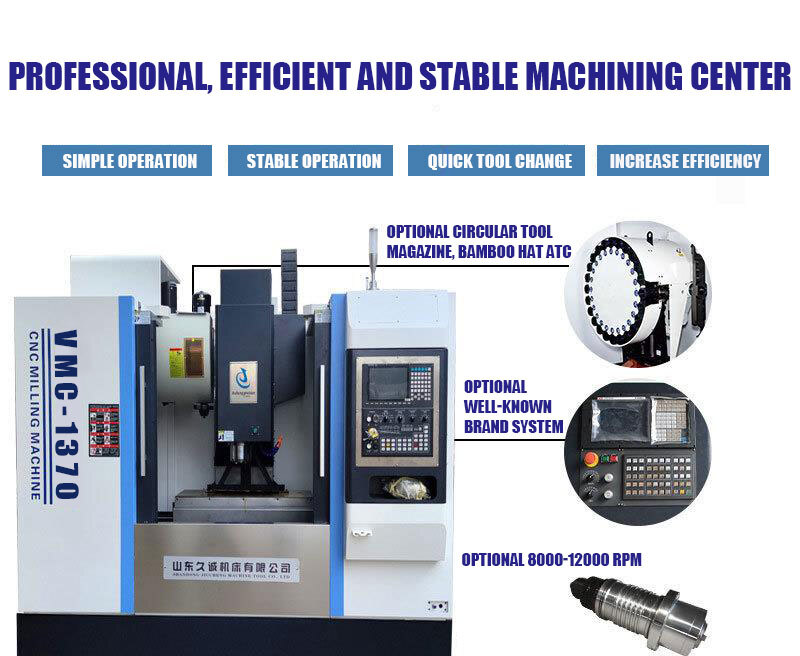

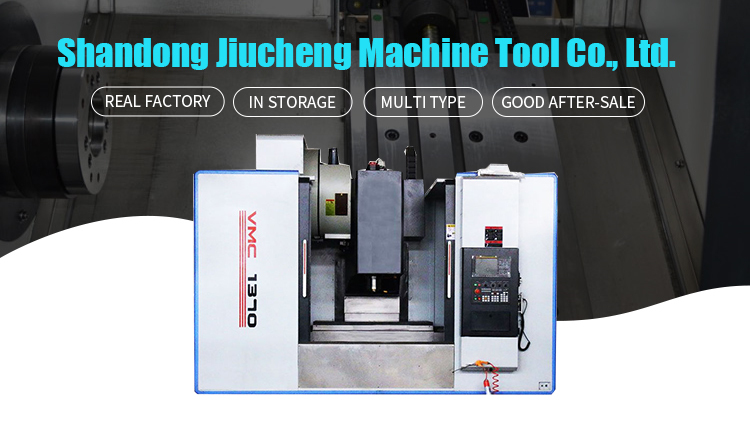

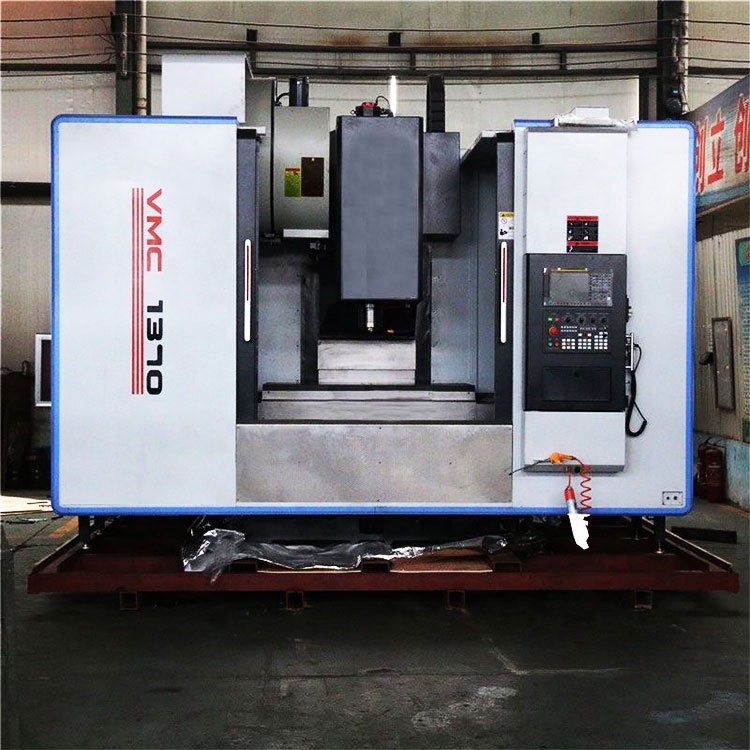

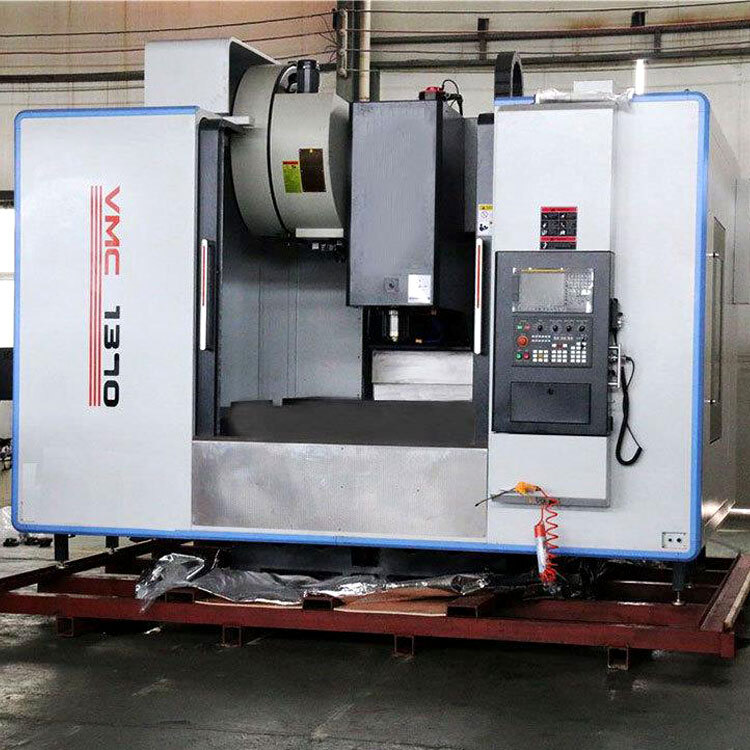

VMC1370 vertical machining center
stars, based on 0reviews
VMC1370 vertical machining center Technical parametersVMC1370 vertical machining center vertical machining centerVMC1370 vertical machining center
VMC1370 vertical machining centerVMC1370 vertical machining center
|
SPECIFICATIONS |
UNIT |
VMC1370 |
|
Worktable size |
mm |
1400*700 |
|
X /Y/Z axis travel |
mm |
1300/700/700 |
|
Maximum load bearing of worktable |
KG |
1200 |
|
T Shot |
mm |
140-22-5 |
|
Spindle face to table distance |
mm |
140-860 |
|
Distance between spindle center and column guide surface |
mm |
780 |
|
Spindle taper |
- |
BT50 |
|
Main shaft connection |
- |
Belt |
|
Maximum output torque |
mm |
143 |
|
Range of spindle speed |
rpm |
6000 |
|
Spindle motor power |
KW |
11 |
|
ATC capacity |
- |
24qty |
|
Maximum tool size |
mm |
Φ120 |
|
Maximum tool weight |
kg |
8 |
|
X/Y/Z guide way type |
- |
Taiwan roller Linear rail |
|
X/Y/Z screw type |
- |
Taiwan ball screw |
|
Weight |
T |
7 |

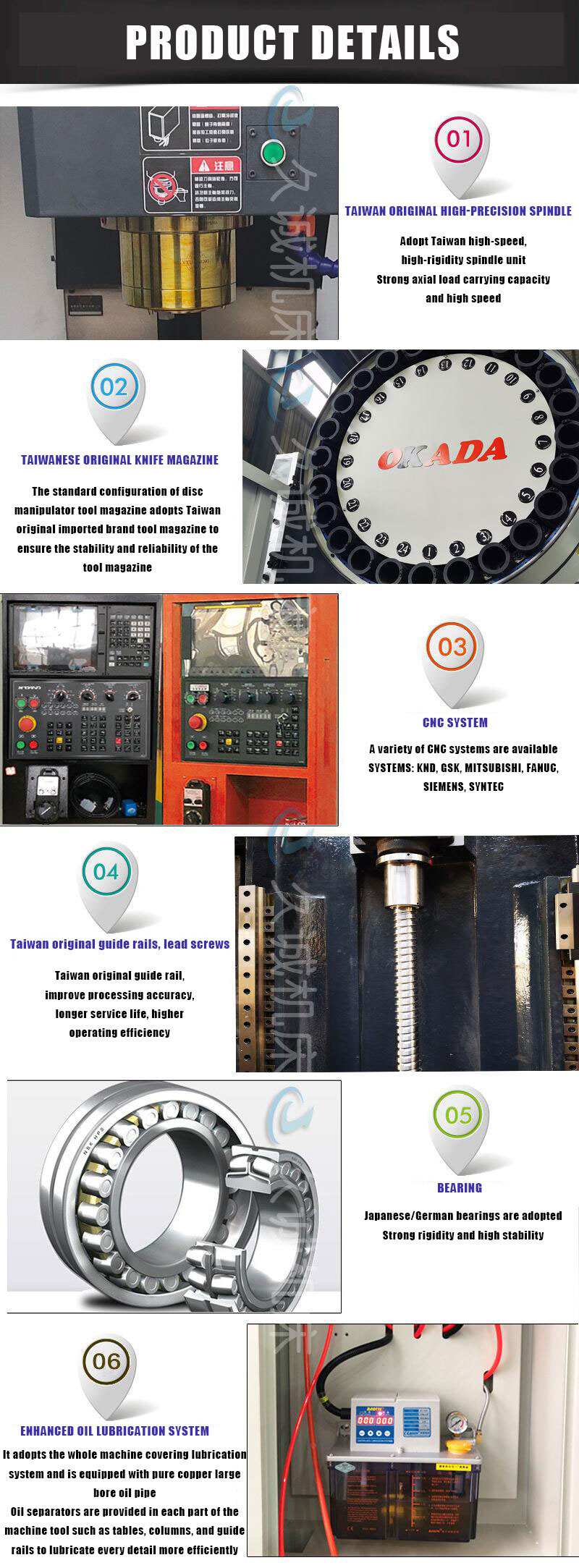

VMC1370 vertical machining center Features:
1. Resin sand castings.
2. Taiwan's three-axis ball screw. (Taiwan)
3. Precision lock nut. (Shanghai Yu Kai) (standard)
4. Taiwan-made spindle, Japan NSK bearing, spindle pulley and belt.
(Taiwan Health) 8000 rpm
5. Taiwan-made pressurized cylinder. (Taiwan Hao Orange) (standard)
6. Imported bearings (P4 grade). (standard)
7. Domestic high quality coupling. (Tianjin Longchuang) (standard)
8. Tool magazine 24 bucket knives (Tokyo, Taiwan)
9. X, Y, Z (bottom) stainless steel rail protection. (standard)
10. Imported electronic lubrication pump. (standard)
11. Domestic cooling system water pump, water tank. (standard)
12. Pneumatic components, . (standard)
13. Headstock weight. (standard)
14. System.Siemens 828D, FANUC, Mitsubishi M80A.
15. Machine alarm light (standard)
The machine is equipped with an anti-impact device, which can absorb the vibration caused by the impact caused by the worker's operation error, so as to minimize the damage of the impact and ensure the original accuracy;
The oil and water separation design can effectively separate the lubricating oil from the cutting fluid, and prevent the cutting fluid from deterioration, affecting the processing quality.The worktable size of this machine is 800*1700. The overall rigidity of the fuselage is excellent, the structure is reasonable and the rigidity is extremely high. All the castings of this machine have been secondary tempered to provice high stability and high rigidity for overall machine. The maximum load bearing capability is also very excellent, it is up to 1500kg. This machine equips a high performance and high precision spindle. The speed range of the spindle is 8000RPM and the maximum cutting feed speed is from 1 till 10000RPM. The rigidity of the spindle is good. The materials of the spindle can absorb vibration which can effectively avoid accuracy problems.
VMC1370 vertical machining center Main Features:
High speed and precision spindle
Overl rigidity of the machine is excellent
The worktable size is good: 800mm*1700mm
Maximum laod bearing capability: 1500kg
The stability of the machine is good
Low noise
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
- Bedingung:
- Neu
- Spindel Kegel:
- BT40
- Keine. von Spindeln:
- Einzel
- Art:
- VERTIKALE
- Maß (L*W*H):
- 1400*700
- Gewicht (T):
- 7
- Tisch Größe (mm):
- 1400*700
- CNC Control System:
- GSK
- Tisch Reise (X) (mm):
- 1300
- Tisch Reise (Y) (mm):
- 700
- Tisch Reise (Z) (mm):
- 700
- Positionierung Genauigkeit (mm):
- ± 0, 005
- Wiederholbarkeit (X/Y/Z) (mm):
- ± 0, 003
- Palette von Spindel Geschwindigkeit (r. p. m):
- 50 - 6000 r.p.m
- Max. Tisch Last (kg):
- 1200 kg
- Min. Zeit von Werkzeug Ändern (s):
- 3
- Werkzeug Magazin Kapazität:
- 24
- Schlüssel Verkauf Punkte:
- Multifunktionale
- Garantie:
- 1 JAHR
- Ursprungsort:
- Shandong, China
- Markenname:
- JIUCHENG
- Marketing Typ:
- Neues Produkt 2022
- Maschinen Prüfbericht:
- Zur verfügung gestellt
- Video ausgehenden-inspektion:
- Zur verfügung gestellt
- Garantie von core komponenten:
- 1 JAHR
- Bearbeitung Kapazität:
- Medium Duty
- Schnelle Vorschub geschwindigkeit (mm/min):
- 40 - 2000 mm/min
- Cnc oder nicht:
- Cnc systemn
- Präzision:
- Hochpräzises Bearbeitungs zentrum
- Kontroll system:
- Siemens gsk fanuc (optional)
- Farbe:
- Nach Maß
- Kundendienst zur Verfügung gestellt:
- Ingenieure zur Verfügung, um in Übersee zu warten
