XH7126 Fresadora CNC

stars, based on 0reviews
items available
Inquire Now

 XH7126 Fresadora CNC Technical parameters

SPECIFICATIONS UNIT XH7126 XK7126
Table size mm 800x260 800x260
X axis travel mm 450 450
Y axis travel mm 300 300
Z axis travel mm 400 400
X/Y/Z rapid traverse speed m/min 15/15/15 15/15/15
Cutting feed speed mm/min 1-6000 1-6000
Spindle taper
mm
 BT40 BT40
Max. worktable load kg 200 200
Max. spindle speed rpm 6000
6000
Guide rail type - Linear rail Linear rail
Distance from spindle axis to column surface mm 360 360
Distance between spindle nose and worktable surface mm 90-520 90-520
Main motor power kw 2.2 2.2
Tool magazine
 -
12 ATC (Optional: 16 ATC)
 -
Max. tool diameter
 mm Ø130 -
Machine weight
 kg 2400 2400
Overall dimension
 mm 2200x1900x2200 2200x1900x2200

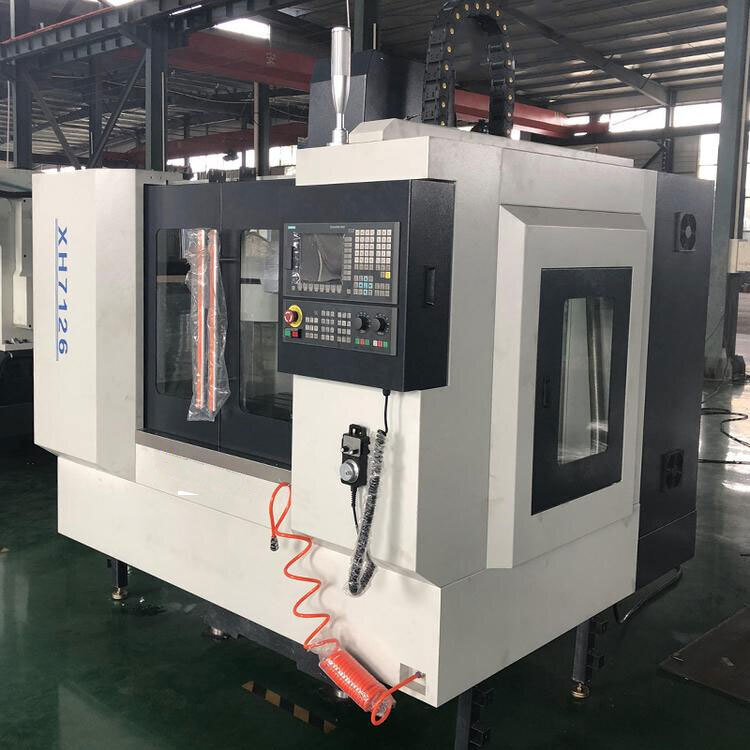

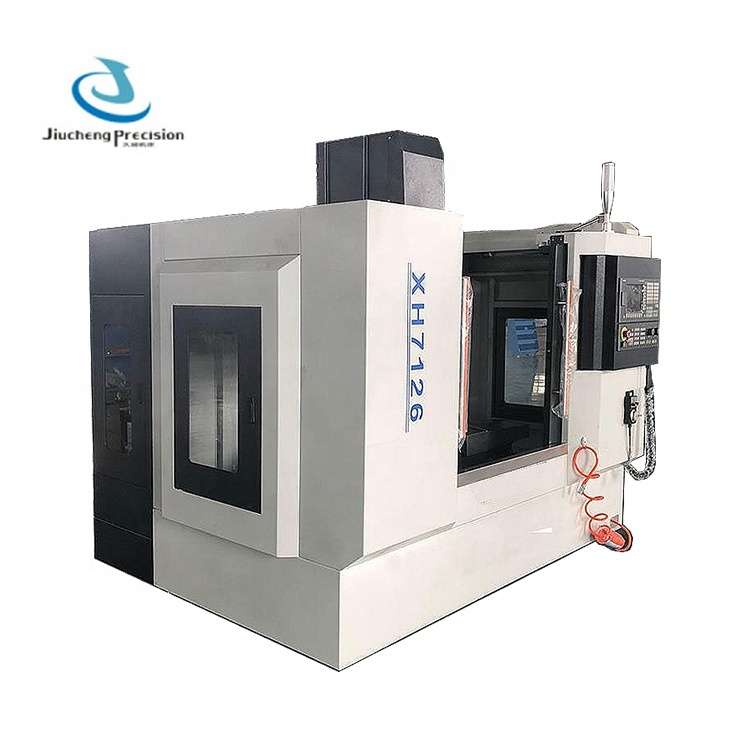

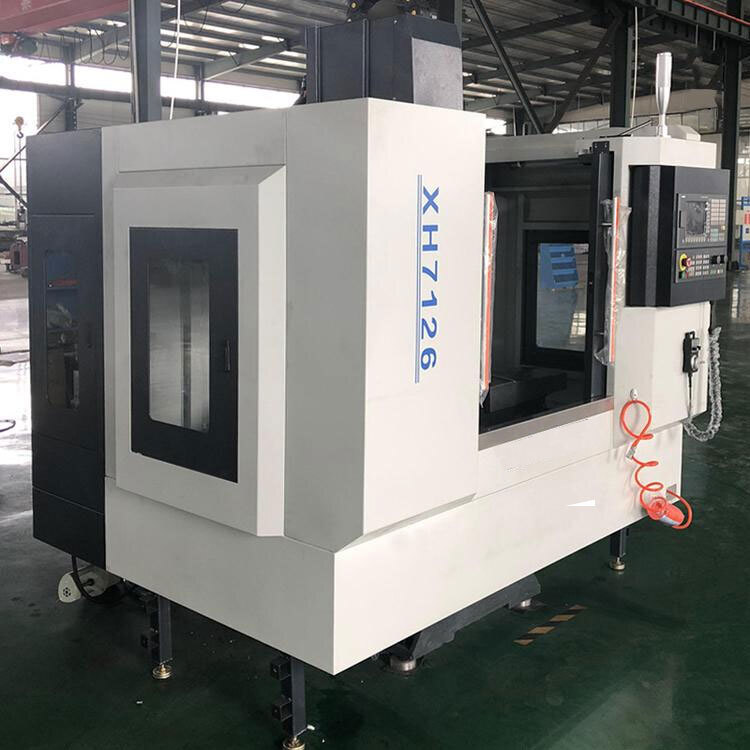

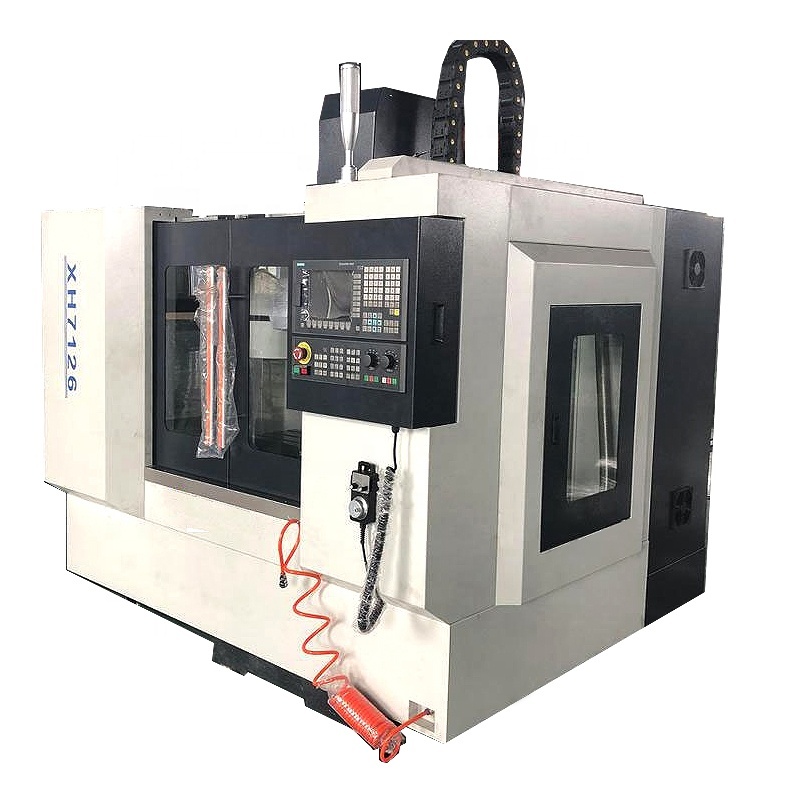

 XH7126 Fresadora CNC Photography

Features of  XH7126 Fresadora CNC

1. It has strong adaptability and flexibility in parts processing. It can process parts with particularly complex contours or difficult to control dimensions, such as mold parts, shell parts, etc.;

2. Small CNC milling machines can process parts that cannot be processed or are difficult to process with ordinary machine tools, such as complex curve parts described by mathematical models and three-dimensional surface parts;

3. It can process parts that need to be processed in multiple processes after one clamping and positioning;

4. It has high processing accuracy and stable and reliable processing quality. The pulse equivalent of the CNC device is generally 0.001mm, and the high-precision CNC system can reach 0.1μm. CNC processing also avoids operator errors;

5. The production automation level is high, which can reduce the labor intensity of the operator and is conducive to the automation of production management;

6. It has high production efficiency. CNC milling machines generally do not need to use special process equipment such as special fixtures. When changing workpieces, you only need to call the processing program, clamping tools and tool data stored in the CNC device, which greatly shortens the production cycle. The CNC milling machine has the functions of a milling machine, a boring machine, and a drilling machine, which makes the process highly centralized and greatly improves production efficiency. The spindle speed and feed speed of the CNC milling machine are both stepless, which is conducive to selecting the optimal cutting amount.

7. The milling machine is economical and can be used for home production. It has high precision, three-axis servo, spindle frequency conversion speed regulation, and is easy and quick to operate.

Q: What is the minimum order quantity (MOQ)? A: MOQ is one set. (Only some low cost machines will be more than 1 set)

Q: How can I choose the most suitable machines? A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.

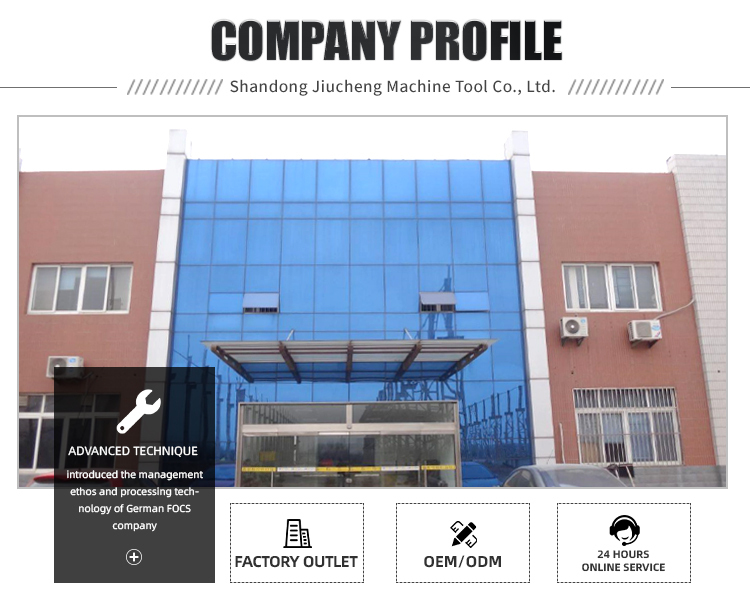

Q: What's the Payment Terms? A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss. Q: Where is your factory located? A: Our factory is located in Tengzhou, Shandong province, China. Q: What's the main products of your company? A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.

Q: What is your market advantage? A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service. Q: What is the package? Is it suitable for shipment? A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.

Type:
VERTICAL
Range of Spindle Speed(r.p.m):
5 - 8000
Number of Axes:
3
No. of Spindles:
Single
Machining Capacity:
Medium Duty
Spindle Taper:
BT40
Table Travel (X) (mm):
450
Table Travel (Y) (mm):
300
Table Travel (Z) (mm):
400
Positioning Accuracy (mm):
±0.015
Repeatability (X/Y/Z) (mm):
0.0075
Place of Origin:
Shandong, China
Brand Name:
JIUCHENG
Model Number:
XH7126
Voltage:
380V
Dimension(L*W*H):
2200*1900*2200
CNC Control System:
GSK
Key Selling Points:
Competitive Price
Weight (KG):
2400
Warranty:
1 Year
Max. Table Load(kg):
200 kg
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Color:
Customized option
Precision:
High precision
CNC controller::
Fanuc Siemens Syntec KND GSK
After-sales service provided:
Engineers available to service overseas
