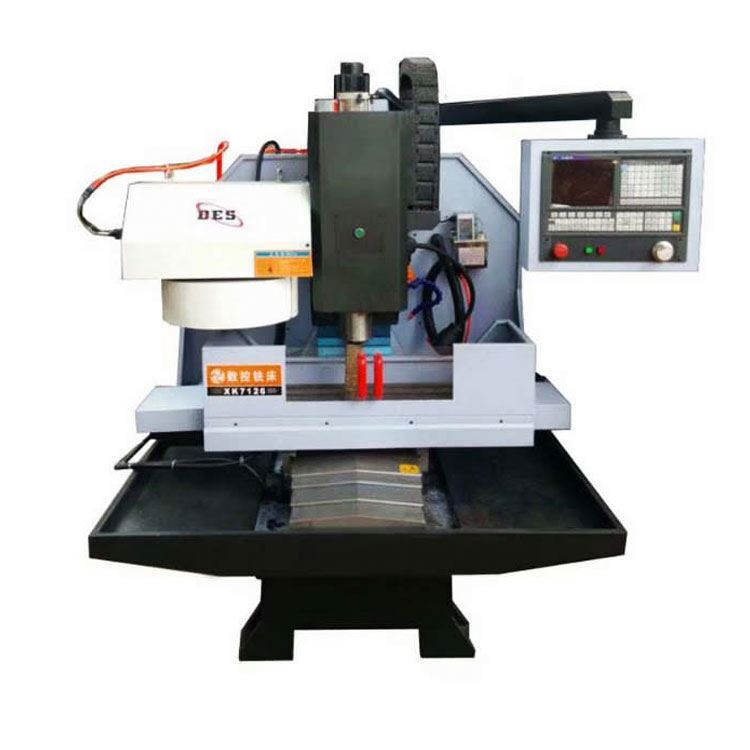

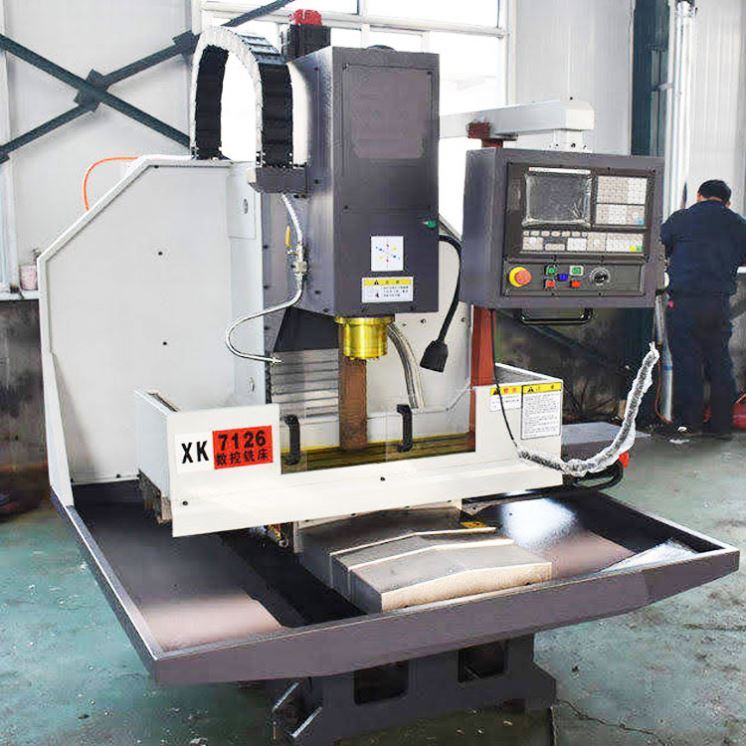

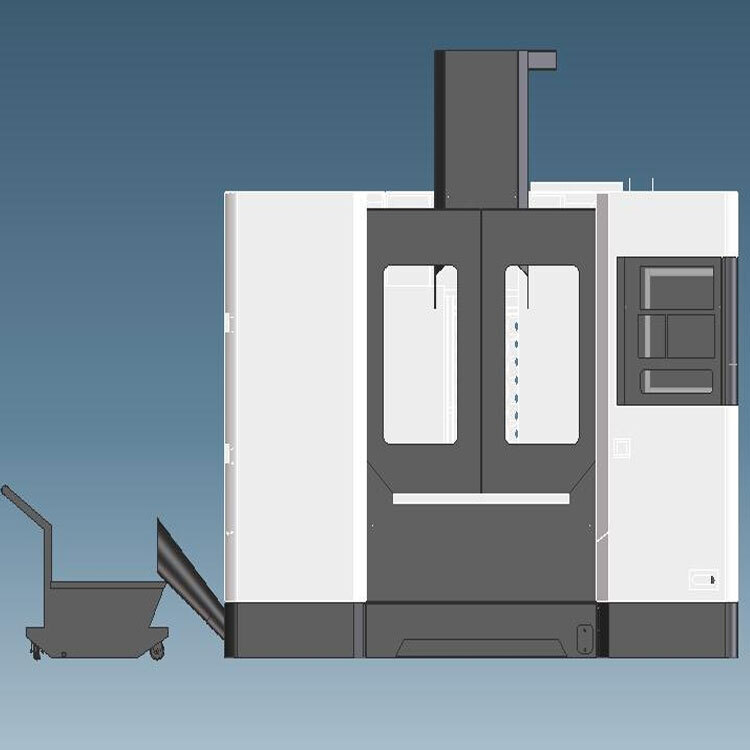

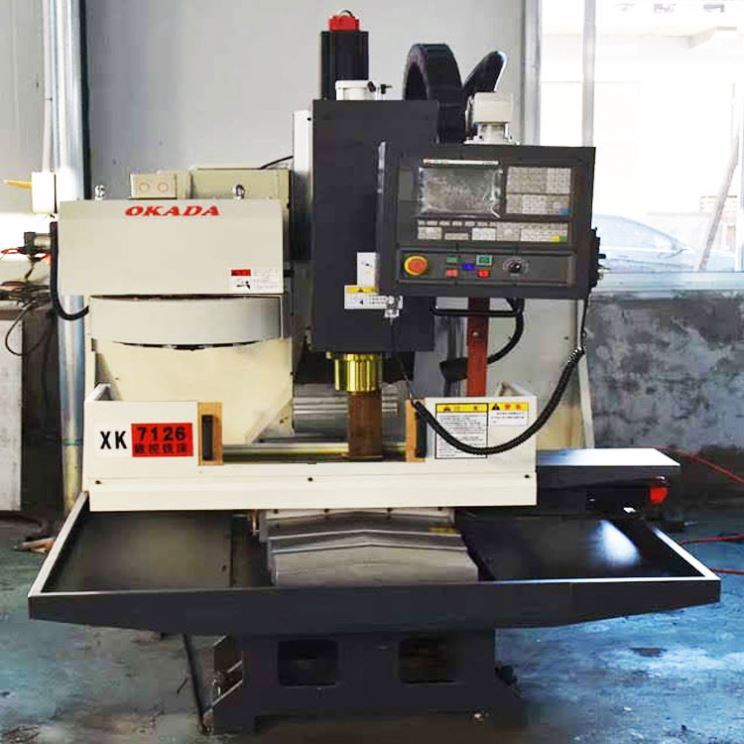

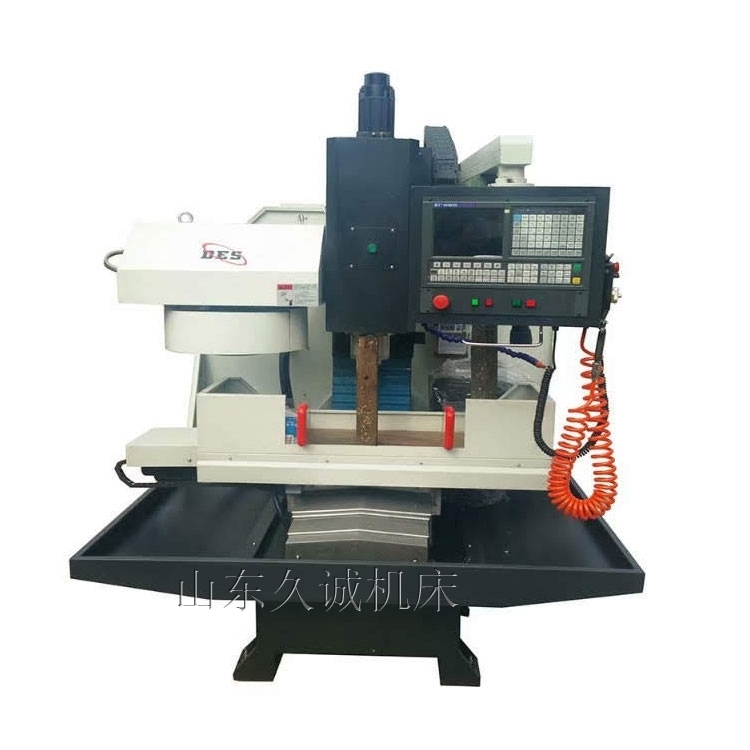

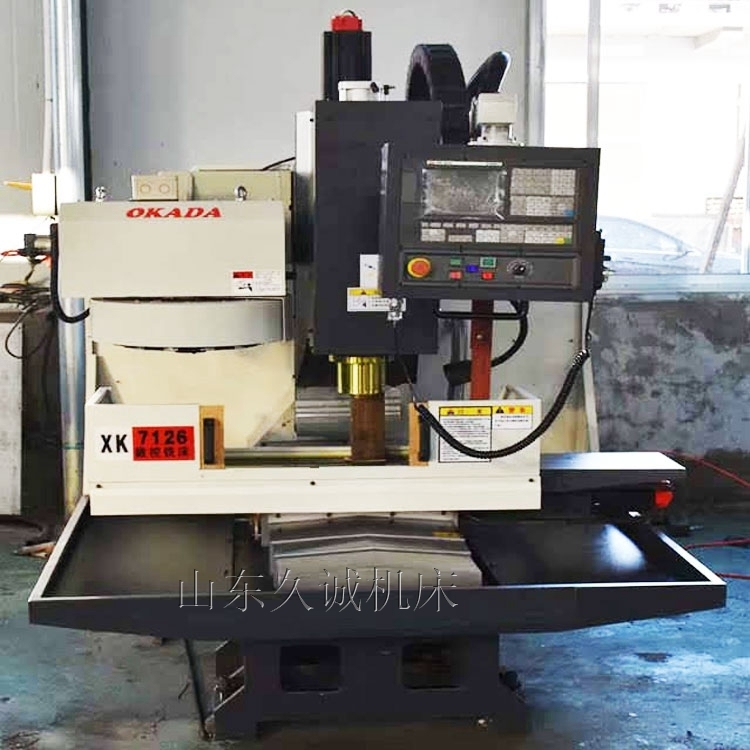

XH7126 vmc milling machine

XH7126 vmc milling machine Detailed introduction

1. XH7126 vmc milling machine small all use high-quality resin sand wear-resistant castings, strong and tough bones, super large columns, wide and low seats, and honeycomb structure. After two annealing treatments and vibration aging, the stress is removed to ensure long-term deformation.

2. Adopting the domestically pioneered 3D variable diameter design to ensure the stability and reliability of the body.

3. The three-axis adopts extremely rigid rectangular guide rail, which can withstand heavy cutting. The workbench is precisely ground. All non sliding surfaces of the guide rail are subject to Super high frequency quenching, greatly enhancing the surface hardness; The sliding surface of the guide rail used is embedded with imported guide rail soft belts, which greatly increases the wear resistance of the guide rail and improves the service life of the machine tool.

4. The three Shaft-driven bicycle adopts high-precision and rigid ball screw pair, and installs the high-precision ball screw special bearing of Japan NSK, ensuring the positioning accuracy and repeated positioning accuracy.

5. All three axes adopt domestically produced servo motors and spindle motors, providing strong power and ensuring feed accuracy under strong load-bearing capacity.

6. All three shafts are directly connected transmission, and high-precision couplings are used to ensure the transmission bearing capacity of each shaft.

7. Adopting P3 grade high rigidity and precision spindles from internationally renowned Taiwanese brands, ensuring the advantages of high reliability, long service life, low noise, low vibration, and high accuracy of the spindle.

8. Each axis adopts a sealed machine tool guide rail protective cover, effectively protecting the guide rail and screw, and extending its service life.

9. Adopting KND numerical control system and supporting servo motor and drive ensures the high stability, fast speed, smooth surface, and high accuracy of the control system.

10. High efficiency dual automatic lubrication system: The guide rail lubrication adopts a volumetric distributor combined with oil injection to provide a quantitative supply of the required oil for the guide rail, reducing the waste of lubricating oil and avoiding environmental pollution.

11. The wiring inside the electrical cabinet complies with national electrical safety regulations, ensuring that the control system operates without external interference. Using a heat exchanger, the hot air inside the electrical box is quickly discharged, maintaining a constant temperature inside the box, and enabling the control system to operate stably for a long time.

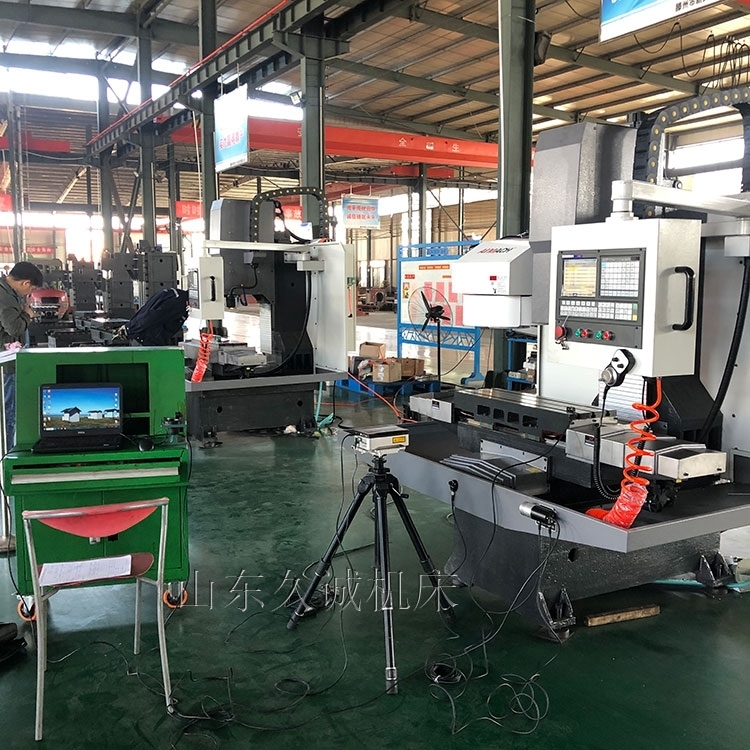

12. High precision pitch compensation, each transmission shaft adopts a high-precision laser measuring instrument to compensate for more accurate positioning accuracy of each shaft, making it more suitable for processing high-precision parts and mold manufacturing.

13. The external protection adopts three-dimensional semi protection, and all materials are 2mm standard steel plates, ensuring the safety of the machine tool.

XH7126 vmc milling machine Technical parameters
