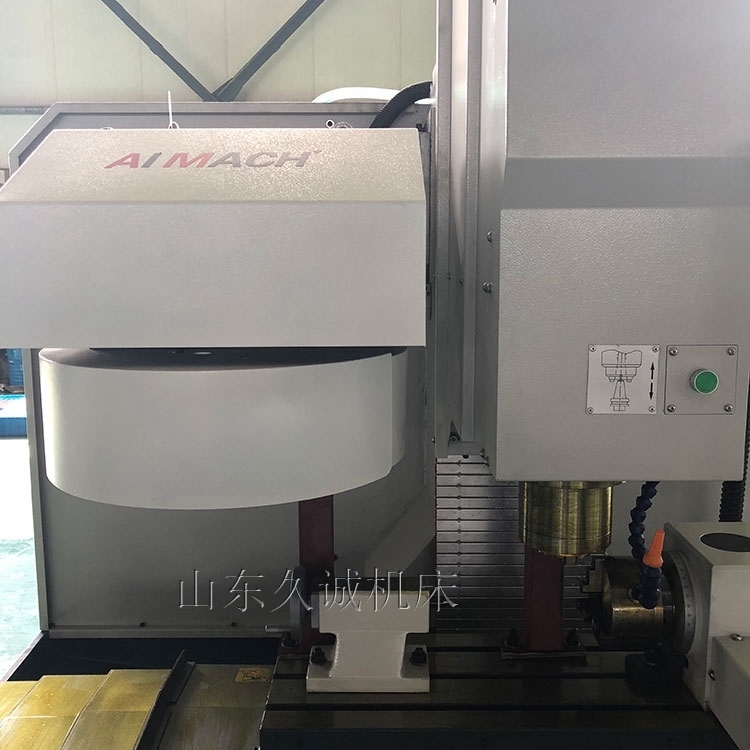

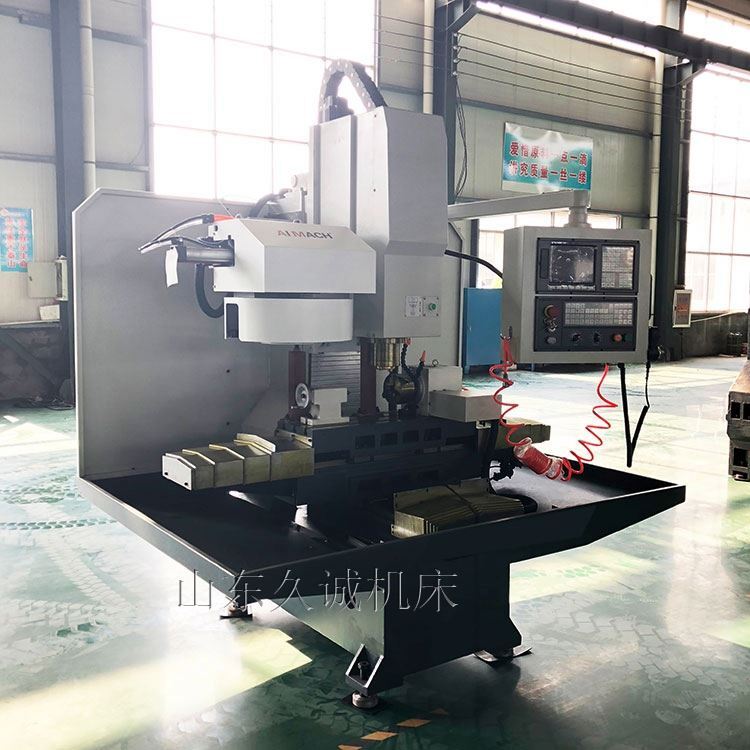

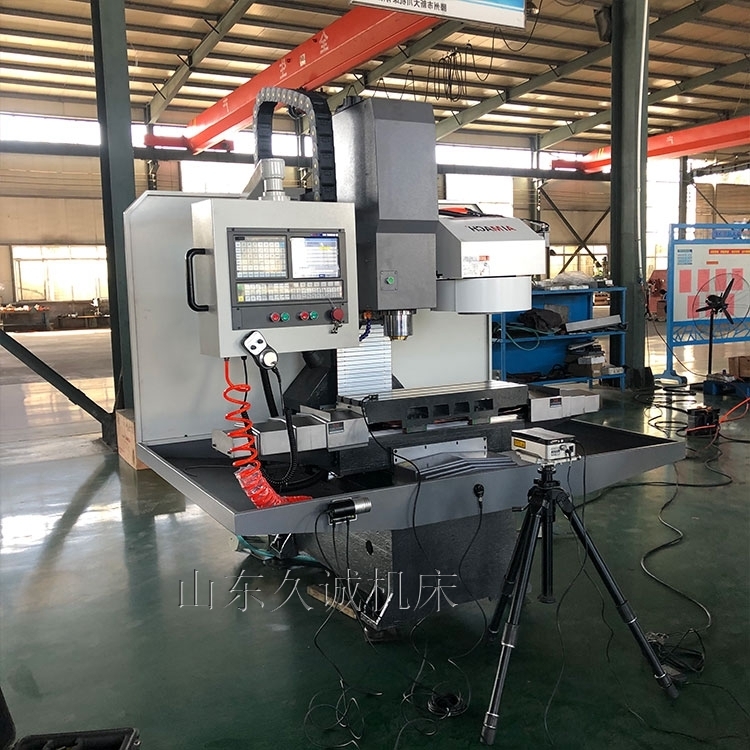

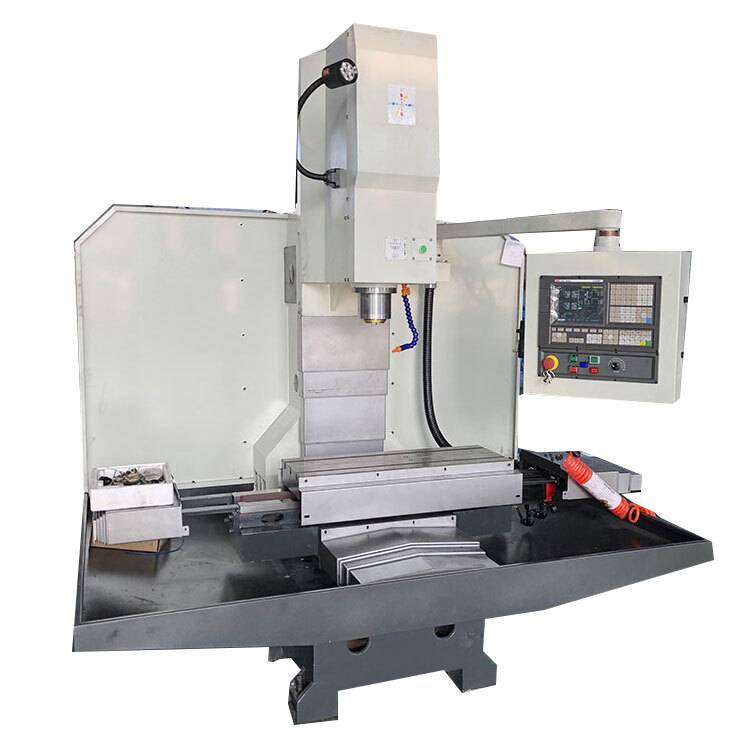

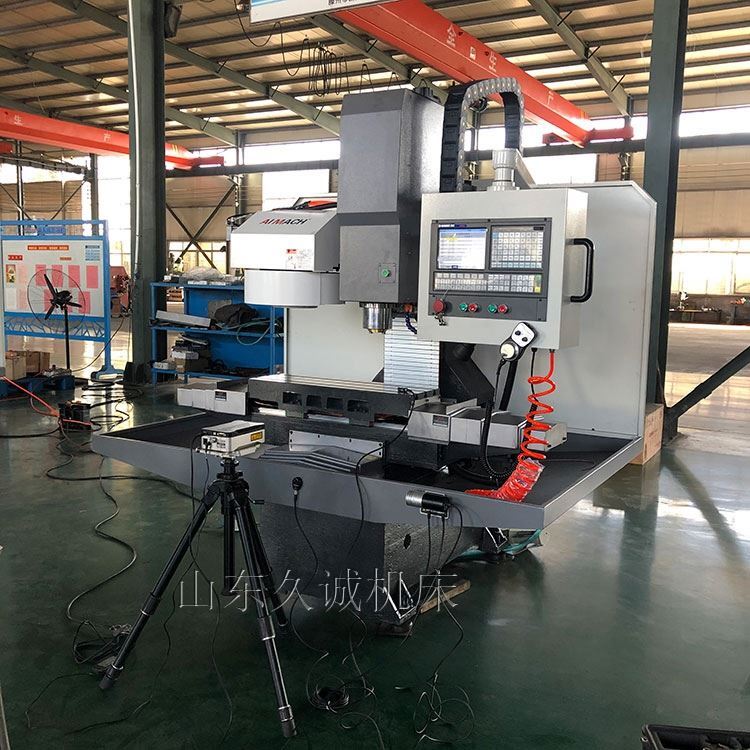

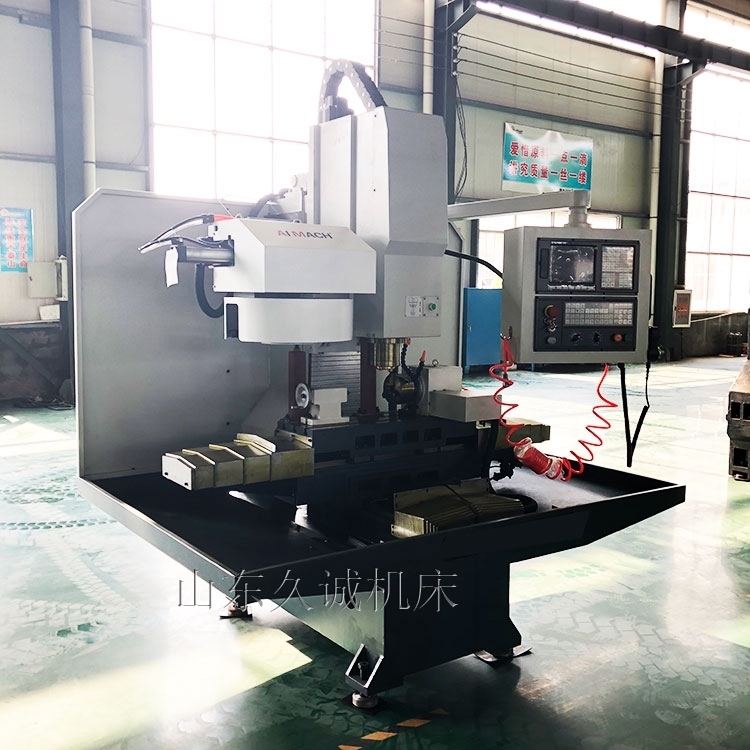

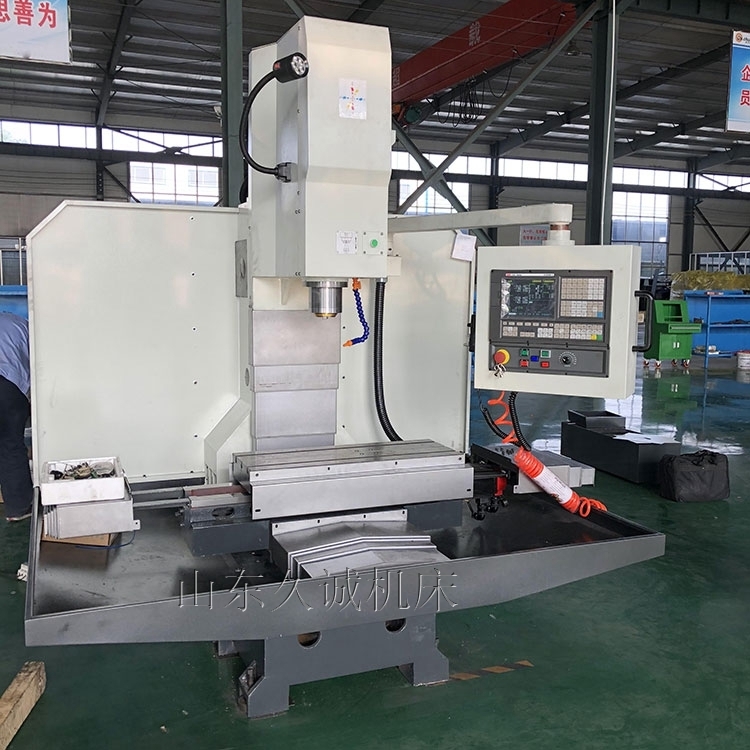

XK7136 cnc milling machine

XK7136 cnc milling machine Configuration

Standard configuration:

The CNC system: KND1000

The unclamping cylinder: Taiwan Shang pin

The weight: Wuxi Xieqing nitrogen balance

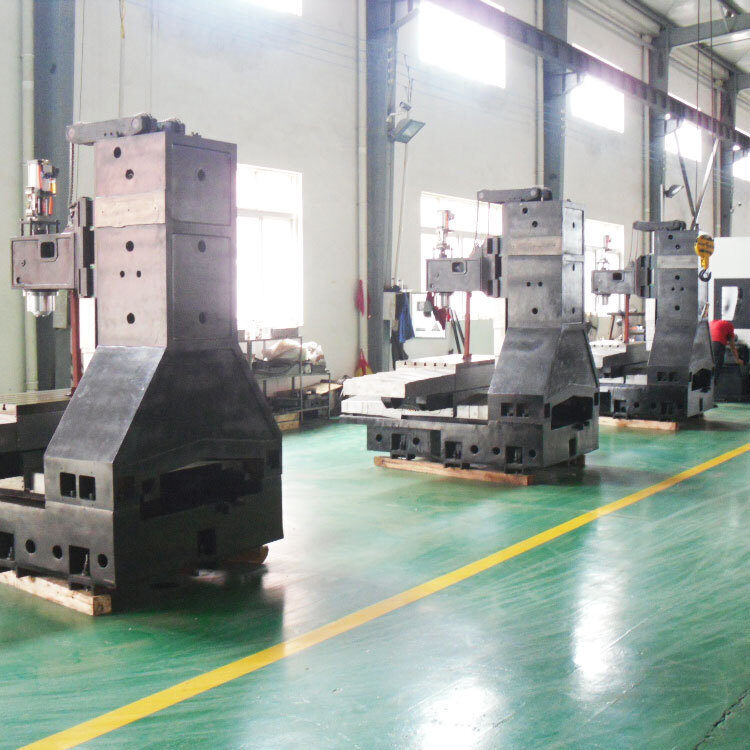

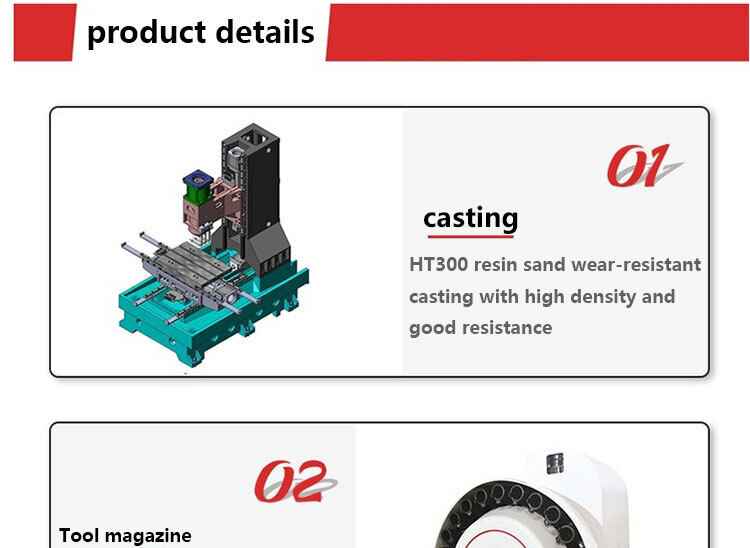

The high quality castings: resin sand casting

The spindle: Taiwan famous high speed spindle

The screw: HIWIN

The bearing: Japan NTN

The inner protection: total or half protection

Select the configuration:

1.M70B/M70A Mitsubishi FANUC 0i mate MD

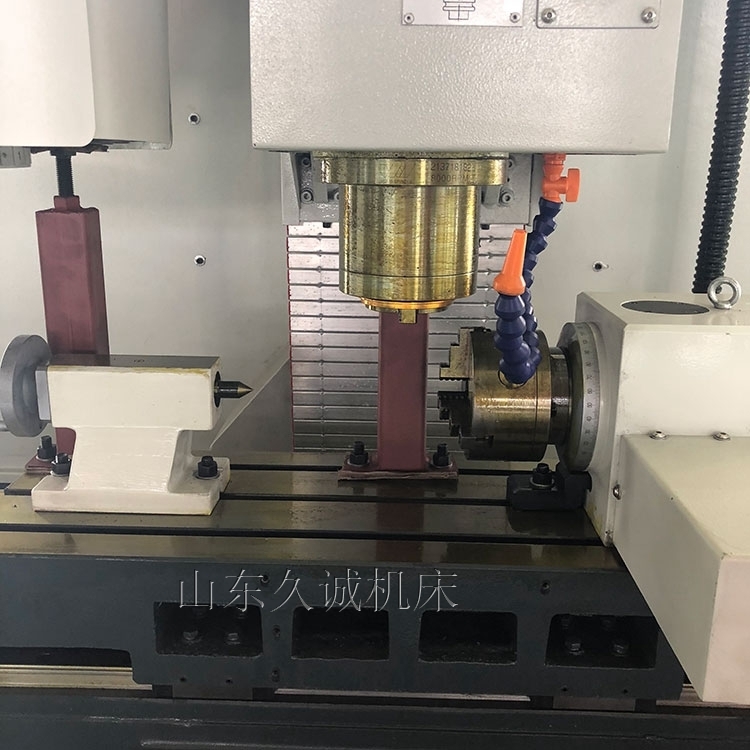

2. The CNC dividing head

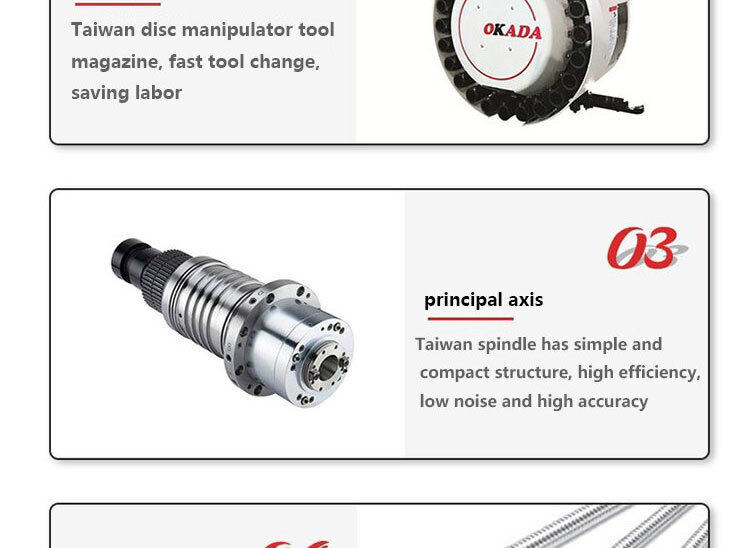

3. The Taiwan famous brand manipulator knife warehouse

4.NC rotary table

5. The chip cleaner

6. The fourth axis

7. The fifth axis

XK7136 cnc milling machine performance characteristics:

1. The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of the machine tool for

Long term use.

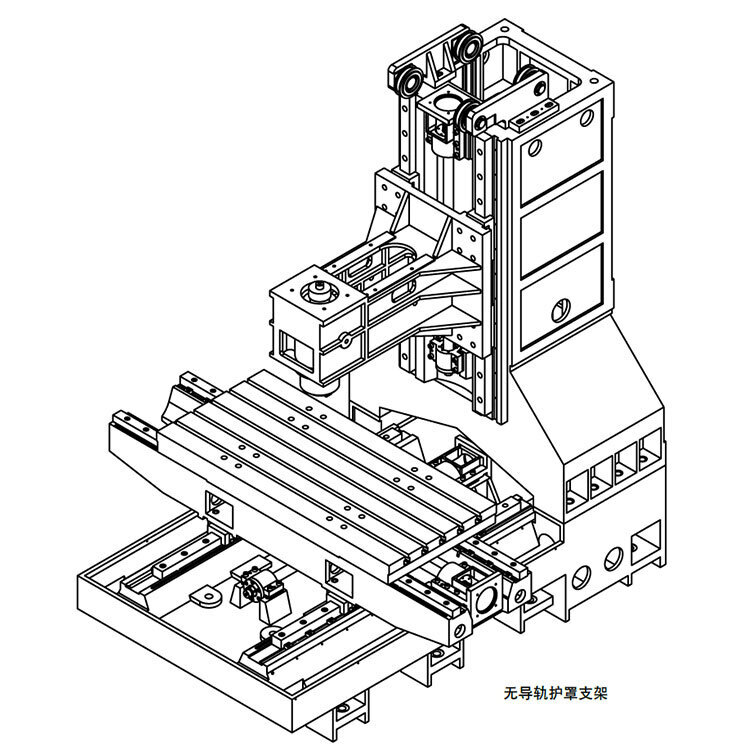

2. The column at the bottom of a kind of bridge structure, combined with the big box base, reduce the vibration of strong

machine on heavy cutting

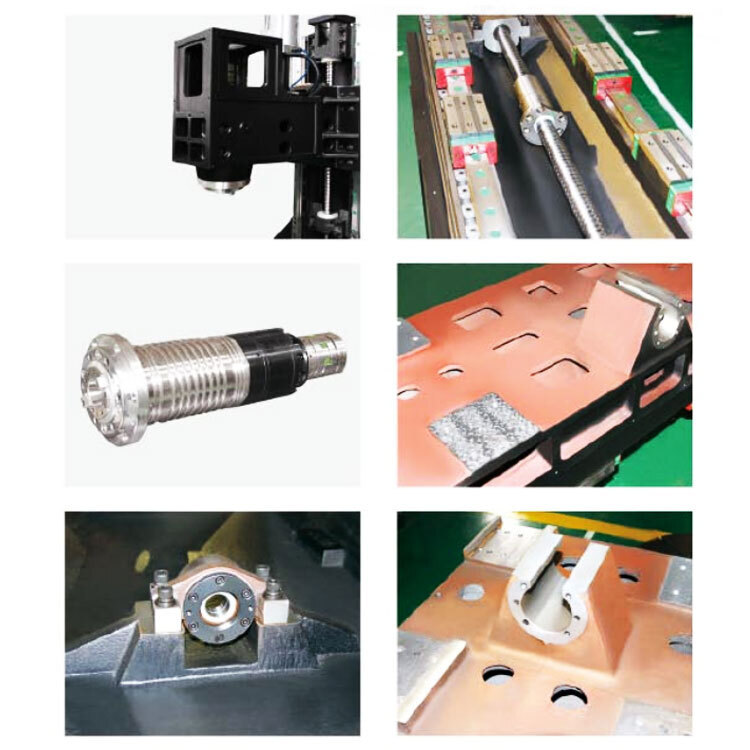

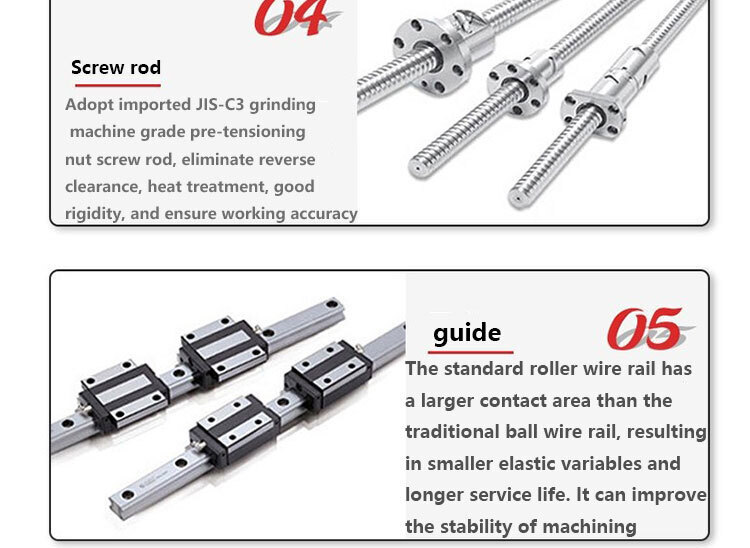

3. The preload precision ball screw drive

4. The high speed, high precision, high rigidity spindle unit

5. The design of oil-water separation

6. The intermitting automatic lubrication

7. Automatic scraping knife system

XK7136 cnc milling machine Application:

The vertical machining center can be applied to many fields such as mechanical processing and mold manufacturing, canadapt from

roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in

aerospace, military industry, mold, automobile, internal combustion engines, textile machinery, chemical machinery processing,

oil, electronics and other industries.

XK7136 cnc milling machine technical specifications:
