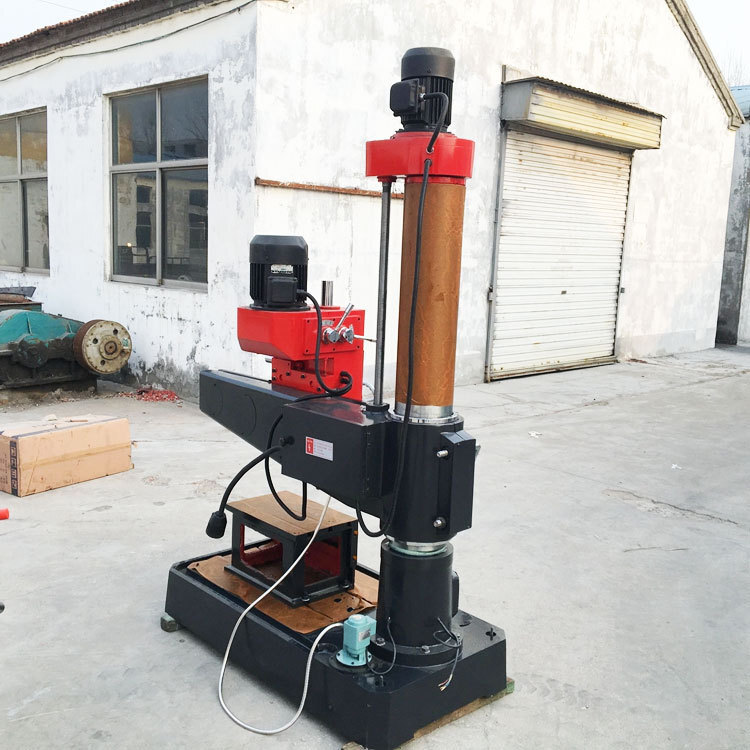

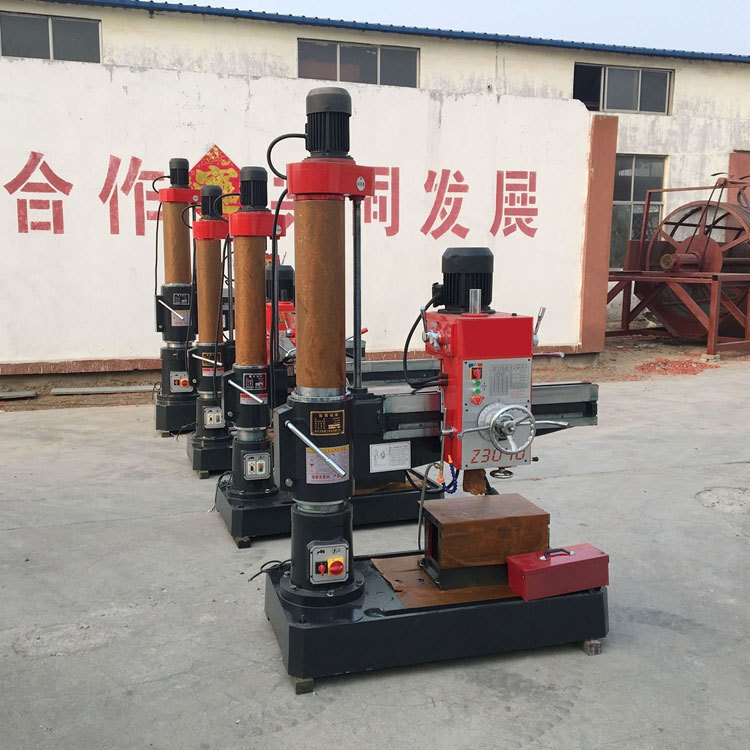

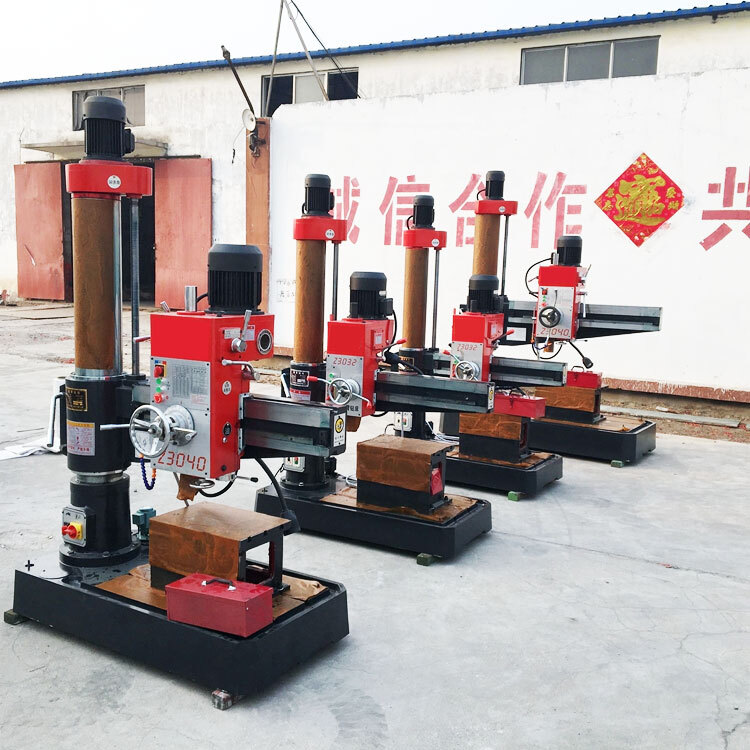

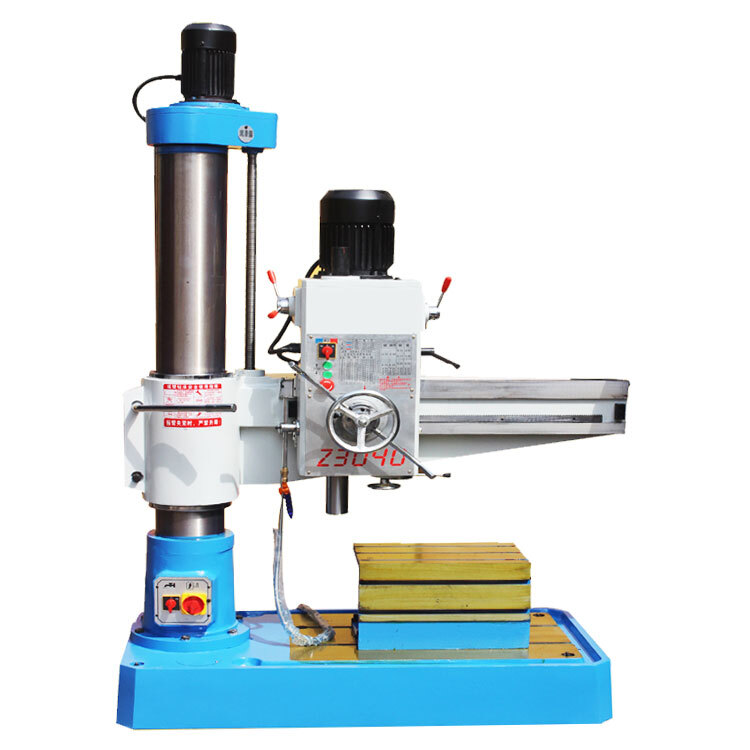

Z3040 radial drilling machine
Z3040 radial drilling machine main functions and features. Appearance modelling is beautiful and generous, the overall layout is well-proportioned and coordinated. It adopts mechanical wei movement, mechanical clamping, mechanical speed change and easy to operate. The guide rail is quenched by ultra-high frequency. Rocker arm automatic lifting, spindle automatic feeding, high production efficiency. The structure is reliable and well-made, which ensures the durability of the precision of the machine tool. And It gathers the advantages of drilling machine into one. It increases the processing range of the drilling machine, such as boring, tapping, threading, countersinking, drilling, reaming, reaming and other functions, which is widely used in the machining of small, medium and large enterprises, townships and individual industries.
FEATURES AT A GLANCE
When the drill bit touches the workpiece to start drilling, it should not hit the workpiece with the drill bit to avoid bruising thedrill tip. The force should be small, and should be repeated in and out, until the end face of the workpiece is drilled out a more complete cone pit and the drill bit jitter is small, before drilling. When you start drilling, you should prevent the drill bit from deflecting, which is easy to occur when the drill bit is not strong, the hole is drilled crooked, and the hole is drilled in the shape of a cone or a waist drum and other defects. The reason for the deflection of the drill bit is due to inaccurate centring of the drill bit in contact with the workpiece, too large a feed, small drill bit diameter and unstable drill bit clamping. In order to prevent the rocker arm drilling machine drill bit deflection, often in the centre of the drill hole on the sample punch, or use the centre of the drill out of the centre of the hole, or the use of small sharp angle of the short and thick twist drill first drilled a small hole, in order to facilitate the centring of the drill bit, and then the use of the required twist drill drilling.
Z3040 radial drilling machine SPECIFICATIONS
ModelZ3040X10
Max. Drilling capacity(mm)Cast iron 40/steel 32
Distance from spindle nose to table surface (mm)260-1150
Distance between spindle axis and column surface (mm)360-1300
Spindle travel (mm)200
Spindle taperMT4
Spindle speeds range(rpm)75,130,240,380,660,1200
Spindle feed range (rpm)0.10,0.16,0.25
Rocker rotary angle360
Motor power (kw)2.2
Movements motor power (kw)1.1
G.W (Kg)1400
Overall dimension(mm)1800x810x2300
Z3040 radial drilling machine CONFIGURATION

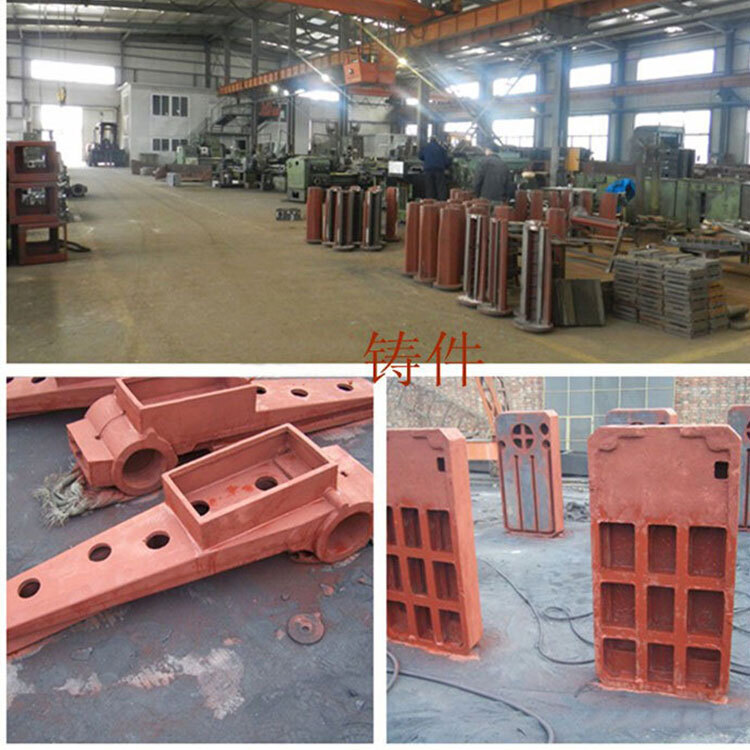

Z3040 radial drilling machine castings

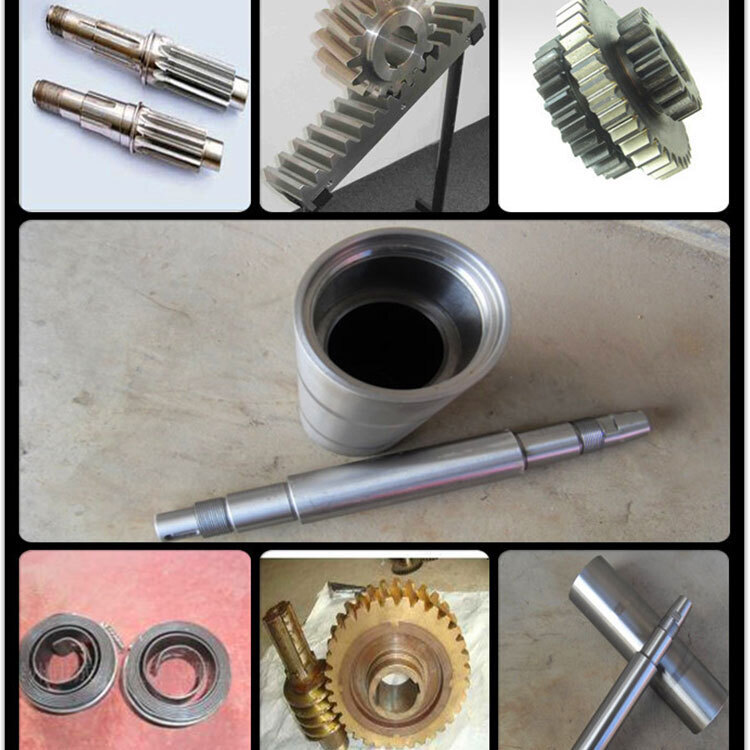

Z3040 radial drilling machine accessories

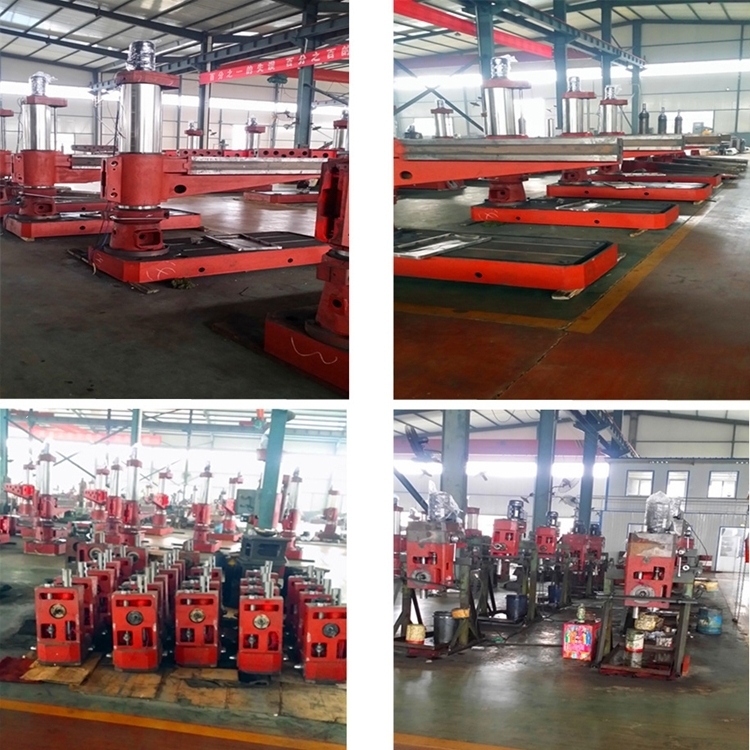

Z3040 radial drilling machine workshop
SALES AND SERVICE NETWORK
Successful Project
Project in India
FAQ
1.Q: Which trade term I can choose? A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you. 2.Q: How can I get quotation from you? A: You can make the inquiry online , or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday. 3.Q: how can I make the payment? A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way. 4.Q: How long does it take to get machine? A:It takes about 10 days. We want to know: Please tell us your specific purchasing requirements, so that we can make specific quotations.
- Condition:
- New
- type:
- Radial Drilling Machine
- Max. Drilling Dia. (mm):
- 40
- Range of Spindle Speed(r.p.m):
- 34 - 1220 r.p.m
- CNC or Not:
- Normal
- Drilling Speed:
- 1400
- Place of Origin:
- Shandong, China
- Brand Name:
- jiucheng
- Model Number:
- Z3040
- Voltage:
- 380
- Dimension(L*W*H):
- 1700x800x2380
- Power (kW):
- 2.2
- Weight (KG):
- 1200 KG
- Warranty:
- 2 years
- Key Selling Points:
- Multifunctional
- Showroom Location:
- Egypt, Canada, Italy, Malaysia
- Applicable Industries:
- Manufacturing Plant, Machinery Repair Shops, Be common
- Marketing Type:
- Radial drilling machine
- Machinery Test Report:
- Not Available
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 2 years
- Core Components:
- Bearing, Pump, Gear
- Drilling diameter range:
- 40
- Item No.:
- Z3040
- Inventory:
- no
- Product Type:
- Brand new
- Specifications:
- Z3040 Machine
- Spindle speed range:
- other
- form of control:
- Labour
- Number of shafts:
- other
- Layout form:
- Vertical type
- Scope of application:
- Be common
