Z3063 radial arm drilling machine
stars, based on 0reviews

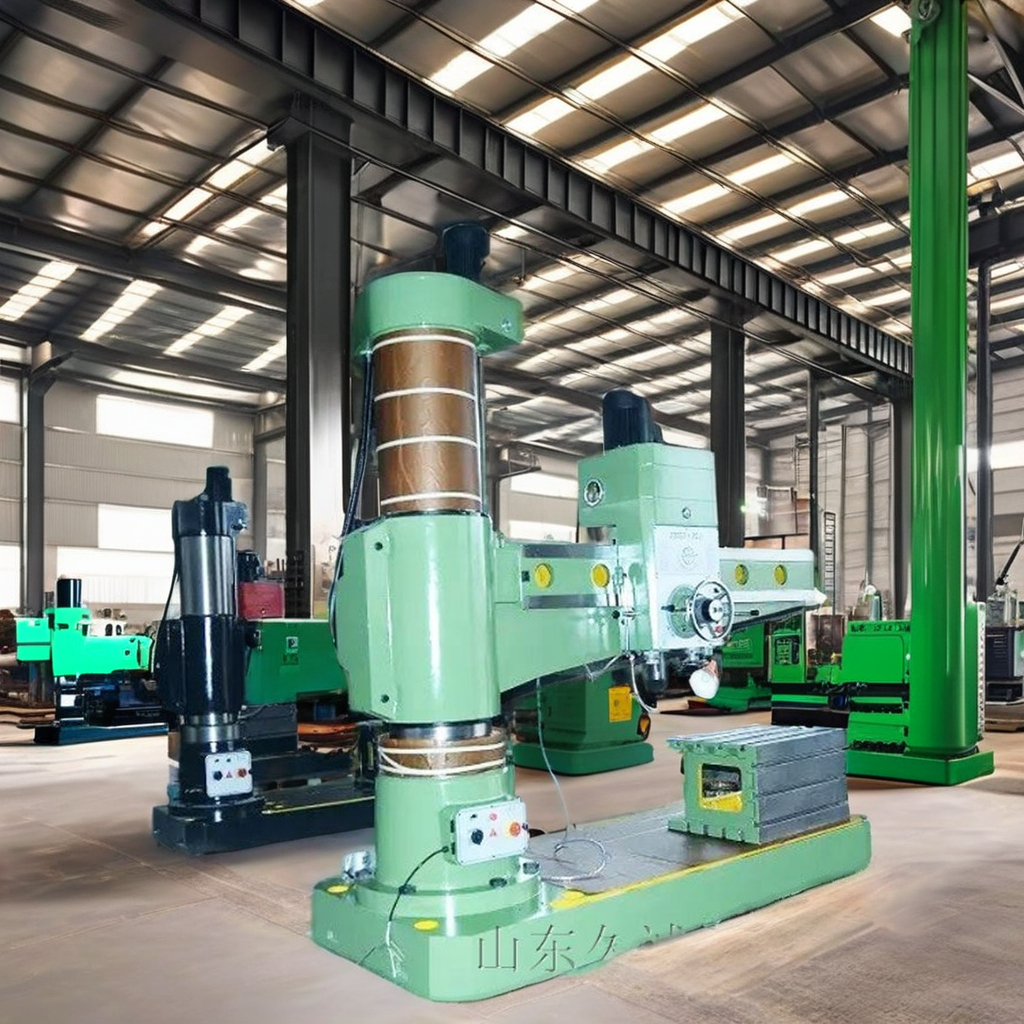

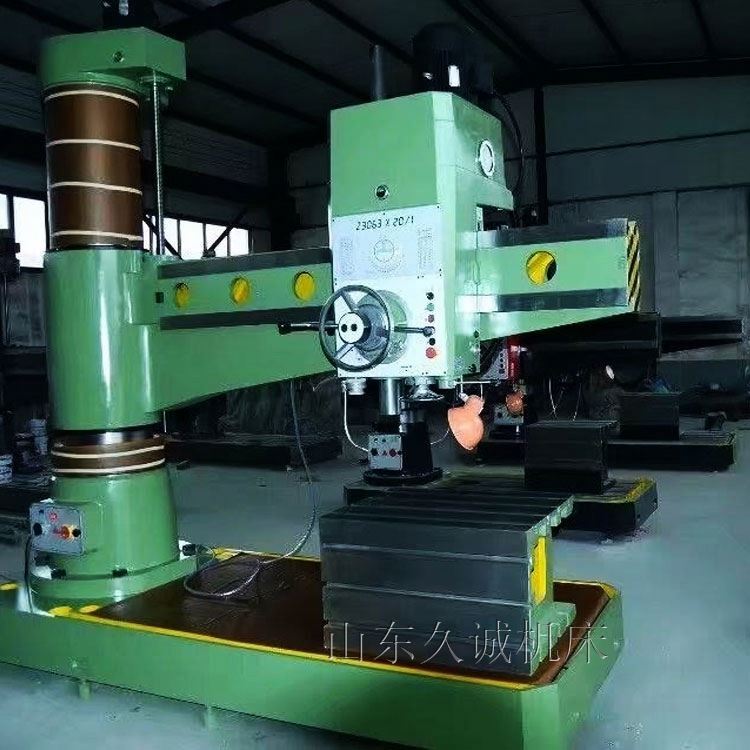

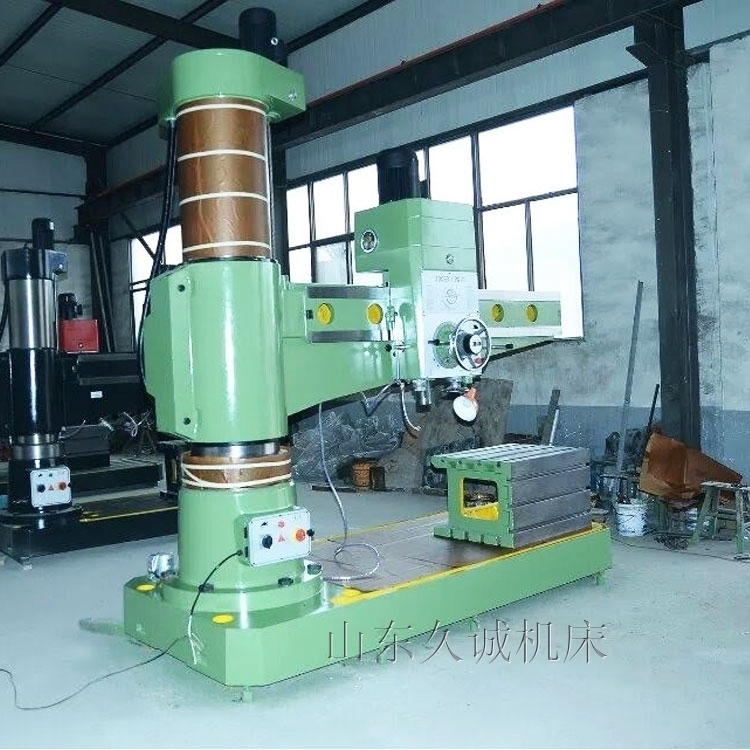

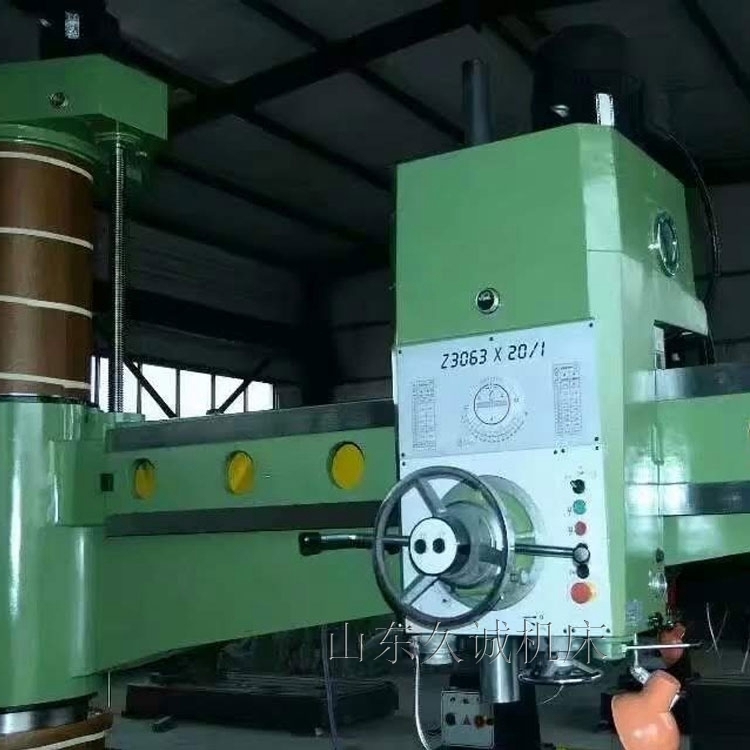

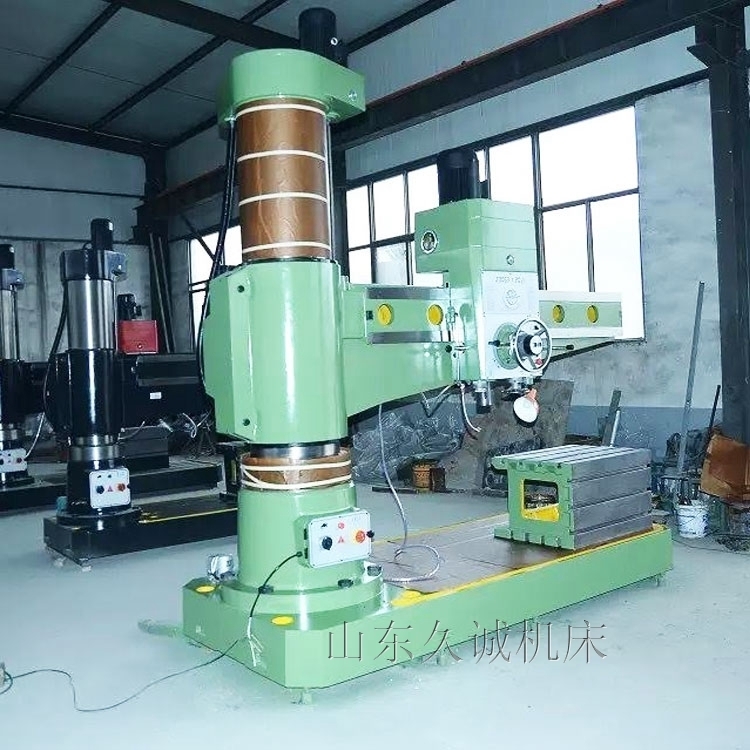

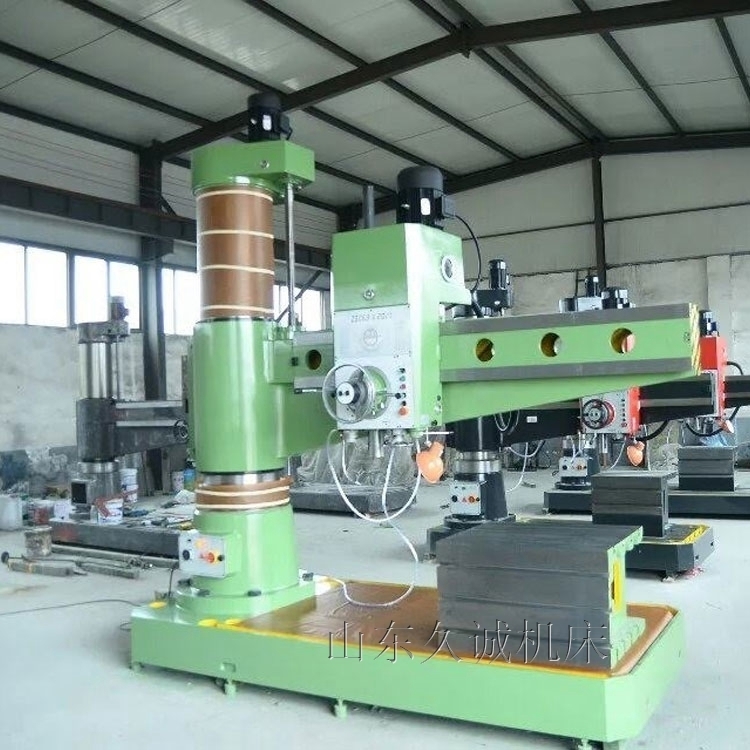

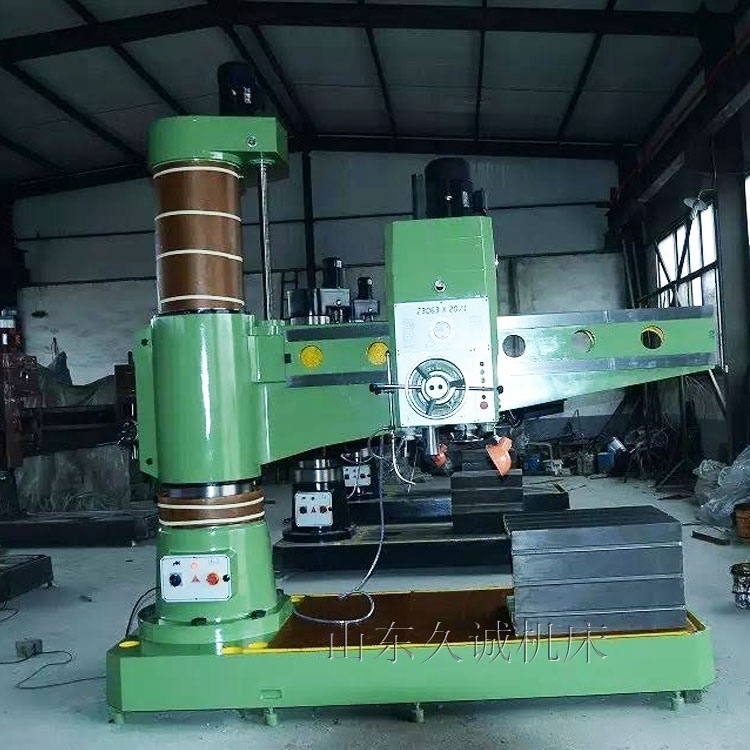

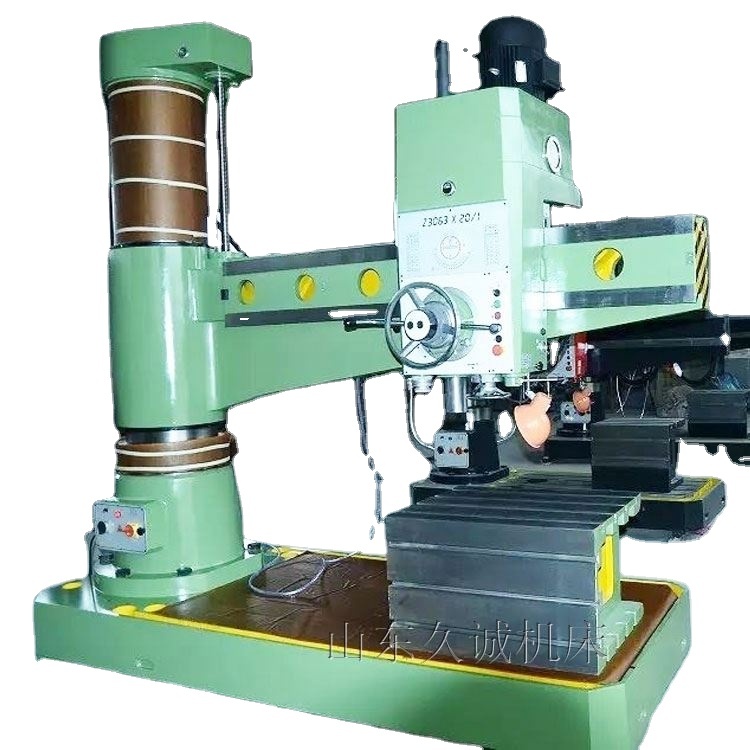

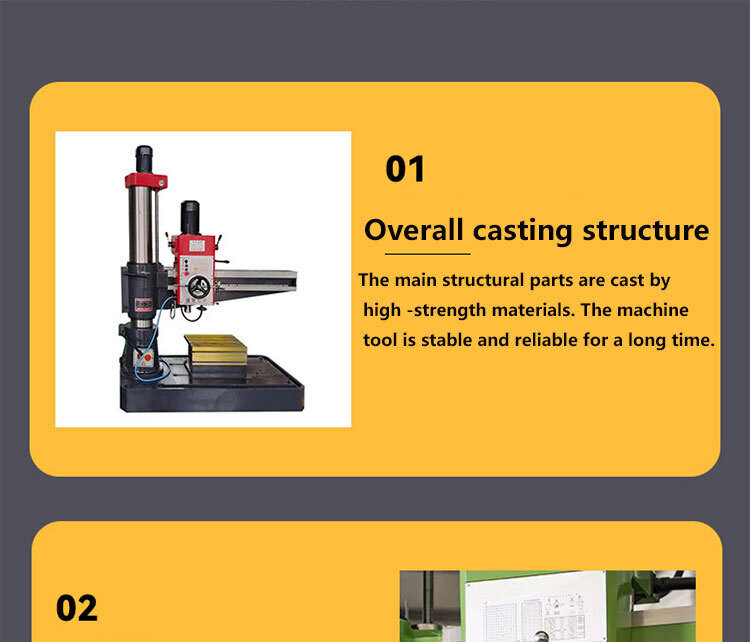

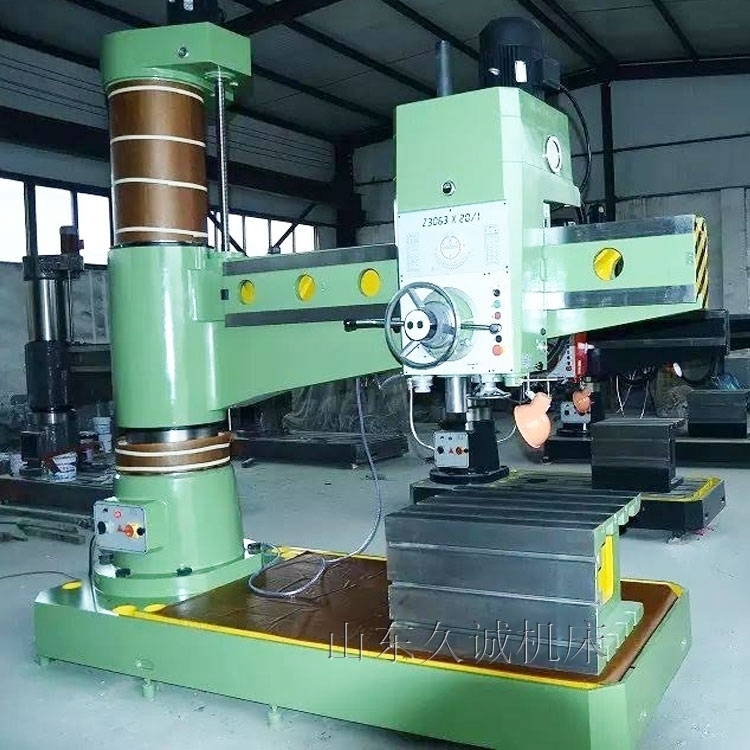

Z3063 radial arm drilling machine Photography
Z3063 radial arm drilling machine Detailed introduction

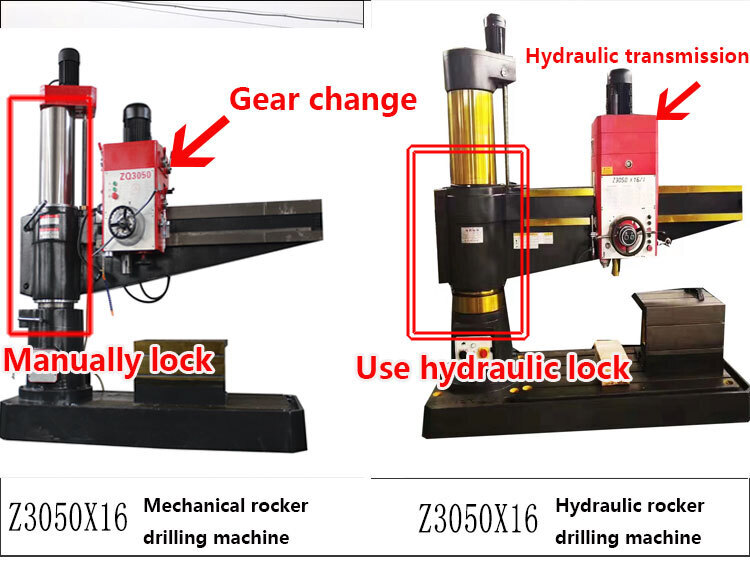

1.The use of hydraulic selection of transmission mechanism, can save the auxiliary time.
2. Spindle positive, parking (brake), transmission, free action, controlled by a handle, convenient operation.

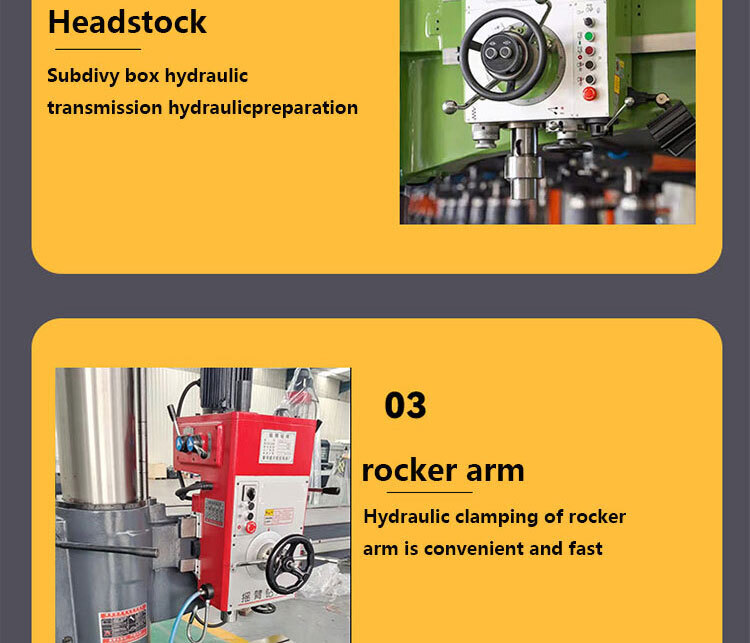

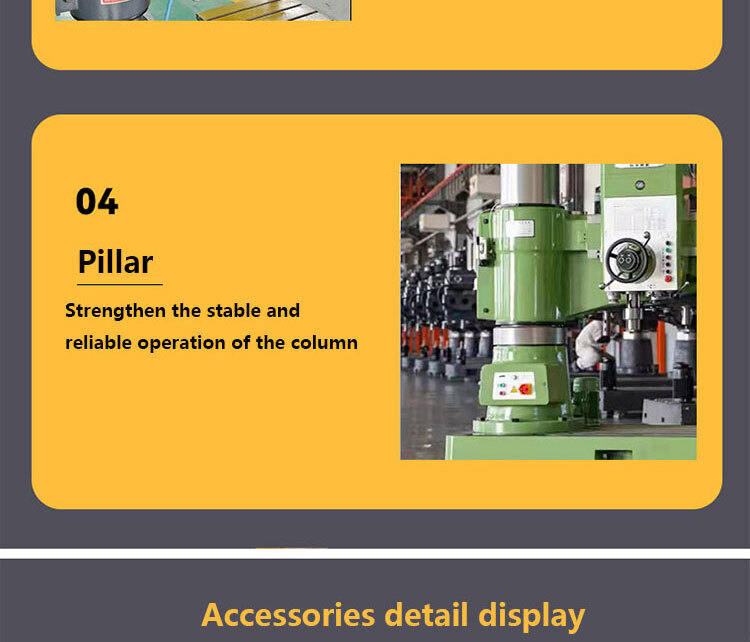

3. The spindle box, rocker arm, internal and external column using the hydraulic driven diamond block clamping mechanism, clamping
reliable.
4. The rocker rail, cylindrical surface, spindle, spindle sleeve and internal and external cylindrical rotary roller, and other
places were carried out quenching treatment, can be long-term stability of machine tool accuracy, extended service life.
5. Has the perfect safety protection device and the external column protection.
6. In the structural design and manufacturing process, also adopted a series of effective measures, so that the accuracy of
machine tools and the life of the whole machine are extended.
2. Spindle positive, parking (brake), transmission, free action, controlled by a handle, convenient operation.
3. The spindle box, rocker arm, internal and external column using the hydraulic driven diamond block clamping mechanism, clamping
reliable.
4. The rocker rail, cylindrical surface, spindle, spindle sleeve and internal and external cylindrical rotary roller, and other
places were carried out quenching treatment, can be long-term stability of machine tool accuracy, extended service life.
5. Has the perfect safety protection device and the external column protection.
6. In the structural design and manufacturing process, also adopted a series of effective measures, so that the accuracy of
machine tools and the life of the whole machine are extended.
Z3063 radial arm drilling machine Technical parameters
| specifications | Units | Z3063*20 |
| Max. drilling diameter | mm | Φ63 |
| Distance between spindle axis and column surface(Max) | mm | 2000 |
| Distance between spindle axis and column surface(Min) | mm | 450 |
| Distance form spindle nose to table surface(Max) | mm | 1600 |
| Distance form spindle nose to table surface(Min) | mm | 400 |
| Spindle travel | mm | 400 |
| Spindle taper | Morse No. 5 | |
| Spindle speeds ranger | r/min | 20-1600 |
| Spindle feeding ranger | mm/r | 0.04-3.2 |

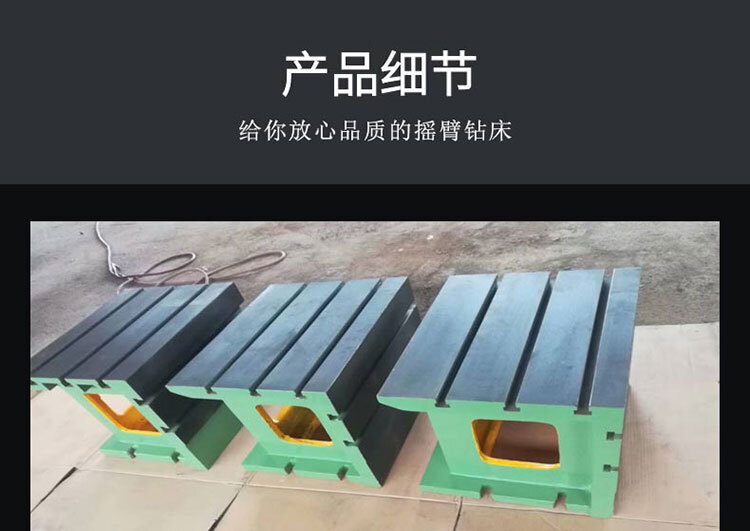

| Table size | mm | 630×800 |
| Main motor power | kW | 5.5 |
| Overall dimension (L*W*H)) | mm | 3080×1250×3205 |
| N/W | kg | 6500 |
- Condition:
- New
- type:
- Radial Drilling Machine
- Max. Drilling Dia. (mm):
- 63 mm
- Range of Spindle Speed(r.p.m):
- 25 - 2000 r.p.m
- CNC or Not:
- Normal
- Drilling Speed:
- 20-1600
- Place of Origin:
- Shandong, China
- Brand Name:
- JIUCHENG
- Model Number:
- Z3063x20
- Voltage:
- 380V
- Dimension(L*W*H):
- 3080*1250*3205mm
- Power (kW):
- 1.5/2.2kw
- Weight (KG):
- 6500 KG
- Warranty:
- 13months
- Key Selling Points:
- Competitive Price
- Showroom Location:
- India, UAE
- Applicable Industries:
- Manufacturing Plant, Machinery Repair Shops, Radial drilling machine z3063 big drilling machine
- Marketing Type:
- New Product 2020
- Machinery Test Report:
- Provided
- Video outgoing-inspection:
- Provided
- Warranty of core components:
- 1 Year
- Core Components:
- Pump, Gear
- Spindle travel:
- 400mm
- Product name:
- Radial drilling machine z3063 big drilling machine
- model:
- Z3063x20
- Max. drilling diameter:
- 63
- distance spindle to column:
- 2000
- Weight:
- 6500
- Local Service Location:
- UAE
- Certification:
- CE ISO
