ZQ3040 radial arm drilling machine

jiucheng ZQ3040 radial arm drilling machine China High speed drill

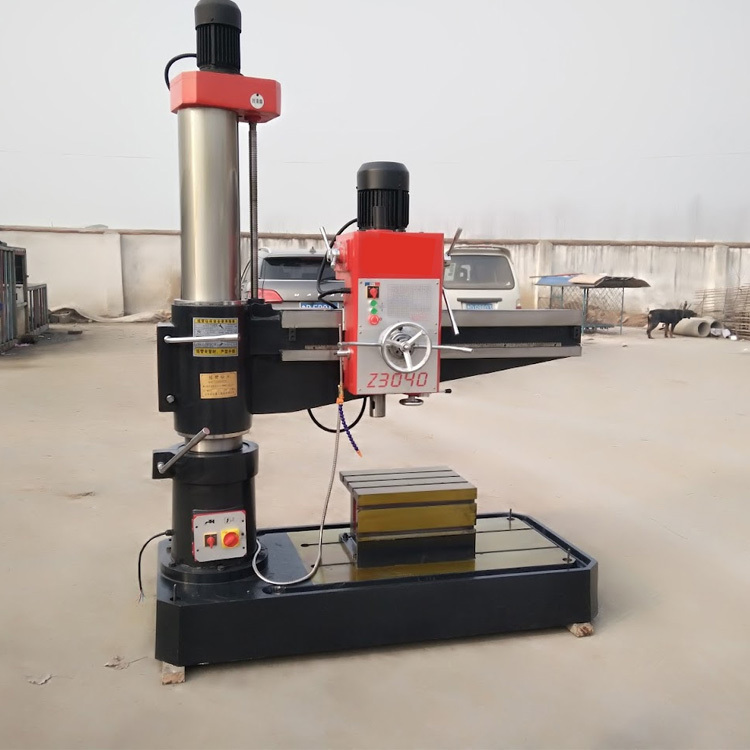

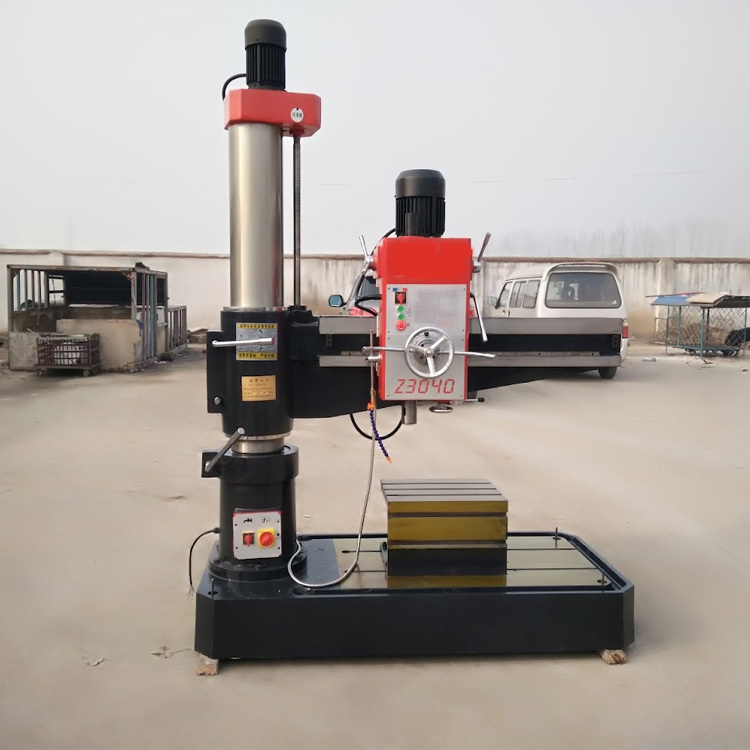

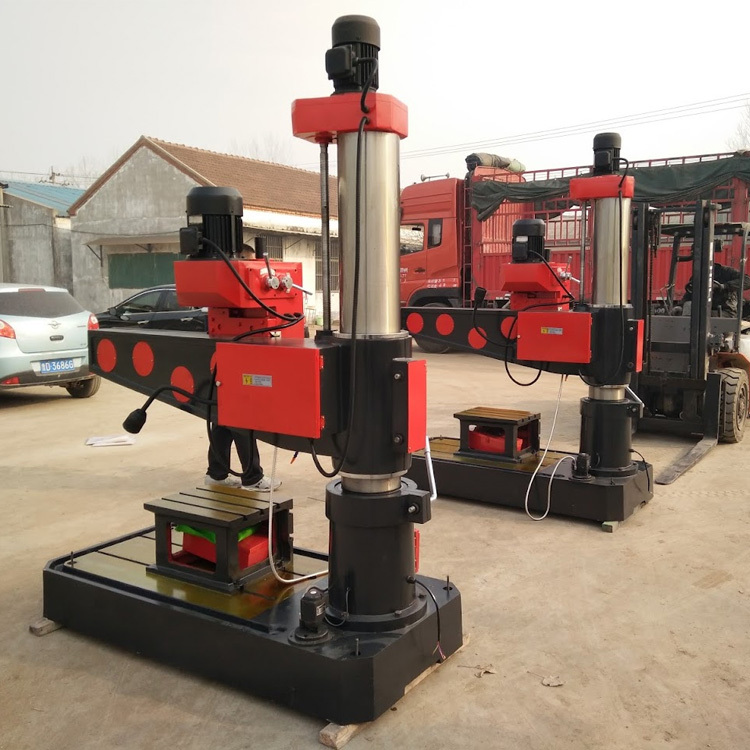

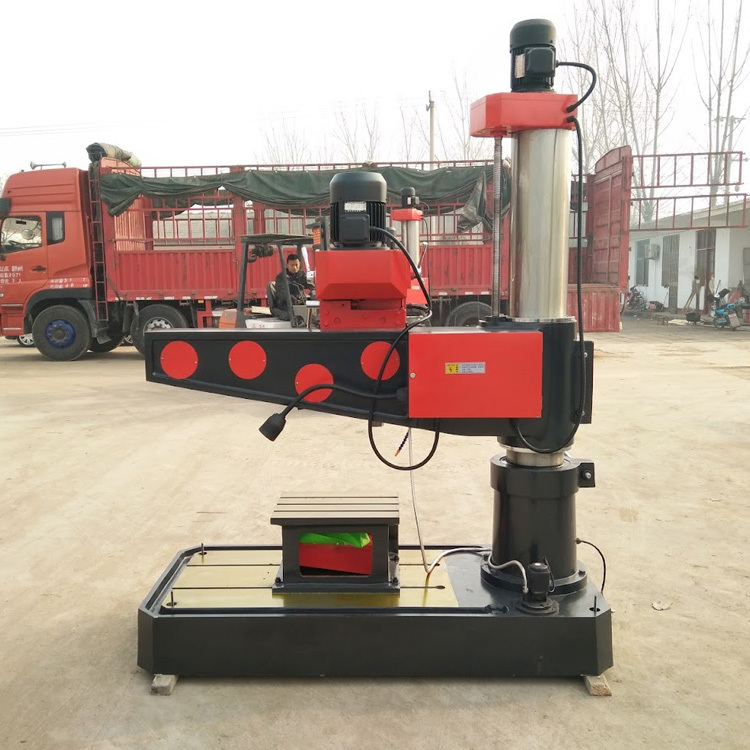

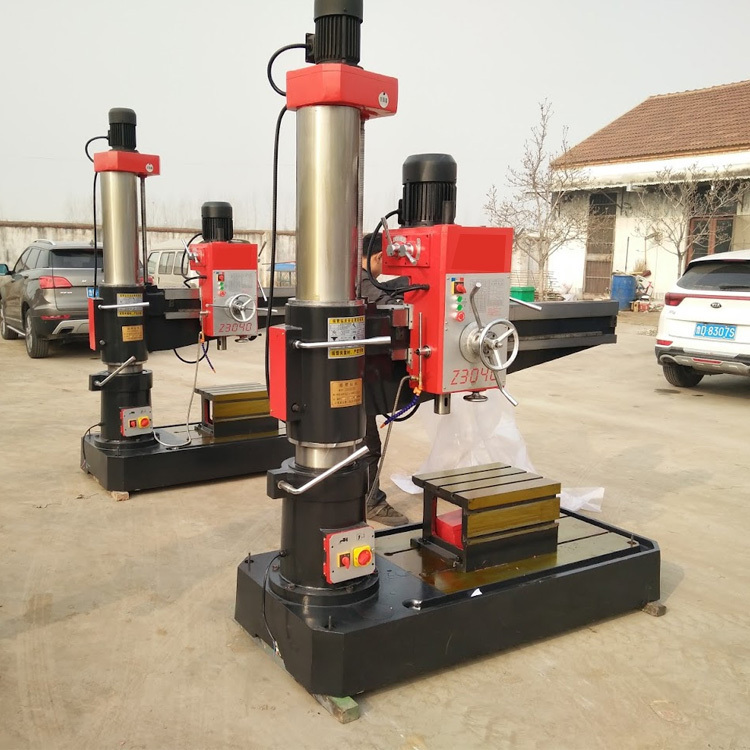

ZQ3040 radial arm drilling machine is a widely used machine tool equipment in the machinery industry for drilling, reaming, boring, tapping and other mechanical processing. It has the functions of spindle motorized feeding, cross arm motorized lifting, circulating water cooling and overload protection. The machine tool has good rigidity, low noise, simple operation, easy maintenance, and is a multi-purpose machine tool with good quality and low price.

Features of ZQ3040 radial arm drilling machine:

1. The guide rail is high-frequency quenched to ensure the durability of the machine tool precision, reliable structure and excellent manufacturing.

2. The spindle has 6 speed changes, and a lower drilling speed can be selected according to customer needs. The spindle automatically feeds and has high production efficiency.

3. The feed transmission of the radial drilling machine Z3040×10 is equipped with a steel ball safety clutch. When the spindle feed resistance exceeds the specified value, the steel ball clutch slips.

4. The rocker arm is electrically lifted and equipped with a steel ball safety device.

5. The advantages of the drilling machine are integrated. This increases the processing range of the drilling machine, such as boring, tapping, threading, plane, drilling, twisting, reaming and other functions.

6. The radial drilling machine Z3040×10 has double insurance for feeding machinery and electrical appliances, which is safe. Avoid misoperation.

7. The appearance is beautiful and generous, and the overall layout is symmetrical and coordinated. It is widely used in large, medium and small enterprises, townships and individual industries

ZQ3040 radial arm drilling machine Mechanical processing.

8. The main motor can be installed with a 2.2/1.5 dual-speed motor according to customer requirements. The speed is 12 levels of 35-1220 rpm, can tap, and the speed change handle is controlled by an operating lever.

9. The spindle stroke of the radial drilling machine Z3040×10 can be increased to 280mm, and the oil pump at the spindle turbine is mechanically lubricated. The radial drilling machine Z3040×10 adopts automatic feed, automatic lifting, mechanical speed change, mechanical clamping, mechanical transmission and other characteristics. IV. Operating procedures of ZQ3040 radial arm drilling machine:

1. The operator must be familiar with the operating sequence and performance of the radial drilling machine Z3040×10, and it is strictly forbidden to use the equipment beyond its performance.

2. The operator must be trained, tested or qualified before taking up the post with a certificate.

3. Before starting the machine, fill the machine with oil according to the equipment lubrication chart and check whether each handle is placed in the specified position. Press the main start button to start the oil pump motor.

4. Press the release button of the spindle box and the column, press the rocker arm lifting button, and move the spindle or turn the rocker arm.

5. Select the low speed gear, adjust the feed amount, and try automatic feeding after idling for 10 minutes.

6. Feed back, main motor stops, press the total stop button.

7. Turn off the main electric control switch of radial drilling machine Z3040×10, and turn off the air switch of electric control cabinet.

8. Clean the machine tool, fill oil according to the equipment lubrication chart, and oil the column and rocker arm.

V. Safety operating procedures of radial drilling machine Z3040×10:

1. During processing, it is strictly forbidden to wear gloves, the workpiece should be clamped firmly, and small pieces should be drilled with flat-nose pliers or tool clamps. It is not allowed to hold the drill with hands.

2. When drilling holes, hands are not allowed to touch, turn over, clamp or measure.

3. No one is allowed to stand in the swing range of the horizontal arm of radial drilling machine Z3040×10, and the horizontal arm should be clamped.

4. No debris or obstacles are allowed under the horizontal arm or on the workbench.

5. When using automatic tool feeding, the limit block should be adjusted properly. Do not use excessive force when feeding manually.

6. When there are long iron filings on the drill bit, stop the machine and use an iron hook to remove them. Do not blow them with wind or pull them by hand.

Z3040×10 radial drilling machine is mainly composed of a base, an inner column, an outer column, a rocker arm, a spindle box and a workbench. .

ZQ3040 radial arm drilling machine Detailed introduction

1. Double column design makes the rocker arm lighter and more convenient! Work efficiency is greatly improved

2. The control system is concentrated on the headstock, and the speed change is flexible, convenient and

3. The feed mechanical and electrical appliances are double-insured, safe. avoid misuse

4. The basic large parts are molded and casted with high-quality materials. After aging treatment, they are processed with high-precision machine tools with extremely high precision.

5. The surface of each guide rail is hardened, and the main shaft is nitrided to prolong the service life.

6. The forward and reverse of the spindle is controlled by the handle, which makes drilling and tapping more convenient and quick!

7. The arm length is 1.3 meters, the processing range is larger and more convenient

8. The rocker guide rail is widened and the stability is better

9. Feed turbine automatic lubrication
