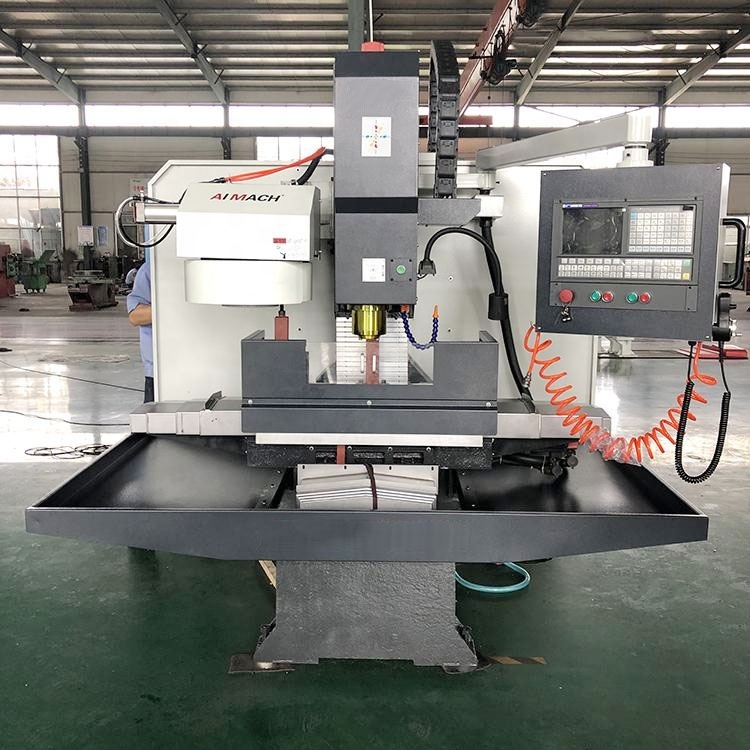

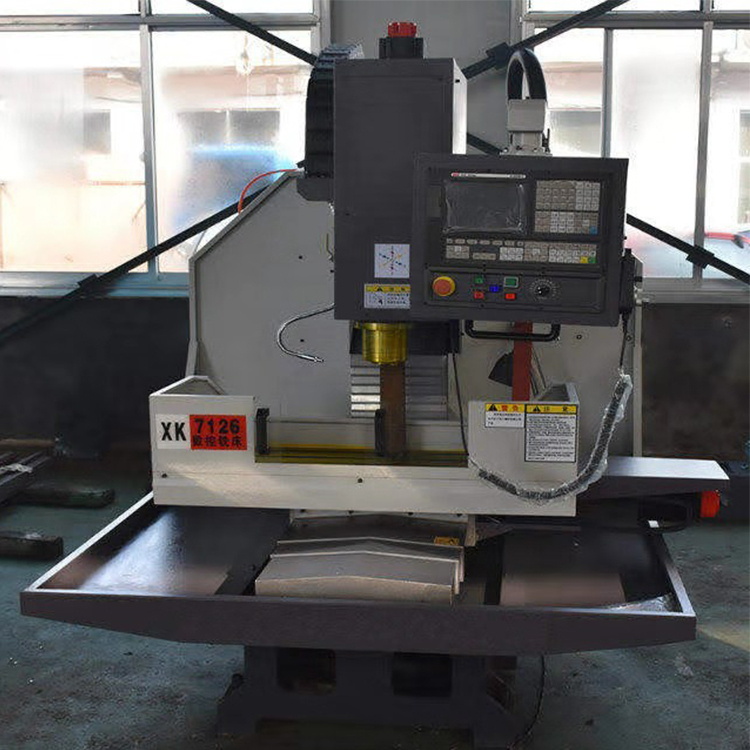

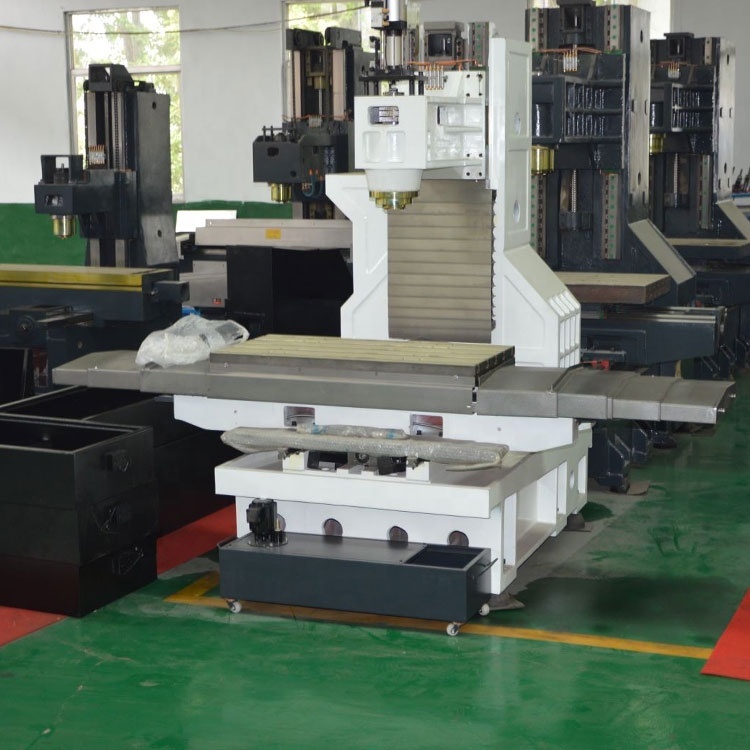

xk7126 mini cnc milling

stars, based on 0reviews

Table size

Product Tag:

1. Production introduce and use

xk7126 mini cnc milling the overall rational layout is compact, stable performance and reliable quality, which can realize the X, Y, Z three-axis linkage, widely used in mechanical processing of aerospace, mould, automobile, internal combustion engines, textile machinery industries.

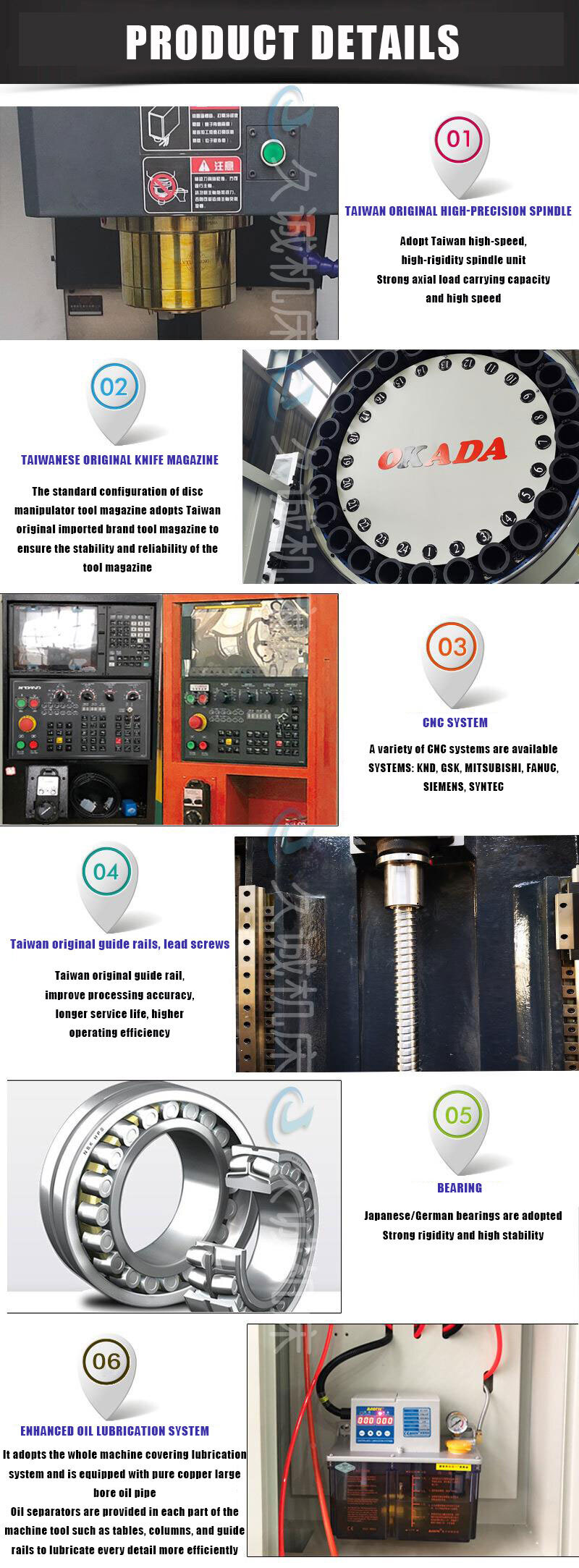

2. Main structure characteristic

X, Y, Z adopts linear guide, made by Taiwan, greatly improve the machining accuracy and efficiency of the machine.Three-way feed adopts large pitch, high-precision ball screw, three-axis servo motor and ball screw adopt direct connection form, adopt imported non-clearance elastic coupling, drive no clearance, small inertia, high transmission rigid, to ensure the positioning accuracy of the machine;The ball screw support adopts pre-tensile structure, which greatly reduces the influence of thermal deformation on the accuracy of the machine during the long running time.

xk7126 mini cnc milling STANDARD ACCESSORIES:

KND-1000MI
X/Y/Z AXES SIEMENS SERVO MOTOR&DRIVER
SERVO SPINDLE MOTOR&DRIVER
10T FUNNEL TYPE TOOL MAGAZINE
FULL CLOSED COVER
xk7126 mini cnc milling OPTIONAL ACCESSORIES
SIEMENS 808D BASIC/828D CNC CONTROLLER
16T DISC TYPE TOOL MAGAZINE
WITHOUT TOOL MAGAZINE(CNC MILLING)
BOX GUIDEWAY OR LINEAR GUIDEWAY
4TH AXES(NC DIVIDING HEAD)

3. Standard configuration of xk7126 mini cnc milling

items	remark
1	Cnc controller:	FANUC OI MF(5)
2	Main motor:	Servo 3.7KW3.7KW
3	Feeding motor:	3 axis Servo motor BIS8.
4	Spindle:	Taiwan 8000rpm 8000rpm.
5	Magazine tool:	Domestic brand umbrella type 12T/Taiwan cylinder (XK7126 without magazine tool)
6	Linear guide	Taiwan/
7	Ball screw	domestic
8	bearings	domestic
9	Oil Pump	domestic
10	Water pump	domestic

	items	unit	value XH7126(XK7126 )
talbe	Table size	mm	800×260
	T-slot size T	mm	14×3×80
	Max.loading capacity of table	Kg	200
travel	Travel X,Y,Z	mm	450×320×420
	Spindle nose to work table	mm	90-510
	Spindle center to column guideway face	mm	330
feeding	Rapid moving of X,Y,Z	m/min	15,15,15
feeding	Feeding speed X,Y,Z	mm/min	1-6000
spindle	Spindle nose taper		BT40
	Spindle speed range	r/min	8000rpm
	Spindle power	kW	3.7
accuracy	Position accuracy of X/Y/Z	mm	±0.015
accuracy	Re-position accuracy	mm	±0.0075
magazine tool	Tools numbers	pcs	12(XK7126 without magazine tool)
	Max. weight of tools	Kg	8kg(XK7126 without magazine tool)
	Max. size of tools	mm	Φ130×300(XK7126 without magazine tool)
other	Overall dimension	mm	2200×1900×2200
other	weight	Kg	2400

Q: What is the minimum order quantity (MOQ)? A: MOQ is one set. (Only some low cost machines will be more than 1 set)

Q: How can I choose the most suitable machines? A:Please tell us your requirement of the machine, or you can also send us the products drawing, then we will give you the best solutions.

Q: What's the Payment Terms? A: 30% by T/T as deposit, 70% balance by T/T before delivery. As for other payment terms, we can discuss. Q: Where is your factory located? A: Our factory is located in Tengzhou, Shandong province, China. Q: What's the main products of your company? A: We specialized in many kinds of machines, such as CNC machining centers, CNC milling machines, CNC lathes, milling machines, lathe machines, drilling machines, sawing machines, etc.

Q: What is your market advantage? A: We provide not only machine tools, but one-stop solutions for machine tools. If there is any problem with the equipment, we can go abroad for after-sales service. Q: What is the package? Is it suitable for shipment? A: Machines will be packed by exporting standard package, with water proof, anti-rust and fumigation-free. It is very strong for oversea transportation.
